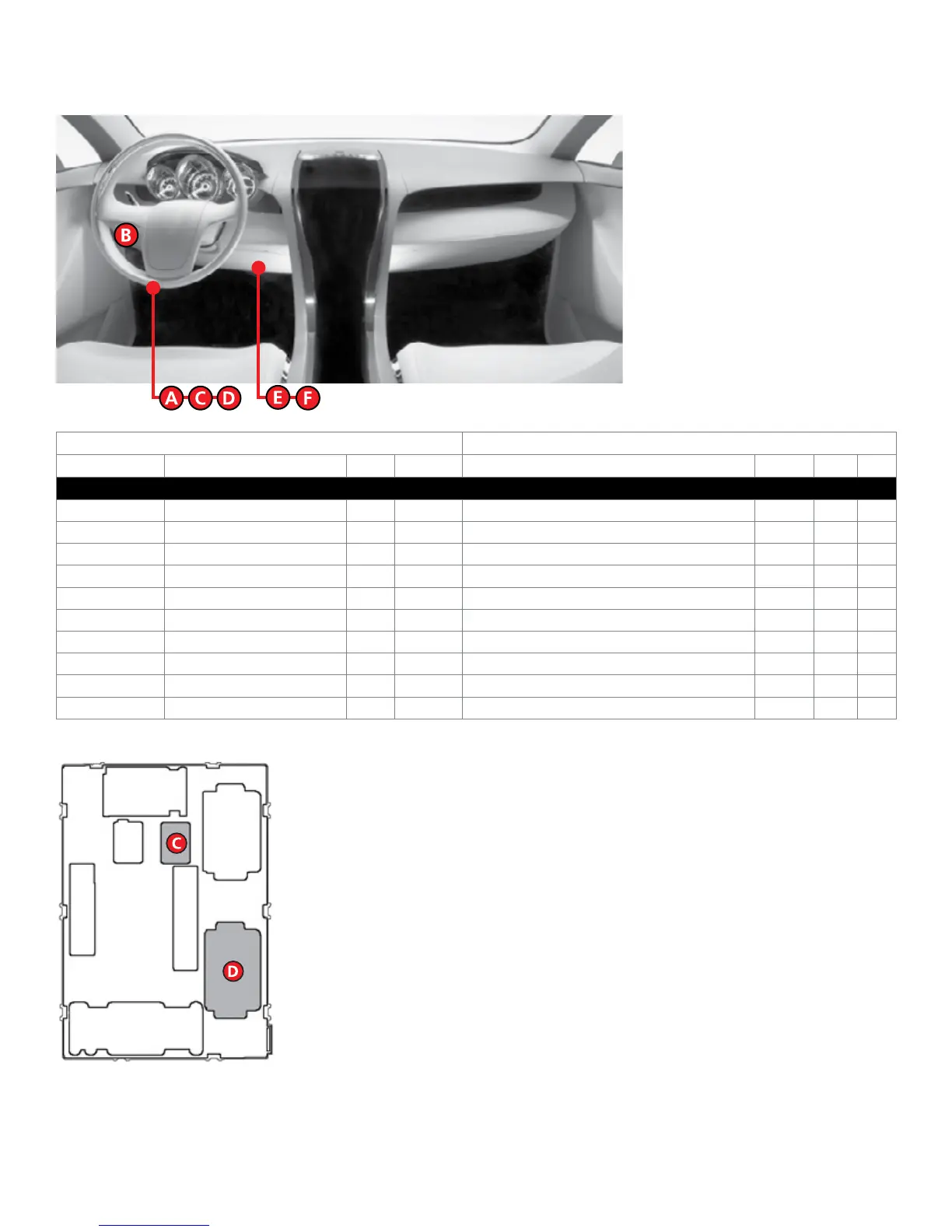

Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information Connector Information
Function Color Pin Polarity Location Color Pins Ref.
Jeep Renegade 2015-2016
HS CAN High Lt. Green 6 Data OBDII diagnostic connector. Black 16 A
HS CAN Low Brown 14 Data OBDII diagnostic connector. Black 16 A
MS CAN High Blue 3 Data OBDII diagnostic connector. Black 16 A
MS CAN Low White 11 Data OBDII diagnostic connector. Black 16 A
Parking Lights White/Orange 1 MUX Headlight Switch. Black 10 B
Door Locks White/Blue 14 MUX BCM / Dash Fusebox. Green 60 C
(+)12V Red A (+) BCM / Dash Fusebox. Gray 2 D
Accessory Gray 1 (+) Ignition Switch Connector. Black 3 E
Ignition Blue 2 (+) Ignition Switch Connector. Black 3 E
Starter Brown 3 (+) Ignition Switch Connector. Black 3 F
BCM
