372 SERVICING AND MAINTENANCE
Fuse Location
The fuses are grouped into a controller located
in the engine compartment.
Underhood Fuses
The Power Distribution Center (PDC) is located
in the engine compartment near the battery.
This center contains cartridge fuses, mini-fuses,
micro-fuses, circuit breakers and relays. A label
that identifies each component is printed on the
inside of the cover.
Before any procedure is done on the PDC, make
sure engine is turned off.
Remove the cover by unlatching the two locks
located at each side of the PDC cover, avoid the
usage of screw drivers or any other tool to
remove the cover, since they may apply
excessive force and result in a broken/
damaged part.
After service is done, secure the cover with its
two locks.

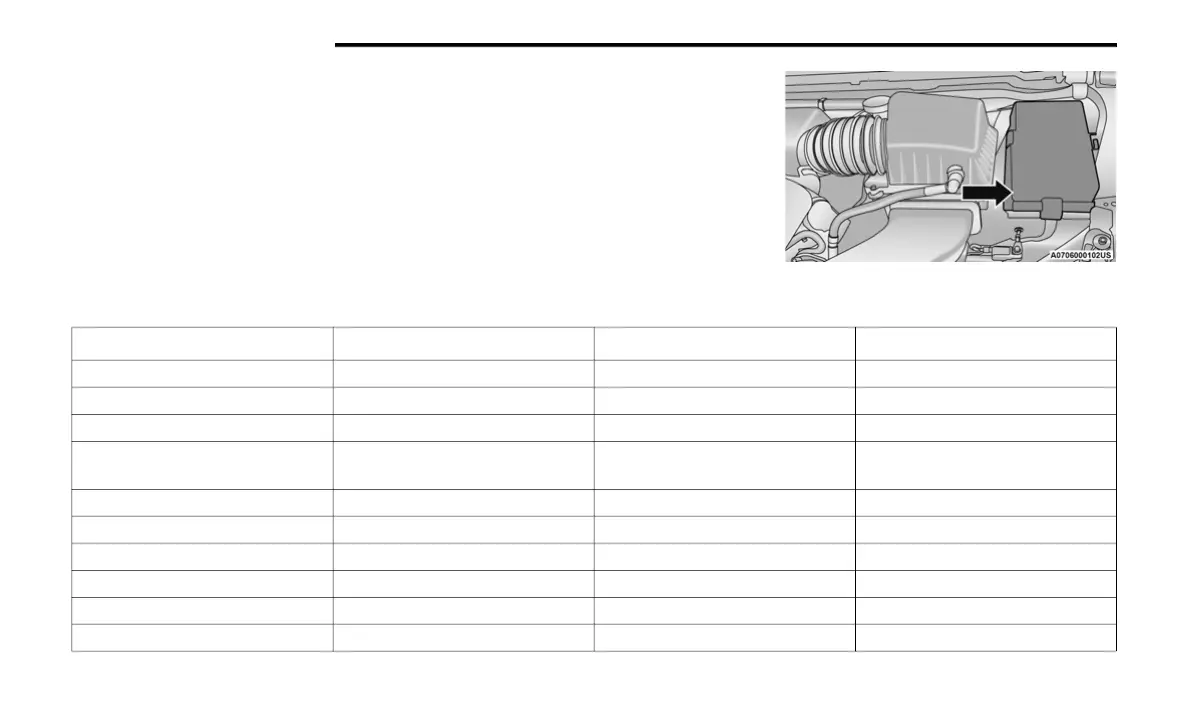

Power Distribution Center
Cavity Cartridge Fuse Blade Fuse Description
F06 – – Not Used
F07 – 25 Amp Clear Ignition Coil/Fuel Injector
F08 – – Not Used
F09 – 25 Amp Clear
Amplifier/Active Noise Control — If
Equipped
F10 – – Not Used
F11 – – Not Used
F12 – 5 Amp Tan Battery Sensor (IBS)
F13 – 10 Amp Red ECM (ESS Only)
F14 – 10 Amp Red ECM
F15 40 Amp Green – CBC Feed #3 (Power Locks)
