GETTING TO KNOW YOUR VEHICLE 17
NOTE:
The charging times below are estimates
based on charging a high voltage battery that
has a <1% State Of Charge (SOC) value
displayed in the instrument cluster.
Charging times will vary based on the age,
condition, state of charge, available current
being provided to the charger from its energy
source, and temperature of the high voltage
battery.
Charging times may be longer if a thermal
self-protection reduces the charging current
from the EVSE.
If the vehicle’s ignition is in either the ACC or
RUN position, the vehicle charge indicator
may not indicate greater than a 99% state of
charge, and will continue to charge the
vehicle, due to the vehicle loads.
VEHICLE CHARGE INDICATORS

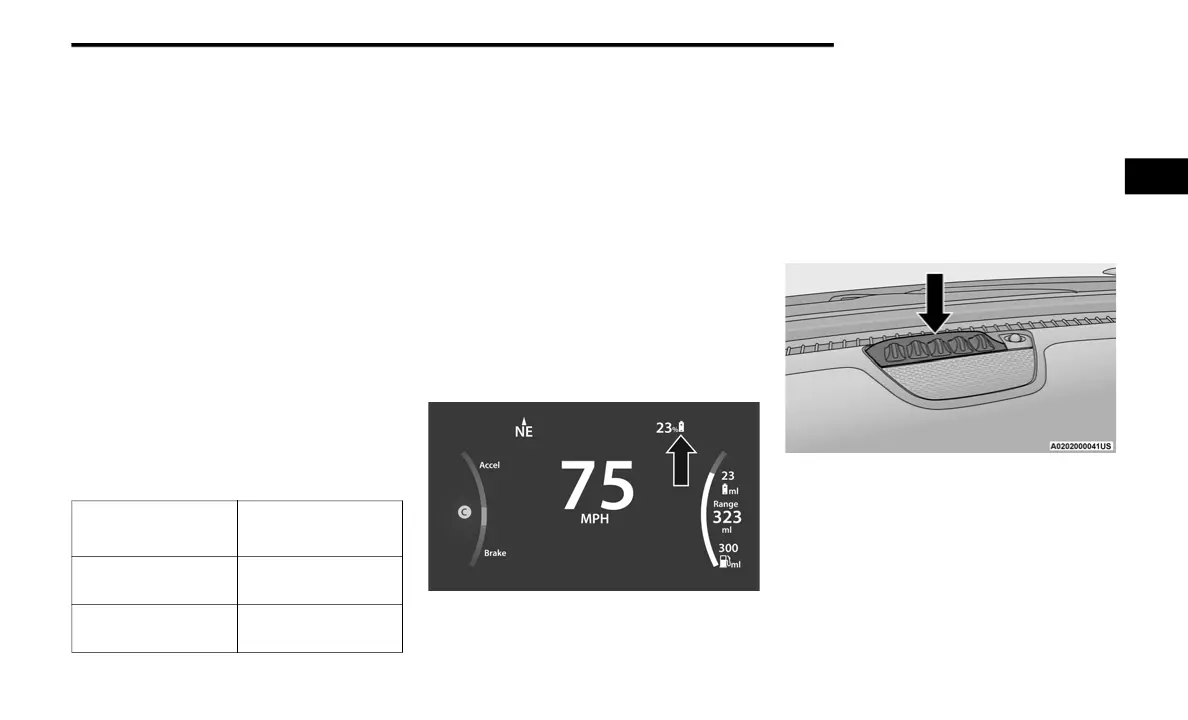

Instrument Cluster High Voltage Battery Display
There is a battery display indicator located on
the instrument cluster. The battery display will
indicate the current state of charge for the high
voltage battery; with the percentage value
located to the left of the symbol. When plugged
in, the battery symbol also shows the battery
level along with messages about the charge or
whether the system is waiting to charge due to
the charge schedule. These will appear unless
there is a charging fault. A green plug telltale will
be shown in the cluster, as well as applicable
messaging when charging.
High Voltage Battery Display
Instrument Panel State Of Charge Indicator
In addition to the battery display in the
instrument cluster, your vehicle is equipped
with a visual state of charge indicator. The state
of charge indicator is made up of five lights that
are mounted to the top center of the instrument
panel, which will illuminate when the vehicle is
plugged into the EVSE.
State Of Charge Indicator
The state of charge indicator provides a visual
indication of the high voltage battery’s charge
status during charging. It’s also used to indicate
a charging problem, as well as, waiting for a
scheduled charge to begin.
Type of EVSE
Estimated Charge
Time
Level 1 (120 V/15 A)
Approximately
14 hours
Level 2 (240 V/30 A
or 32 A)
Approximately
2 hours
2
