NOTE:
The lights scroll one at a time when the vehicle
is plugged in outside of its charging schedule
time/day of the week, and it is waiting on the
schedule to begin charging.
In extreme hot or cold environments, the lights
on the state of charge indicator may not illumi-
nate. Charge status is available in the cluster or
E.Hybrid app within the Uconnect system. In the
event of an error in the charging process, the
outer two lights will blink.
When the hood is open, the lights on the state
of charge indicator will not be illuminated, a
message will display in the instrument cluster.
NOTE:
For each segment illuminated to indicate
charging, two different blink rates are used. A
blink rate of 1 sec on/ 1 sec off indicates that
the first half of the segment is charging. The
blink rate will increase to 0.5 sec on/ 0.5 sec off
to indicate that the second half of the segment
is charging. When the segment is fully charged,
the blinking stops and the segment remains illu-
minated as charging continues.
E.HYBRID APP
Within the Uconnect system is the E.Hybrid app
that allows you to see your vehicle’s power flow,
understand your drive history, and set an EVSE
charging schedule for your vehicle’s high
voltage battery. To access this app, press the
“Apps” button on the main menu bar of the
radio’s touchscreen, and locate the E.Hybrid
app. Accessing the app brings you to a set of
five pages: Power Flow, Driving History,
Schedules, and Charge Setting.
E.Hybrid App Location
Number Of
Indicator Lights
Illuminated
Percent Of Battery
Charge
1st light blinks 0 – 20%
1st light on 2nd light
blinks
21 – 40%
1st and 2nd lights
on, 3rd light blinks
41 – 60%
1st, 2nd, and 3rd
lights on, 4th light
blinks
61 – 80%
1st, 2nd, 3rd, and
4th lights on, 5th
light blinks
81 – 99%
All 5 lights on 100%
Two outer lights are
blinking
Indicates an error in
the charging process
Lights turn on one at
a time from left to
right (when looking
at the front of the
vehicle)
Indicates system is
waiting for scheduled
time in charge
schedule to begin
charging
All lights turn on,
then immediately
turn off
Indicates a successful
plug-in
Number Of
Indicator Lights
Illuminated
Percent Of Battery
Charge

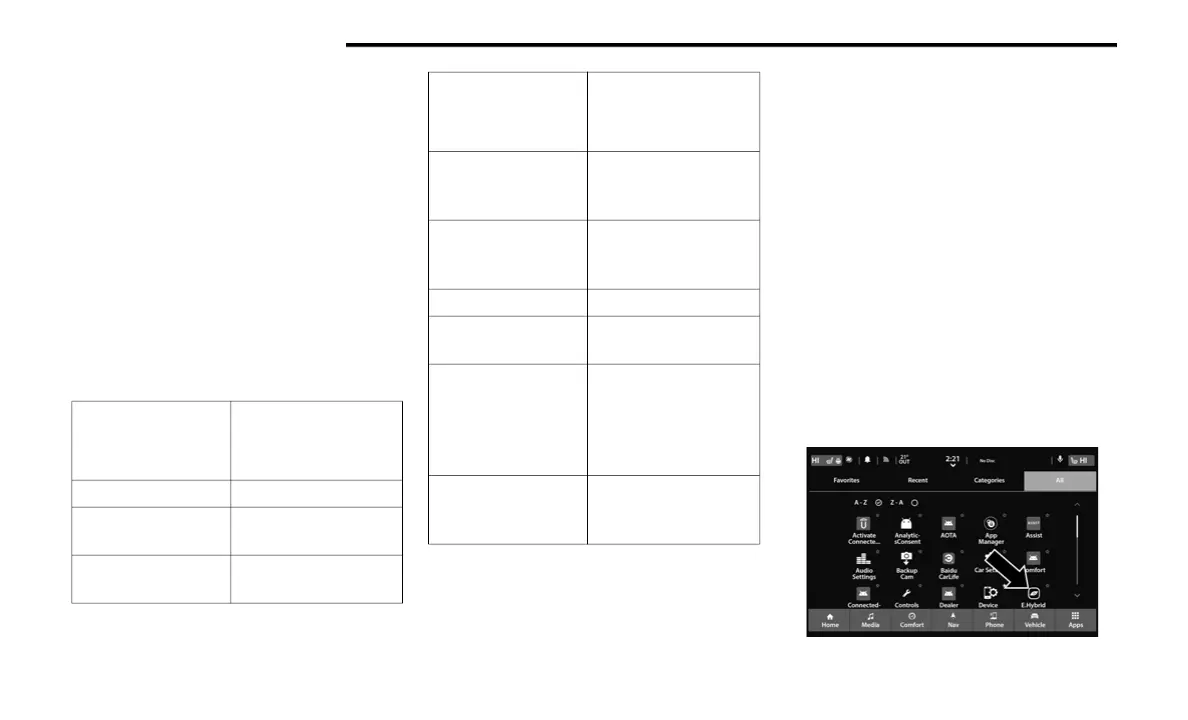

21_RU2_H_SU_EN_USC_t.book Page 18
