82 SERVICING AND MAINTENANCE
Underhood Fuses
The Power Distribution Center (PDC) is located
in the engine compartment near the driver’s
side hood hinge. This center contains cartridge
fuses, mini-fuses, micro-fuses, circuit breakers
and relays. A label that identifies each
component is printed on the inside of the cover.
Before any procedure is done on the PDC, make
sure the vehicle ignition mode is OFF.
Remove the cover by unlatching the two locks
located at each side of the PDC cover, avoid the
usage of screw drivers or any other tool to
remove the cover, since they may apply
excessive force and result on a broken/
damaged part.
After service is done, secure the cover with its
two locks.

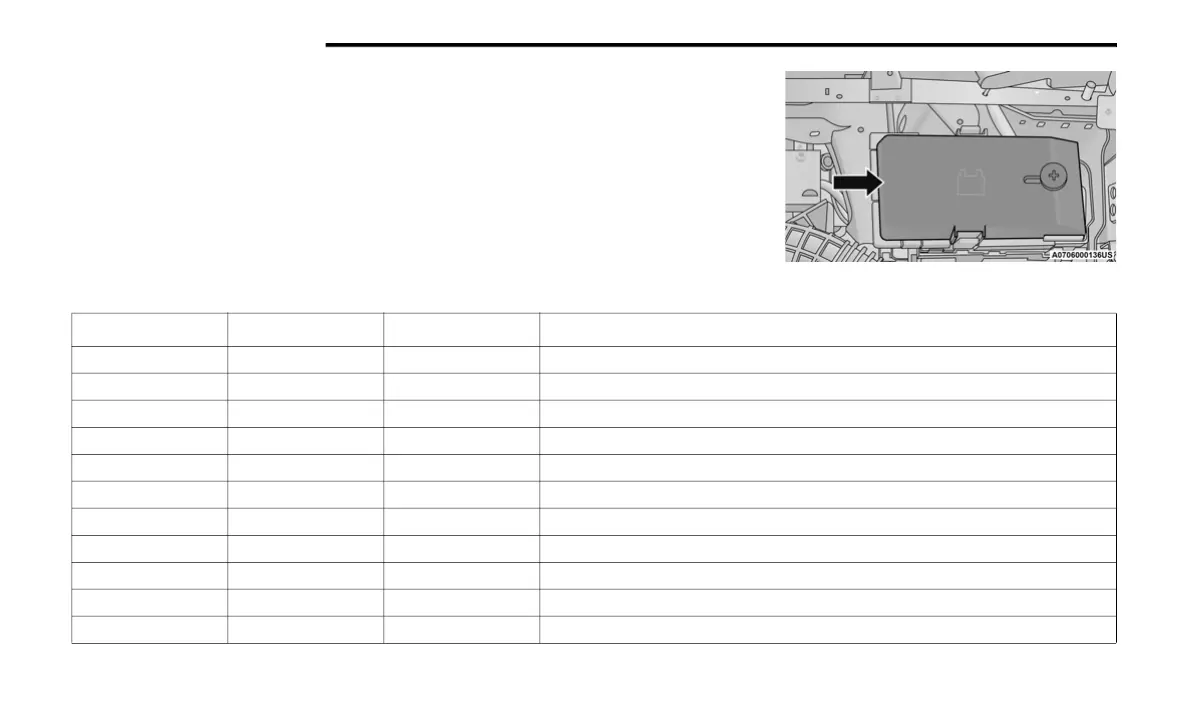

Power Distribution Center
Cavity Cartridge Fuse Blade Fuse Description
F01 70 Amp – Electric Pwr Steering
F02 150 Amp – Spare
F04 – – Batt/Pwr Invert MOD
F05 80 Amp – Rad Fan
F06 – 15 Amp Blue Low Temp Active Pump
F07 – 25 Amp Clear Ignition Coil/Fuel Injector
F08 – 25 Amp Clear Amplifier / Active Noise Control
F09 – – Not Used
F10 – 15 Amp Blue High Temp Aux Pump
F11 – 15 Amp Blue ELCM / FTIV
F12 – 5 Amp Tan Battery Sensor (IBS)
