Pet-immune PIR Motion Detector
The motion detector is designed for use on interior walls and is set to Home Mode
by default. Whenever the sensor detects movement (only while the alarm is armed),
a push notication including the sensor name will automatically be sent to the
registered users, and the hub’s internal siren will sound immediately.
2.5m

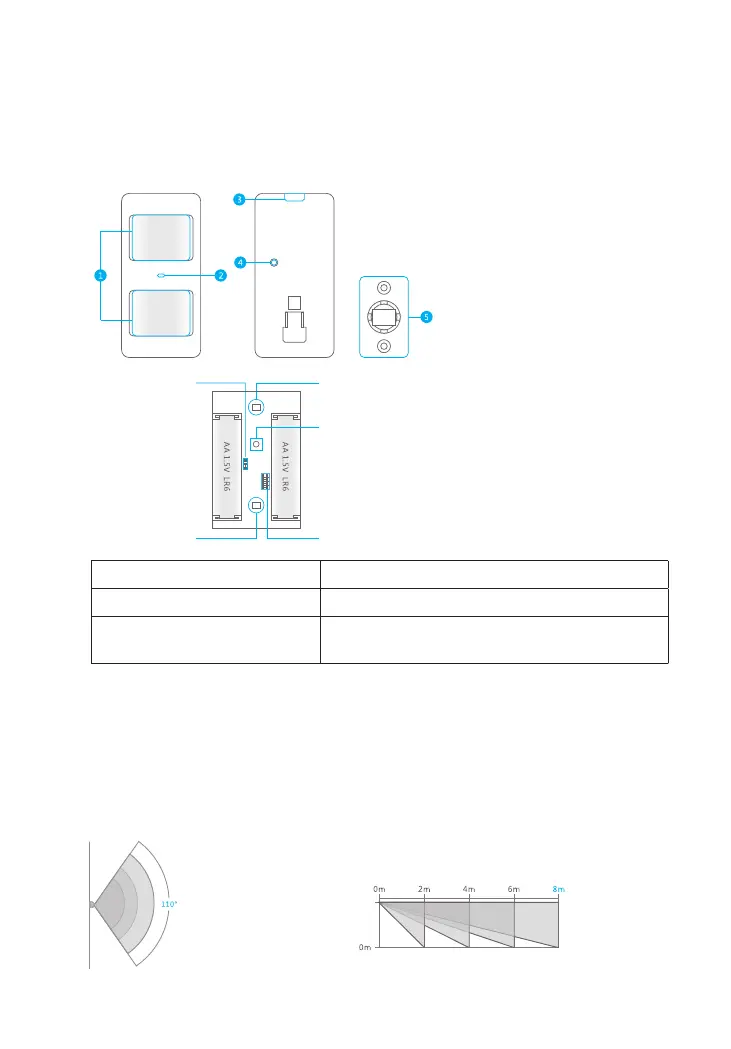

1. Detection Window
2. LED Indicator
3. Snap Joint
4. Test Button
5. Bracket
2.5m
Zone Setting
Infrared Sensor
Infrared Sensor
LED ON / OFF
Tamper Switch
Blinks continuously Motion detector is performing a self-test
Blinks once Motion detected
Blinks once every 3 seconds
Low battery indication, please change the battery
immediately
Tamper Switch
The tamper switch will trigger an alarm notication if an unauthorized attempt is
made to remove the cover of the detector from its housing.
Detection Area
2.5m
Top View
Side View
