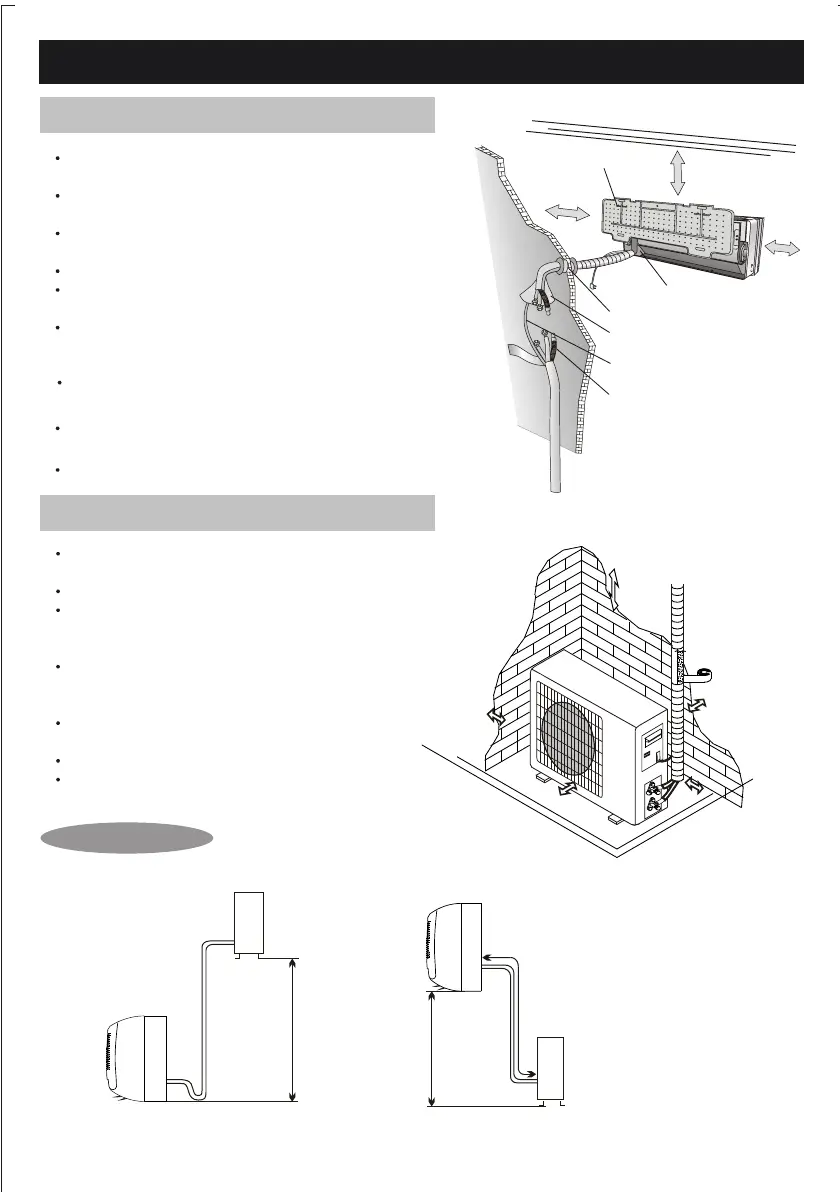

INSTALLATION MANUAL---Selecting the Installation Place
Install the indoor unit level on a strong wall that is not
subject to vibrations.
The inlet and outlet ports should not be obstructed:the
air should be able to ow to the entire area.
Do not install the unit near a heat source , steam,or
any ammable source.
Install the unit near an electric socket or dedicated circuit.
Do not install the unit where it will be exposed to
direct sunlight.
Install the unit where connection between indoor and
outdoor unit is easily accessible, and has the shortest distance
between the two.
Install the unit where it is easy to drain the condensed
water.
Check the machine operation regularly and leave the
necessary spaces as shown in the picture.
Install the indoor unit where the lter can be easily
accessible.
condensed water drain pipe
150
150
150
Sleeve
insulating covering
electrical cable
Mounting plate
Do not install the outdoor unit near sources of heat,
steam or any ammable source.
Do not install the unit in windy or dusty places.
Do not install the unit in public thourofare. Select
a place where the air discharge and operating sound
level will not disturb others.
Avoid installing the unit where it will be exposed
to direct sunlight.
Leave the minimum access distances as shown in the
picture for the air to circulate freely.
Install the outdoor unit in a safe and solid place.
If the outdoor unit is subject to vibration, x rubber
mounts onto it.
water drain pipe
300
500
2000
300
minimum space to be left (mm) showing
in the picture
500
Outdoor unit
Indoor unit
Pipe length is
15 meters M ax.
be less than 5m
Height should
Outdoor unit
Indoor unit
Pipe length is
15 meters M ax.
be less than 5m
Height should
I nstallation D iagr am
15
INDOOR UNIT
OUTDOOR UNIT
Only persons and/or
companies qualied
and experienced in the
installation, service
and repair of
refrigerant products
should be permitted to
do so. The purchaser
must ensure that the
person and/or
company who is to
install, service or repair
this air consitioner is
properly qualied to
perform isntallation,
maintenance and
service.
