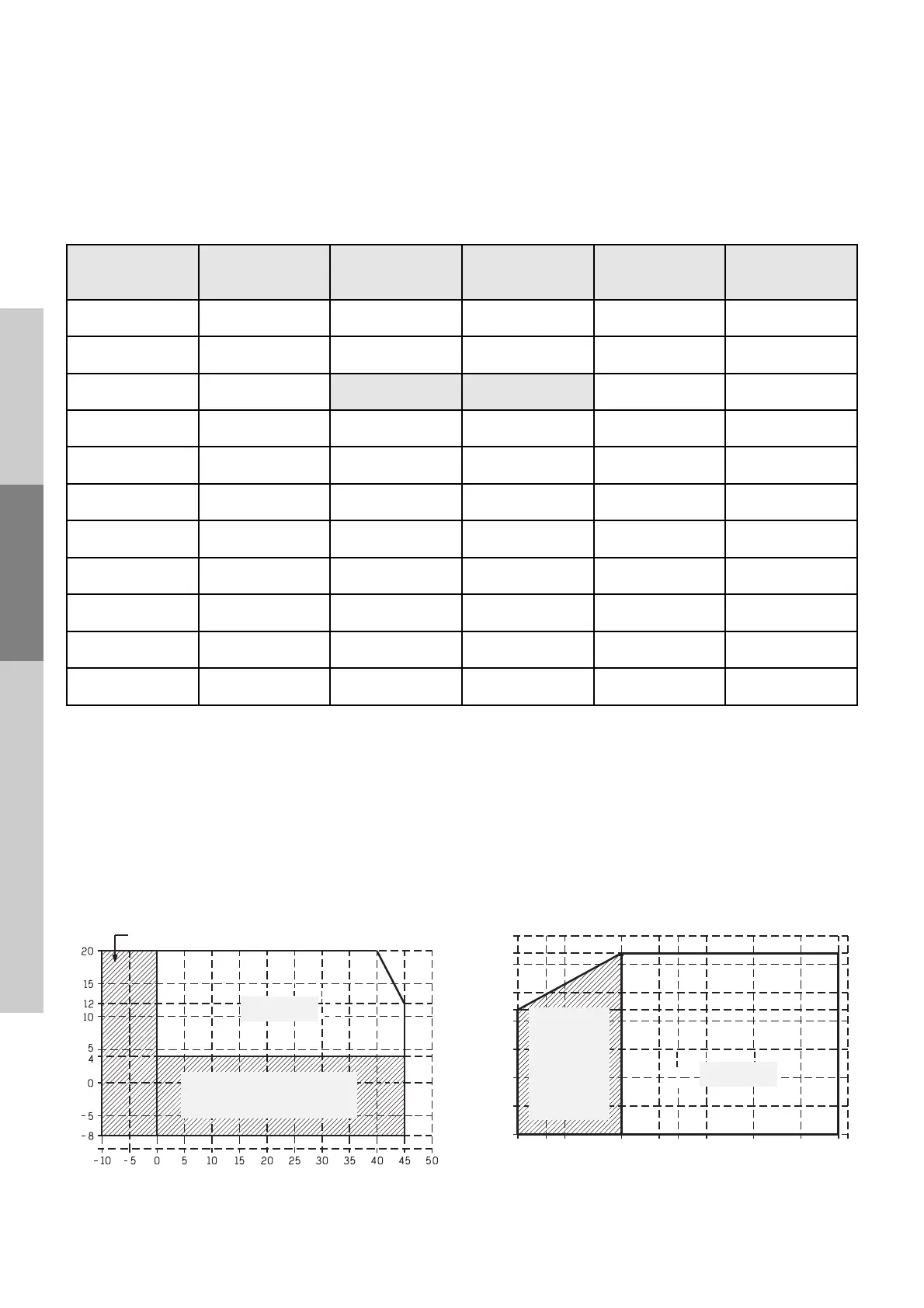

6.3 Acknowledging faults
After diagnosing and eliminating the cause of a fault, acknowledge it by pressing OK on the terminal for 3 seconds with the dial
turned to Off.
6.4 Sensor values
CTN sensors,
10 k
W at 25°C
6.5 Compressor operating limits
Outdoor air temperature in °C (DB) Outdoor air temperature in °C (DB)
HOT WATER PRODUCTION
Minimum water return temperature during operation: +5°C
Frost protection fluid: +5°C / Pure water: +10°
Maximum water inlet temperature: +70°C
CHILLED WATER PRODUCTION
Minimum water return temperature during operation: +40°C
Water outlet temperature (°C) Water return temperature (°C)
Temperature
(°C)
Sensor resist-
ance (kΩ)
Temperature
(°C)
Sensor resist-
ance (kΩ)
Temperature
(°C)
Sensor resist-
ance (kΩ)
-40 345.3 15 15.58 70 1.724
-35 247.6 20 12.37 75 1.456
-30 179.6 25 10 80 1.236
-25 131.8 30 7.958 85 1.053
-20 97.78 35 6.446 90 0.901
-15 73.27 40 5.252 95 0.774
-10 55.44 45 4.305 100 0.667
-5 42.33 50 3.548 105 0.577
0 32.6 55 2.94 110 0.501
5 25.29 60 2.449 115 0.436
10 19.77 65 2.05 120 0.381
Crankcase element kit REQUIRED for models 20 to 75
Mix of
PURE WATER +
FROST PROTECTION FLUID
(Example: 40% MPG)
Mix of
PURE WATER
+
FROST
PROTECTION
FLUID
(Example:
40% MPG)
PURE WATER
PURE WATER
