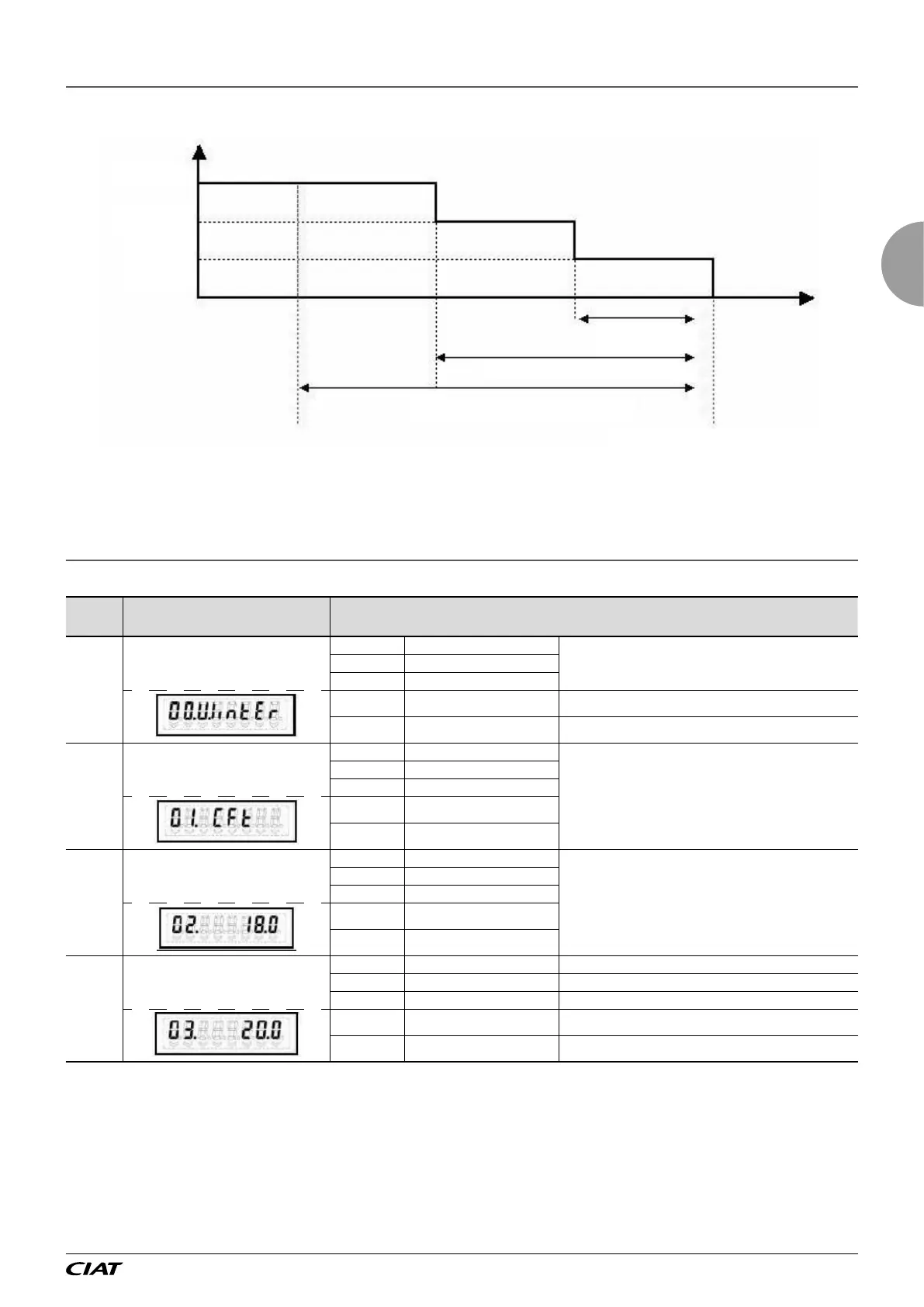

6 - OPERATING PRINCIPLE
Activation of the electric heater power stages
Stage 3
Stage 2
Stage 1
1/3 WINTER gradient
Setting 13
2/3 WINTER gradient Setting 13
3/3 WINTER gradient - Setting 13
WINTER setpoint temp. - Setting 02
The electric heater stages are activated 30 seconds after the fan motor assembly is turned on
7 - USER SETTINGS
N° Description Possible choices
00
Operating mode:
Used to set the control box's
operating mode
Unit -
WintEr (used for heating)
SuMMEr (ventilation only)
Min -
Max -
Defaut WintEr
Increment -
01
Override:
Allows the user to override the
control mode being used
Unit -
Off
CFt (Confort)
ECO (Economy)
H.GL (Frost Protection)
tIMe (depending on time schedule)
Min -
Max -
Defaut CFt
Increment -
02
Temperature setpoint in
WINTER mode
Unit °C
From 0 to 51°C
Min 0
Max Setting 03 - 0.2°C
Defaut 18
Increment 0.2
03
Temperature setpoint in SUMMER mode:
Ventilation only
Unit °C
Min Setting 03 + 0.2°C
Max 51 From 0 to 51°C (Ventilation only)
Defaut 18
Increment 0.2
EN-23 BOX ELEC Eco+
