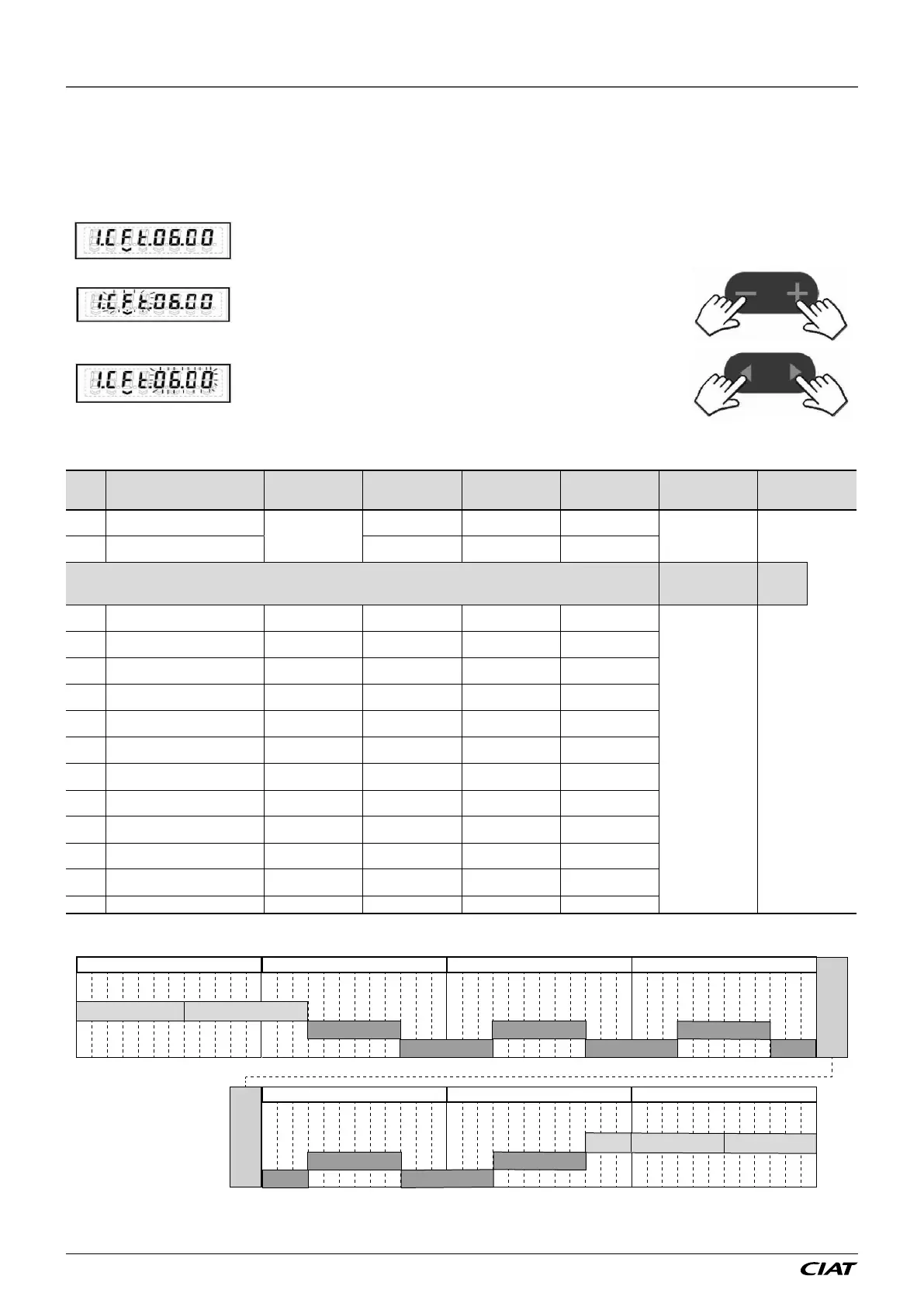

9 - TIME SCHEDULING
Above all, we need the user parameter "Set - 01" to either " tIME " for the regulation takes into account the hourly programming
instructions.
The control allows you to set two state changes per day (Stop, comfort, economy, frost protection).
Setting Stages:
The arrow points to the current day setting.
When the mode is ashing, you can change it with keys:
When the time at which you want to be considered the mode ashes, you
can modify using
Settings
N° Description Unit Min Max Default Increment Possible choices
1 Programming range Mon 1
hh.mm
00.00 Mon 2 CFt.06.00
1 min
2 Programming range Mon 2 Mon 1 23.59 ECO.22.00
Copy schedules Mon 1 and Mon 2 (Monday) to the schedules below
(other days of the week))
These schedules can subsequently be modied
-
YES
NO
1 Programming range Tue 1 00.00 Tue 2 CFt.06.00
1 min
2 Programming range Tue 2 Tue 1 23.59 ECO.22.00
1 Programming range Wed 1 00.00 Wed 2 CFt.06.00 OFF
2 Programming range Wed 2 Wed 1 23.59 ECO.22.00 CFt
1 Programming range Thu 1 hh.mm 00.00 Thu 2 CFt.06.00 ECO
2 Programming range Thu 2 Thu 1 23.59 ECO.22.00 H.GL
1 Programming range Fri 1 00.00 Fri 2 CFt.06.00
2 Programming range Fri 2 Fri 1 23.59 ECO.22.00
1 Programming range Sat 1 00.00 Sat 2 CFt.06.00
2 Programming range Sat 2 Sat 1 23.59 ECO.22.00
1 Programming range Sun 1 00.00 Sun 2 CFt.06.00
2 Programming range Sun 2 Sun 1 23.59 ECO.22.00
Symbols and example schedules
00h00 00h00 00h00 00h00
00h00 00h00 00h00
02h00 04h00 06h00 08h00 10h00 12h00 14h00 16h00 18h00 20h00 22h00 02h00 04h00 06h00 08h00 10h00 12h00 14h00 16h00
18h00 20h00 22h00 02h00 04h00
06h00 08h00 10h00
12h00
14h00 16h00
18h00 20h00 22h00 02h00 04h00
06h00 08h00
10h00 12h00 14h00 16h00 18h00 20h00 22h00
02h00 04h00 06h00 08h00 10h00 12h00 14h00
16h00
18h00 20h00
22h00
02h00 04h00 06h00 08h00
10h00
12h00
14h00 16h00 18h00 20h00
22h00
02h00 04h00 06h00 08h00 10h00 12h00
14h00 16h00
18h00 20h00
22h00
Sunday Monday Tuesday Wednesday
Thursday Friday Saturday
FOLLOWING
PROGRAMMING
FOLLOWING
PROGRAMMING
Frost free
Sun 1 instructions
Frost free
Sun 2 instructions
Confort
Mon 1 instructions
Economie
Mon 2 instructions
Confort
Tue 1 instructions
Economie
Tue 2 instructions
Confort
Wed 1 instructions
Economie
Wed 2 instructions
Economie
instructions
Confort
Thu 1 instructions
Economie
Thu2 instructions
Confort
Fri1 instructions
Frost free
Fri 2 instructions
Frost free
Sat 1 instructions
Frost free
Sat 2 instructions
