CIAT VECTIOS POWER IPJ Series User Manual

VECTIOS
POWER TM
PJEN-17
7 - POSITIONING AND INSTALLATION

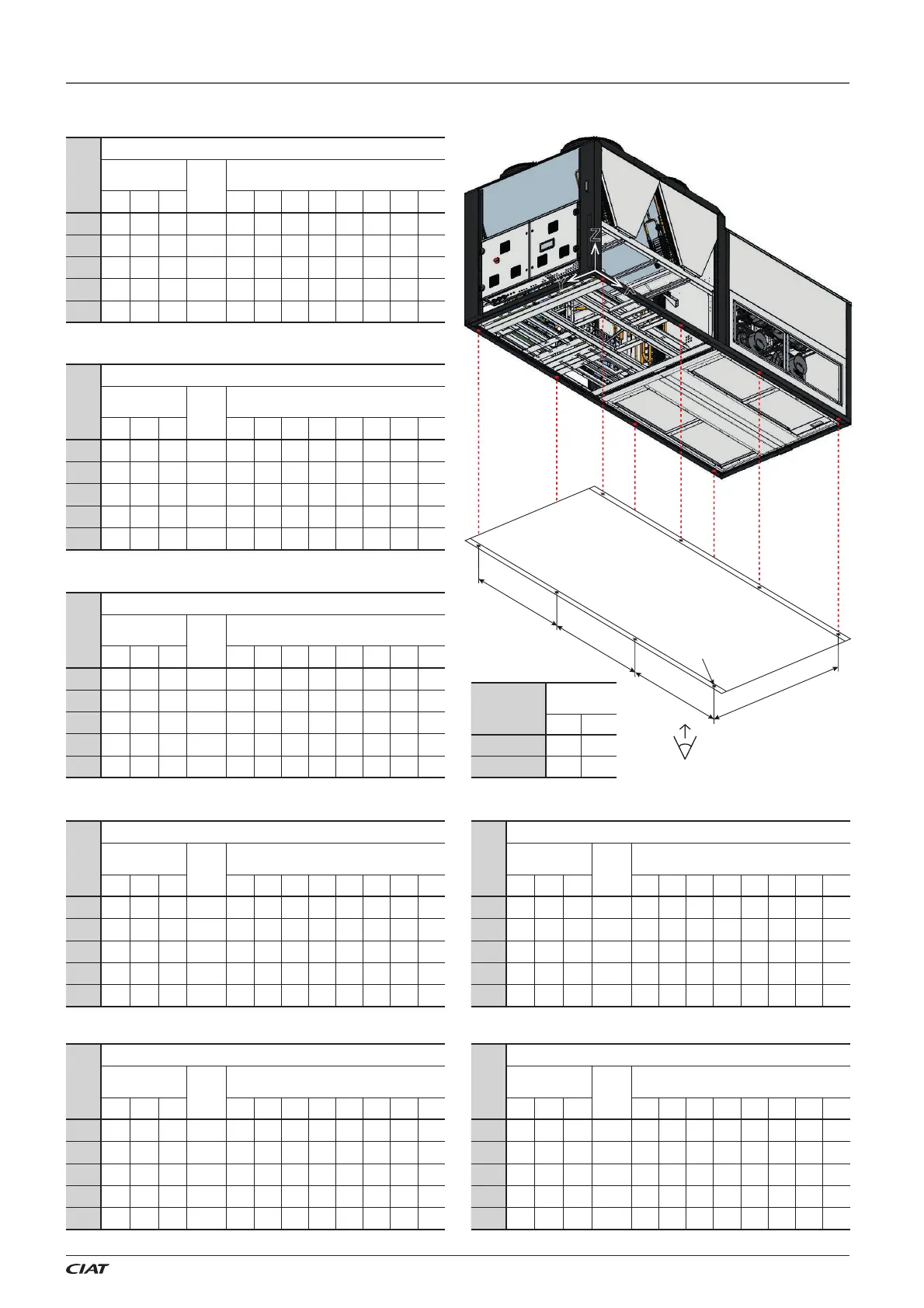

7.5 Centres of gravity, weight and reactions in the supports:
IPJ
Distances
(mm)
AB
0760 to 0960
1629 2158
1050 to 1200
1979 2158
IPJ
C0 assembly
Centre of
gravity (mm)
Weight
(kg)
Reactions in the supports
(kg)
X Y Z R1 R2 R3 R4 R5 R6 R7 R8
0760
2356 1121 965 2255 257 410 264 190 267 435 252 181
0840
2338 1135 947 2355 269 423 271 193 289 453 270 188
0960
2304 1165 919 2455 282 434 270 185 314 487 288 195
1050
2718 1158 979 2785 306 539 296 203 349 581 305 206
1200
2718 1158 979 2845 313 552 302 207 356 595 311 210
A
B
Z
X
Y
R1
R2
R3
R4
R5
R6
R7
R8
M12
A
A
IPJ
CS assembly
Centre of
gravity (mm)
Weight
(kg)
Reactions in the supports
(kg)
X Y Z R1 R2 R3 R4 R5 R6 R7 R8
0760
2387 1140 966 2355 257 420 261 183 289 474 279 193
0840
2367 1155 949 2425 268 425 275 201 295 468 286 206
0960
2333 1183 921 2525 281 436 275 194 320 502 304 213
1050
2740 1168 977 2895 313 550 307 216 360 600 323 225
1200
2740 1168 977 2955 319 562 313 220 368 614 330 229
IPJ
CP assembly
Centre of
gravity (mm)
Weight
(kg)
Reactions in the supports
(kg)
X Y Z R1 R2 R3 R4 R5 R6 R7 R8
0760
2563 1213 979 2745 249 439 307 258 295 538 358 301
0840
2543 1226 964 2815 256 447 310 257 314 553 374 304
0960
2504 1247 937 2915 266 460 309 249 331 608 386 306
1050
2947 1233 983 3235 286 564 336 264 372 685 410 317
1200
2947 1233 983 3295 291 575 342 269 379 699 418 323
IPJ
CR assembly
Centre of
gravity (mm)
Weight
(kg)
Reactions in the supports
(kg)
X Y Z R1 R2 R3 R4 R5 R6 R7 R8
0760
2561 1200 960 2935 270 475 333 280 313 569 378 317
0840
2543 1211 946 3005 277 483 336 279 332 584 394 321
0960
2537 1246 920 3105 276 485 332 275 342 642 413 335
1050
2968 1225 969 3435 302 600 363 289 388 720 435 340
1200
2968 1225 969 3495 307 610 369 294 394 733 442 346
IPJ
CT assembly
Centre of
gravity (mm)
Weight
(kg)
Reactions in the supports
(kg)
X Y Z R1 R2 R3 R4 R5 R6 R7 R8
0760
2583 1105 1114 3005 293 521 379 322 295 539 355 302
0840
2564 1119 1098 3075 300 529 381 320 314 554 371 306
0960
2557 1138 1092 3175 303 541 386 323 321 602 384 315
1050
2983 1138 1110 3485 328 651 408 327 365 682 405 319
1200
2983 1138 1110 3545 333 662 415 332 372 695 412 324
IPJ
CQ assembly
Centre of
gravity (mm)
Weight
(kg)
Reactions in the supports
(kg)
X Y Z R1 R2 R3 R4 R5 R6 R7 R8
0760
2585 1112 1128 2855 275 489 356 303 281 511 339 290
0840
2565 1127 1110 2925 284 498 360 304 301 527 356 295
0960
2558 1147 1103 3025 288 510 365 306 309 575 369 304
1050
2963 1142 1127 3285 312 614 381 302 350 649 381 297
1200
2963 1142 1127 3345 317 626 387 307 356 661 388 302
IPJ
CW assembly (smaller diameter wheel)
Centre of
gravity (mm)
Weight
(kg)
Reactions in the supports
(kg)
X Y Z R1 R2 R3 R4 R5 R6 R7 R8
0760
2793 1473 1001 3410 191 396 301 307 365 745 575 530
0840
2772 1477 987 3480 198 403 304 307 384 760 591 534
0960
2756 1493 1493 3580 196 407 302 305 393 823 607 547
1050
3195 1439 1010 3850 221 514 335 313 439 883 616 528
1200
3195 1439 1010 3910 224 522 340 317 446 897 626 537
