CIAT VECTIOS POWER IPJ Series User Manual

VECTIOS
POWER TM
PJ EN-16
A
A
B
R4
R6
R5
Z
X
Y
M12
R1
R3
R2
7 - POSITIONING AND INSTALLATION

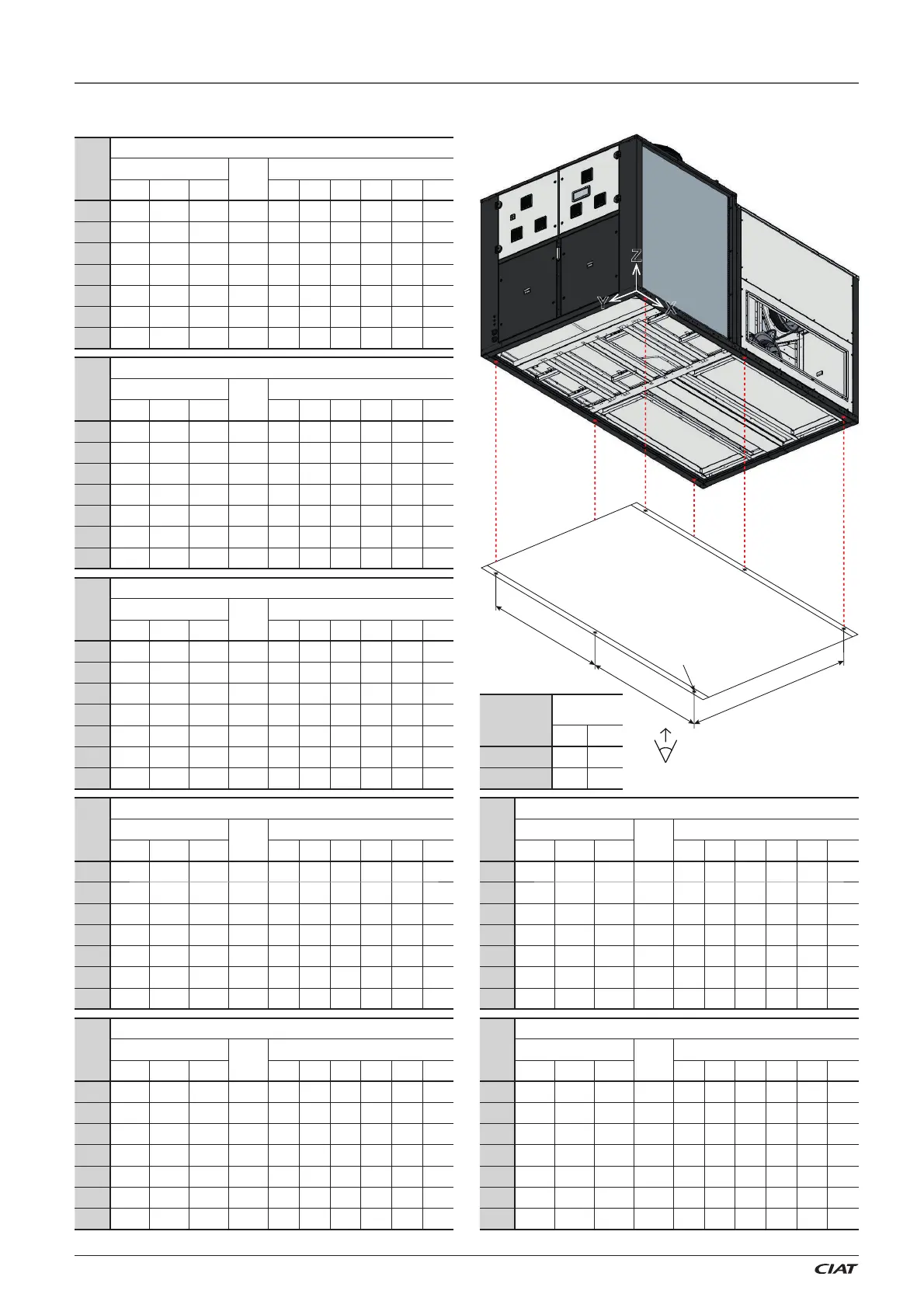

7.5 Centres of gravity, weight and reactions in the supports
IPJ
Distances
(mm)
AB
0420 to 0500
1702 2158
0560 to 0720
1904 2158
IPJ
C0 assembly
Centre of gravity (mm)
Weight
(kg)
Reactions in the supports (kg)
X Y Z R1 R2 R3 R4 R5 R6
0420
1566 1046 845 1420 272 361 125 240 324 98
0450
1566 1046 845 1435 274 365 126 243 328 99
0500
1566 1046 845 1450 277 369 127 245 331 101
0560
1840 1042 855 1630 276 428 165 243 381 137
0620
1840 1042 855 1665 281 437 169 249 389 140
0680
1840 1042 855 1670 282 438 169 249 391 140
0720
1840 1042 855 1675 283 440 170 250 392 141
IPJ
CS assembly
Centre of gravity (mm)
Weight
(kg)
Reactions in the supports (kg)
X Y Z R1 R2 R3 R4 R5 R6
0420
1595 1074 849 1465 269 362 131 246 342 114
0450
1595 1074 849 1480 272 366 132 249 346 115
0500
1595 1074 849 1495 274 370 134 251 349 117
0560
1866 1066 857 1670 272 437 163 244 399 153
0620
1866 1066 857 1705 278 446 167 250 408 157
0680
1866 1066 857 1710 279 447 167 250 409 157
0720
1866 1066 857 1715 280 449 168 251 410 158
IPJ
CP assembly
Centre of gravity (mm)
Weight
(kg)
Reactions in the supports (kg)
X Y Z R1 R2 R3 R4 R5 R6
0420
1743 1167 868 1669 263 384 179 275 423 200
0450
1743 1167 868 1684 256 378 171 268 418 193
0500
1743 1167 868 1699 258 381 173 270 422 194
0560
2018 1168 847 1935 262 450 215 273 499 236
0620
2018 1168 847 1970 267 460 218 278 508 241
0680
2018 1168 847 1975 267 460 219 279 509 241
0720
2018 1168 847 1980 268 461 220 280 510 242
IPJ
CR assembly
Centre of gravity (mm)
Weight
(kg)
Reactions in the supports (kg)
X Y Z R1 R2 R3 R4 R5 R6
0420
1723 1210 853 1780 276 361 178 312 434 218
0450
1723 1210 853 1795 279 364 179 315 438 220
0500
1723 1210 853 1810 281 367 181 317 442 222
0560
1989 1204 835 2085 291 448 228 323 528 266
0620
1989 1204 835 2120 295 457 230 328 540 270
0680
1989 1204 835 2125 296 458 231 329 541 270
0720
1989 1204 835 2130 296 459 231 330 542 271
IPJ
CQ assembly
Centre of gravity (mm)
Weight
(kg)
Reactions in the supports (kg)
X Y Z R1 R2 R3 R4 R5 R6
0420
1775 1055 1071 1765 283 435 215 252 392 189
0450
1775 1055 1071 1780 285 439 217 254 396 190
0500
1775 1055 1071 1795 286 441 217 254 397 190
0560
2024 1053 1038 2025 297 515 256 264 467 226
0620
2024 1053 1038 2030 297 522 254 262 473 223
0680
2024 1053 1038 2035 298 523 254 263 474 224
0720
2024 1053 1038 2040 298 525 255 263 475 224
IPJ
CT assembly
Centre of gravity (mm)
Weight
(kg)
Reactions in the supports (kg)
X Y Z R1 R2 R3 R4 R5 R6
0420
1752 1102 1057 1875 309 420 222 295 412 216
0450
1752 1102 1057 1890 312 424 224 298 416 217
0500
1752 1102 1057 1905 314 427 226 300 419 219
0560
1996 1095 1030 2175 331 515 269 311 502 257
0620
1996 1095 1030 2180 329 519 265 309 505 253
0680
1996 1095 1030 2185 329 520 265 310 507 254
0720
1996 1095 1030 2190 330 522 266 310 508 254
IPJ
CW assembly (smaller diameter wheel)
Centre of gravity (mm)
Weight
(kg)
Reactions in the supports (kg)
X Y Z R1 R2 R3 R4 R5 R6
0420
1979 1539 983 2170 168 311 202 363 702 425
0450
1979 1539 983 2185 164 308 199 361 702 423
0500
1979 1539 983 2200 165 310 200 363 707 426
0560
2227 1503 937 2445 182 387 247 368 799 461
0620
2227 1503 937 2480 178 393 249 374 817 469
0680
2227 1503 937 2485 178 394 250 375 818 470
0720
2227 1503 937 2490 180 397 252 378 822 473
