7 - POSITIONING AND INSTALLATION

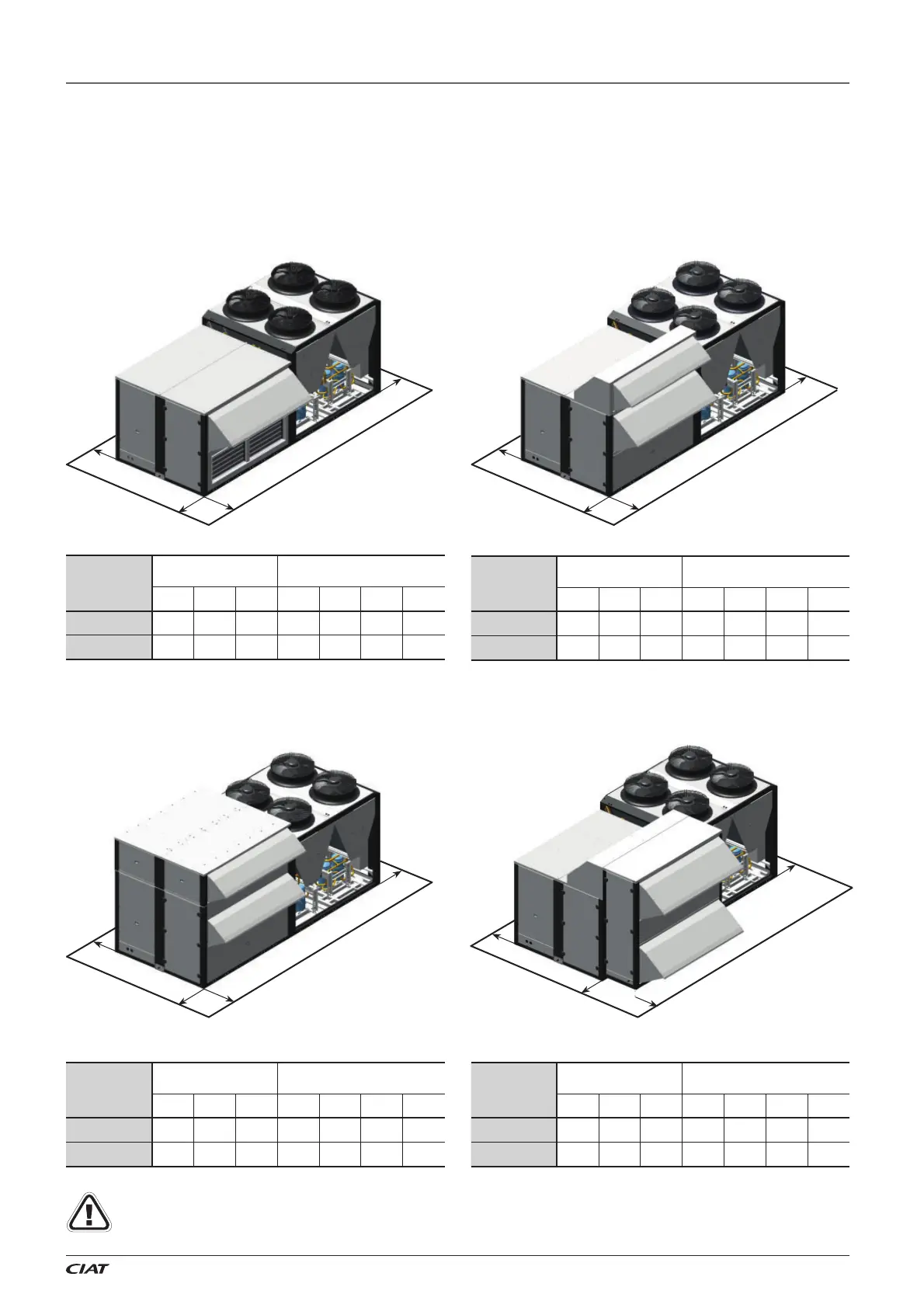

7.6 Recommended service clearance
Important: This is the minimum space required for maintenance operations and access inside the unit. Depending on the assembly
selected for the unit and the characteristics of the installation site, a larger space around it may be required to ensure proper air
circulation and therefore the correct operation of the unit.
Unit not designed to have overhead obstruction.
IPJ - 0760 to 1200
IPJ
Overall dimensions
(mm)
Service clearance
(mm)
Length Width Height A B C D
0760 to 0960
5.300 2.257 2.421 2.600 2.500 1.200 1.000
1050 to 1200
6.350 2.257 2.494 3.000 2.500 1.200 1.000
IPJ
Overall dimensions
(mm)
Service clearance
(mm)
Length Width Height A B C D
0760 to 0960
5.300 2.257 2.555 2.600 2.500 1.200 1.000
1050 to 1200
6.350 2.257 2.555 3.000 2.500 1.200 1.000
IPJ
Overall dimensions
(mm)
Service clearance
(mm)
Length Width Height A B C D
0760 to 0960
5.300 3.112 2.555 2.600 1.700 1.200 1.000
1050 to 1200
6.350 3.112 2.555 3.000 2.500 1.200 1.000
IPJ
Overall dimensions
(mm)
Service clearance
(mm)
Length Width Height A B C D
0760 to 0960
5.306 2.268 2.555 2.600 2.500 1.200 1.000
1050 to 1200
6.356 2.268 2.555 3.000 2.500 1.200 1.000
A
B
D
A
B
C
D
C
A
B
C
D
A
B
C
D
C0 and CS assemblies
CW assembly
CP and CR assemblies
CQ and CT assemblies
