Plus 42 - 45 - 50 - 55
09-2008
22
00969
In the E.P.A. versions, the pressure transducer is connected to the delivery control computer. (see
the specific manual).

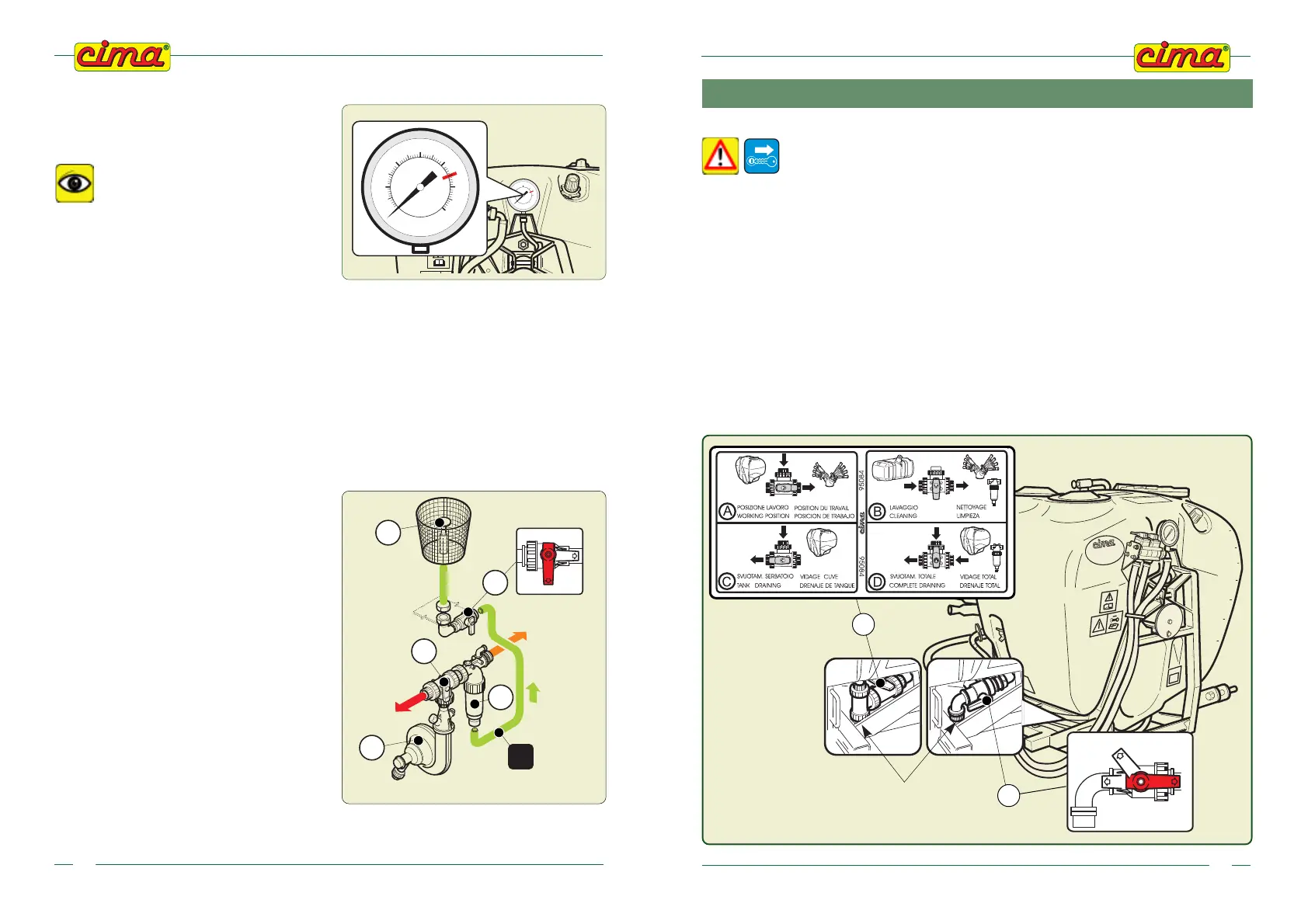

P12. POWDER MIXER LEVER TAP
(For versions in which his envisaged)
Positioned on the pipe (T6), between the filter (P7) and the mixer (P13) in corrispondenza dell’ingresso
della tubazione nel serbatoio principale (P1); it can assume the following positions:
a - Open
From the centrifugal pump (P4), the liquid is sent to the mixer (P13) positioned on the bottom of the cup-
like filter of the main filler (BP).
c - Closed
P8. GAUGE
Glycerine-dipped, with dial from 0 to 6 Kg/cm
2
(atmosphere) – adjustments scale of 1/10 of
atmosphere, 100 mm diameter.
Set the working pressure, by acting
on the regulator hand grip (P8), kee-
ping the (P9) or (E9) opened.
E8. TRANSDUCER OF THE
DELIVERY PRESSURE
( E.P.A. versions)
50 Pl
kg/cm
2
kg/cm
2
00968
P6
P4
P7
T6
P13
a
c
P12
P13. POWDER MIXER
It makes the mixing of the powdery products
during the filling of the tank. It is mounted on the
basket filter of the main filler (BP) and it is
connected to the pump (P4) by the pipe (T6).
That device consists of a fine mesh-nylon basket,
which is placed inside the tank main filler (BP). The
basket is equipped with a mushroom outlet, throu-
gh which the filling water coming from the pump
(P4) streams out. Thanks to that system, the
powder products contained inside the basket get
more gradually dissolved, and the building of
crumbs and thickenings can be avoided.
09-2008
Plus 42 - 45 - 50 - 55
47
350
300
250
200
150
100
50
50 Plus
11 TANK AND HYDRAULIC CIRCUIT DRAINING 11
- Stop the tractor and remove the key from the control panel.
- Wear suitable protective clothing and accessories in order to avoid
contamination by contact or inhalation of the mixture.
- Carry out the discharging in a suitable and properly geared area for the
collection of the washing liquid.
The operation is carried out through the drain plug (P2) (or (P15) for machine equipped
with unit-washing tank):
1. Unscrew the drain plug only when the tap’s lever is in the “a” position. (Drain closed).
2. Turn the faucet (P2) lever in position “b”. (Open exhaust).
(For the atomizers provided with spray-system rinsing tank, position the lever on “d” to have the
complete emptying).
3. After having carried out the draining, turn the faucet (P2) o (P15) lever to the position “a” (Draining
closed) and screw again the draining plug.
DRAINING PLUG
00676
b
c
a
P15
*
P2
* for versions where it is foreseen
