Chapter 1
Using 8000 Mobile Computer
Modem Cradle

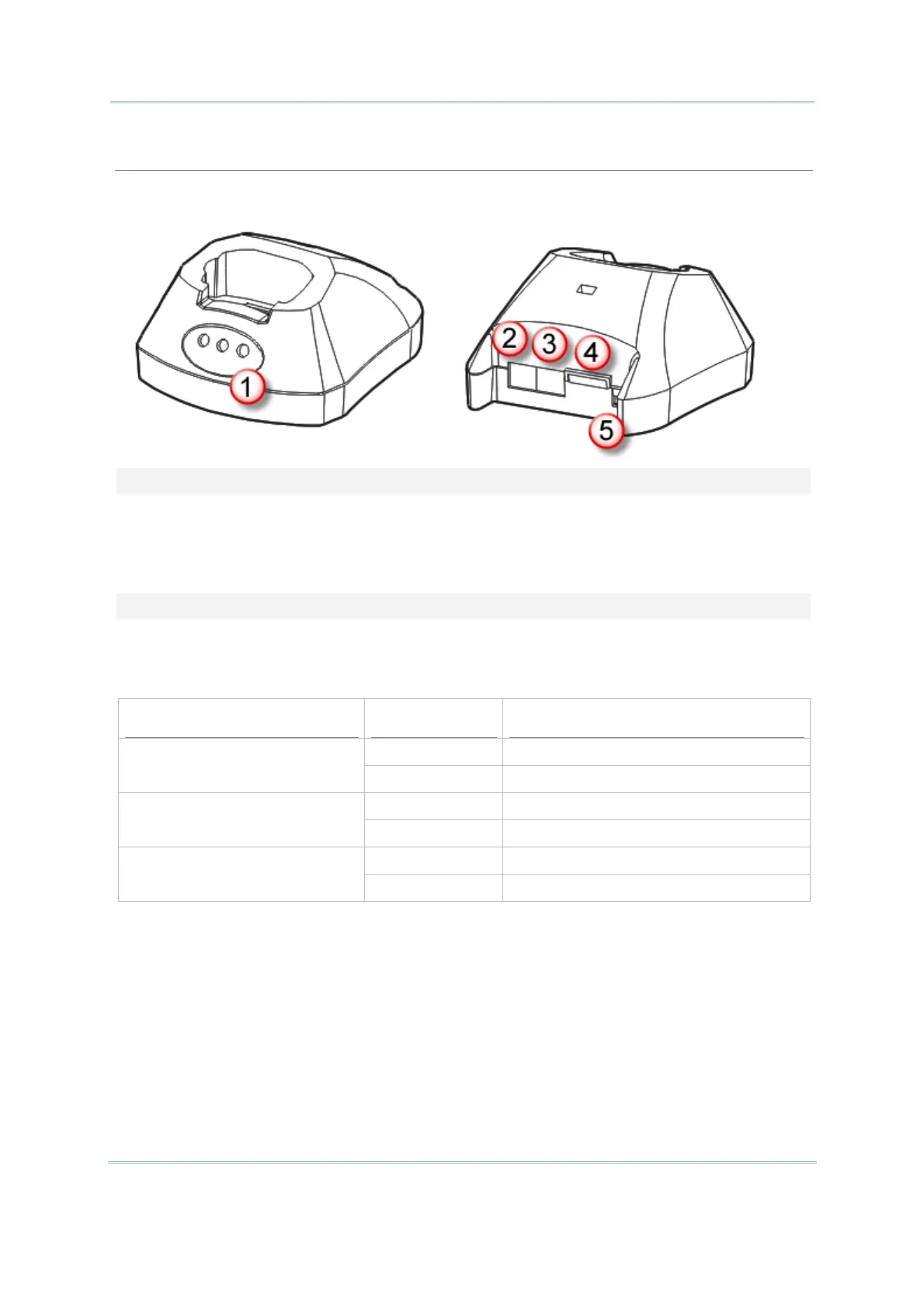

Delivering flexibility in making a connection, the Modem Cradle integrates the modem
functionality (56 kbps) into the cradle.
No. Description No.
Description
1 LED Indicators (from left to right):
MR
TD
RD
2 Phone Jack
3 Line Jack 4 Cable Connector (RS-232)
5 Power Jack
The cradle provides three LED indicators on the front panel to indicate connection status.
Indicator Status Description
Off Power off MR (Modem Ready)
Red, solid Power on
Off No activity TD (Transmit Data)
Red, flashing Transmitting data to the remote device
Off No activity RD (Receive Data)
Red, flashing Receiving data from the remote device
