Page 16

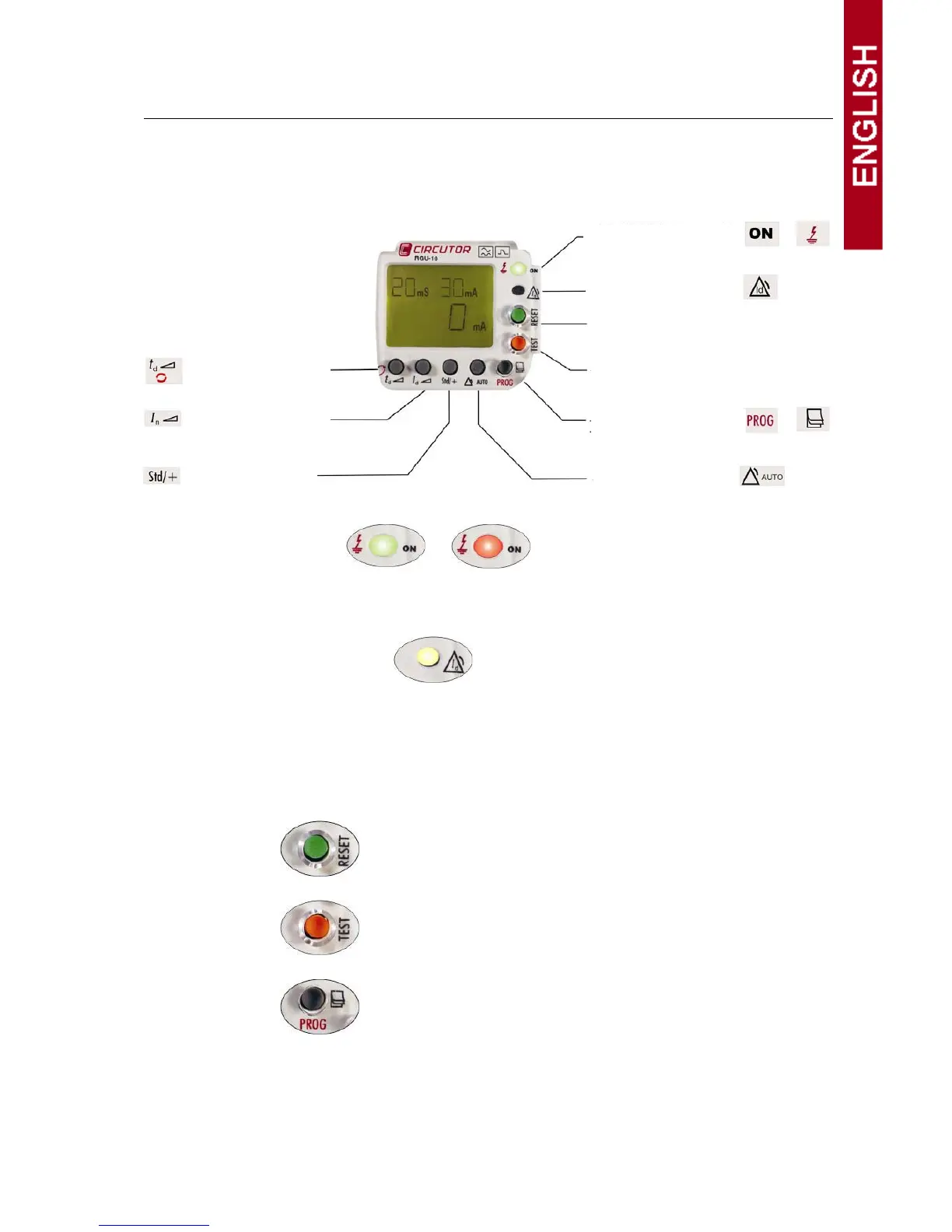

DESCRIPTION
The front of the equipment which is formed by the display, buttons and LEDs, is protected with a sealable plastic
cover which has the appropriate holes to access the RESET, TEST and SETTING keys.
Generic functions of the LEDs and front keypad:
The equipment has to light indicators or LEDs.
Green / Red dual colour LED
Off, the equipment is not operating or is not receiving power supply voltage.
On in green, the equipment is operating. It is receiving power supply voltage.
On in red, the equipment has tripped.
Yellow LED. Indication of pre-alarm
Off, there is no pre-alarm trip.
On, constant, pre-alarm trip without reclosing.
On, flashing, pre-alarm trip in re-closing situation.
The equipment has seven buttons described according to the degree of accessibility.
Accessible with sealed cover and tool.
RESET button
Starts the equipment after a trip.
TEST button
Carries out a trip to check the proper operation of the relay.
PROG/PAG button
Dual purpose button.
With a short press, the PRE-ALARM setting is entered.
With a long press, the equipment's SETUP program is entered.
- DELAY SETTING
- SETUP MENU ROTATION
- SENSITIVITY SETTING
- SAFETY SETTING
- GREEN LED: Equipment on
- RED LED: Leakage trip
- YELLOW LED: Pre-alarm
- RESET BUTTON
- TEST BUTTON
- SETUP SETTING
- PRE-ALARM SETTING
- RESET PRE-ALARM
SETTING
