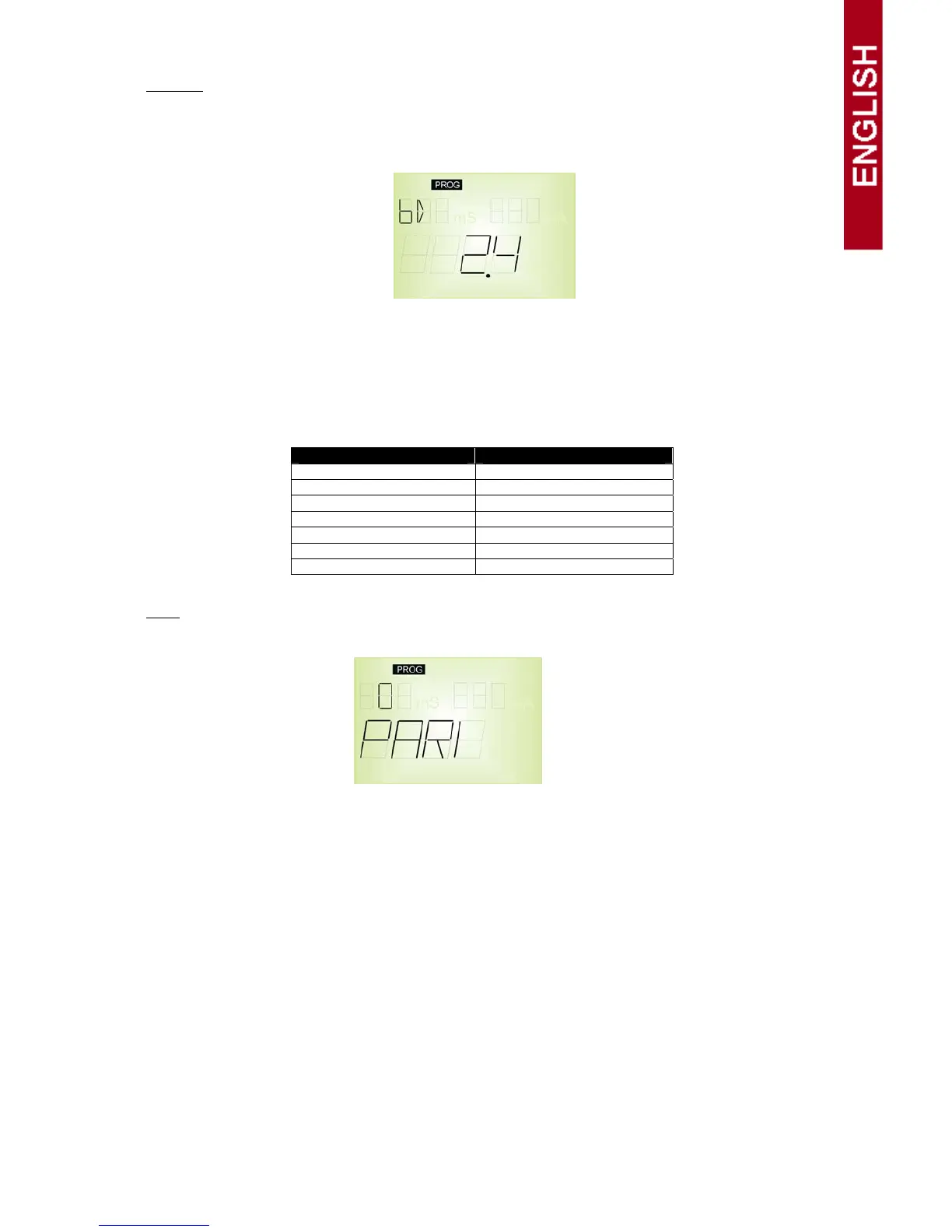

Page 24
Baud rate
The display shows the letters "bd" on the upper left of the screen showing the bauds and shows the baud rate in units
of a thousand in the central part of the screen.
Repeatedly press the td button to change the baud rate, increasing the value of a digits on the central area of the
screen.
When the required value is on the screen, move on to the following digit by pressing PROG, to allow the remaining
values to be changed.
The possible setting values are as follows:
Value on screen Bauds
2.4 2400
4.8 4800
9.6 9600
19.2 19200
38.4 38400
54.6 54600
115 115000
Parity
The display shows "PARI" with the set a value on the upper left of the screen.
In order to change parity, repeatedly press the td key to change the values on the upper left of the screen.
When the required value is on the screen, it is entered and the display moves on the next screen by pressing PROG,
to allow the setting to be changed.
For communication setting menu using SETUP ends on this screen. It directly links with the first measurement
SETUP screen on the equipment.
