REC4-2P model
REC4-2P model manufactured from 01/23.
REC4-C-2P model

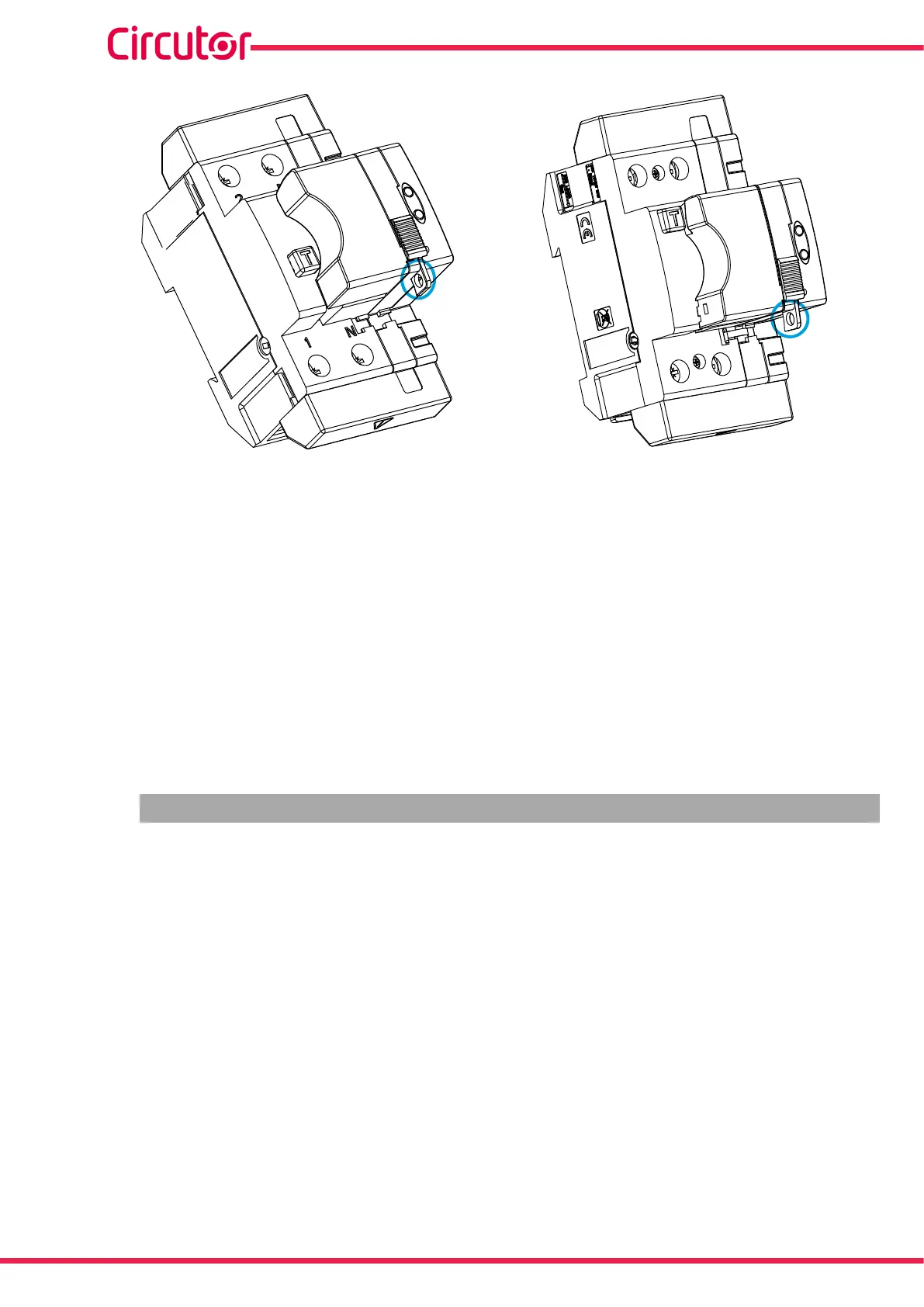

Figure 7: Switch’s M2 hole to seal access to the RCCB.
4.4.2.- MANUAL MODE
If the device is going to operate in manual mode, see Section “4.5.1.- MANUAL”, the start-up sequence
is:
1.- Put the mode selector switch in Manual Mode (OFF).
2.- Lift the RCCB cover.
3.- Put the RCCB contact in ON mode.
4.- Lower the RCCB cover (optional).
4.5.- OPERATING MODES
The device has two operating modes, manual and automatic, which can be selected using the mode
selector switch (Figure 3 and Figure 4).
4.5.1.- MANUAL
The REC4 can operate in manual mode as if it were a standard RCCB.
To operate in this mode, the mode selector switch must be all the way to the top, in OFF position, to
disable the unit’s automatic reclosing device. (Figure 8)
The RCCB must be reclosed manually.
The AUTO and REC LEDs are off.
14
REC4
Instruction Manual
