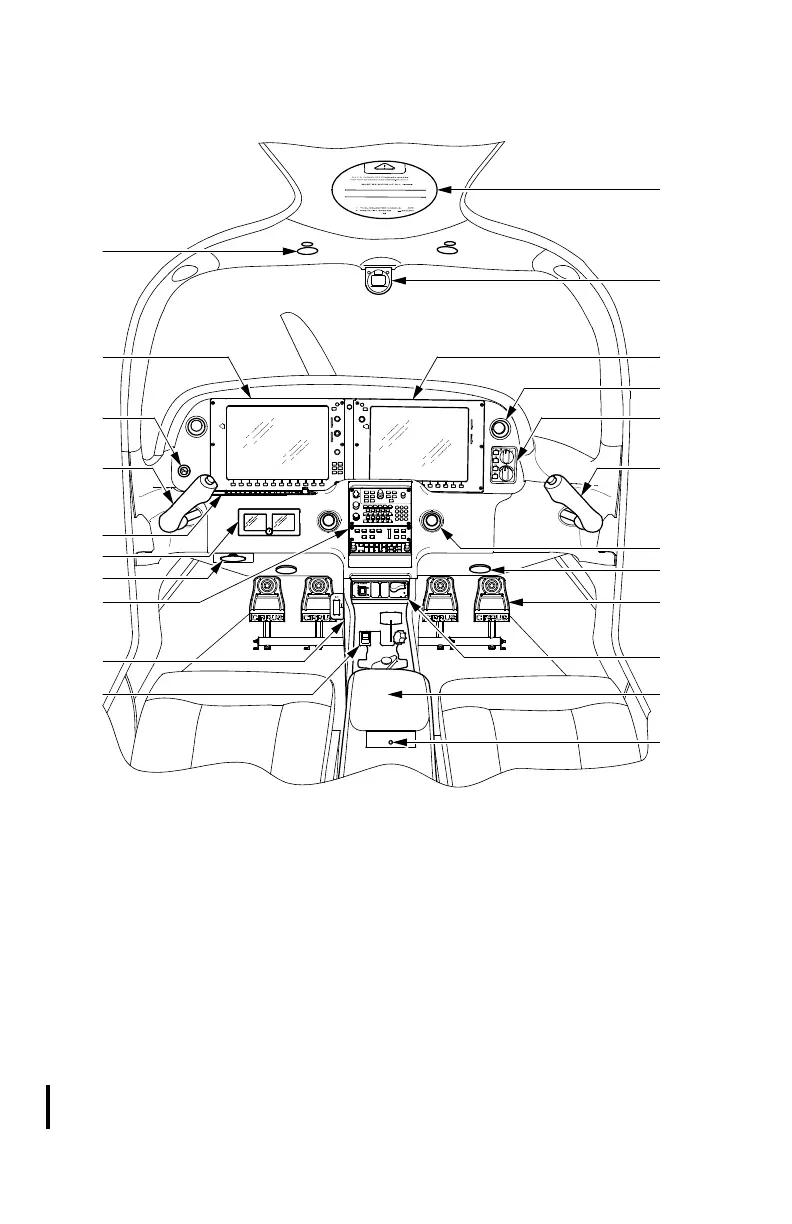

Figure 7-4
Instrument Panel and Console - Serials w/ MD302 (2 of 2)
15
18
20
2
1
3
4
5
9
11
10
12
14
17
16
13
6
4
7
8
6
19
SR20_FM07_3677
13. Left Side Console
· Circuit Breaker Panel
· Alternate Engine Air
· ELT Remote Switch
· Alternate Static Source
14. Avionics Panel
15. Parking Brake
16. Flight Instrument Panel
17. Bolster Switch Panel
18. Start/Ignition Key Switch
19. Primary Flight Display
20. Overhead Light & Switch
Legend
1. Cirrus Airframe Parachute System
(CAPS) Activation T-Handle Cover
2. Magnetic Compass
3. Multifunction Display
4. Fresh Air “Eyeball” Outlet
5. Temperature/Ventilation Controls
6. Control Yoke
7. Air Outlet
8. Rudder Pedals
9. Flap Control & Position Indicators
10. Armrest
11. Passenger Audio Jack(s)
12. Engine & Fuel System Controls
