Cirrus SR20 - Page 263

Cirrus Design Section 7
SR20 Airplane and Systems Description
P/N 21399-004 7-79P/N 21399-004 7-79

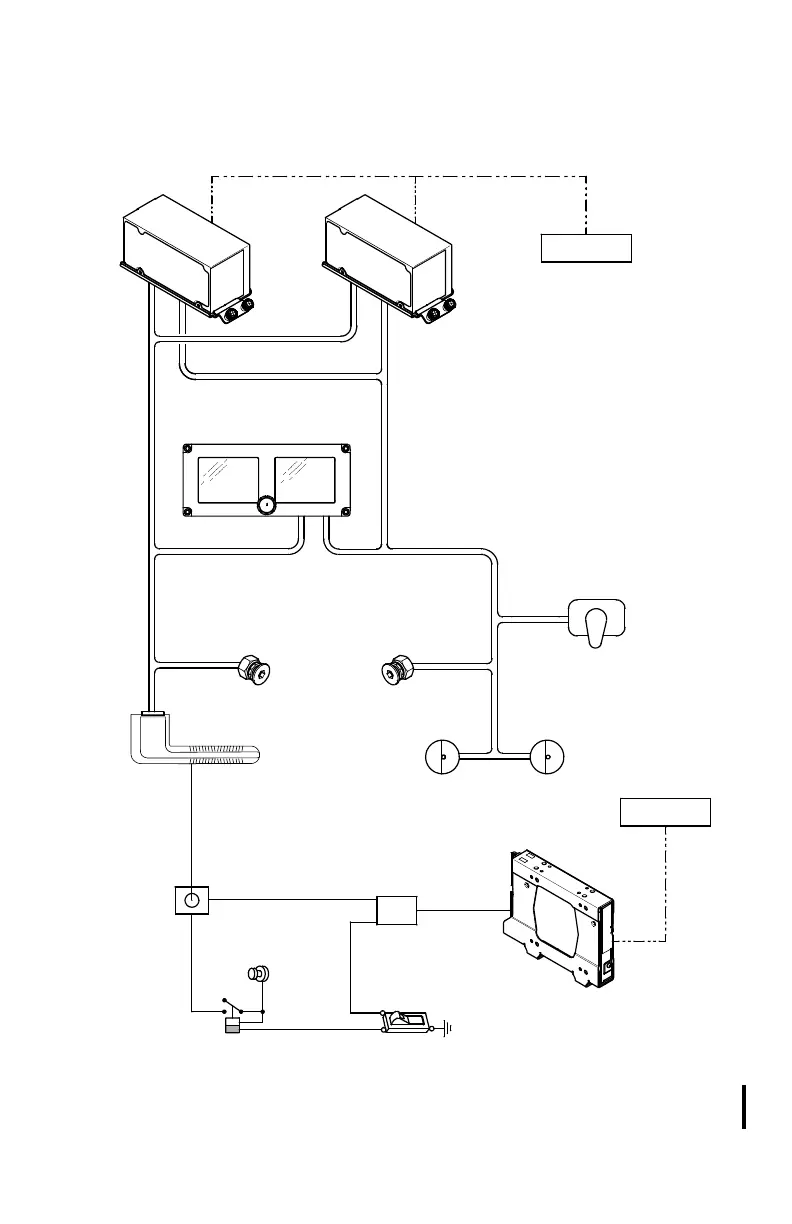

Figure 7-17
Pitot-Static System - Serials 2273 & subs w/ MD302 (2 of 2)
STATIC
BUTTONS
PITOT HEAT
Annunciation
ENGINE AIRFRAME UNIT
MD302 STANDBY
ATTITUDE MODULE
PITOT MAST
PITOT-STATIC
WATER TRAPS
ALTERNATE
STATIC
AIR SOURCE
LOGIC
CURRENT
SENSOR
HEATER
7.5A
PITOT
HEAT
CB
PITOT HEAT SW
AIR DATA COMPUTER
PFD Air Data
AIR DATA COMPUTER 2 (optional)
SR20_FM07_4249
Revision A1
