Cirrus SR20 - Page 378

2 of 6 P/N 11934-S55
Section 9 Cirrus Design
Supplements SR20
Section 1 - General
The 406 MHz emergency locator transmitter (ELT) is a radio-
frequency transmitter that generates a signal to assist in search and
rescue for missing aircraft. The ELT automatically transmits the
standard sweep tone on 121.5 MHz if rapid deceleration is detected or
the Cirrus Airframe Parachute System (CAPS) is deployed.
4
5
8
CENTER
CONSOLE
(REF)
ELT SHELF
(REF)
SR20_FM09_3680
LEGEND
1. LED Annunciator
2. Remote Switch
3. Antenna
4 Remote Cable
5. Main Control Switch
6. Antenna Jack
7. Attach Straps
8. Artex ELT
1000
1
2
3
7
6
1
WA
RN
IN
G
F
O
R
WA
R
D

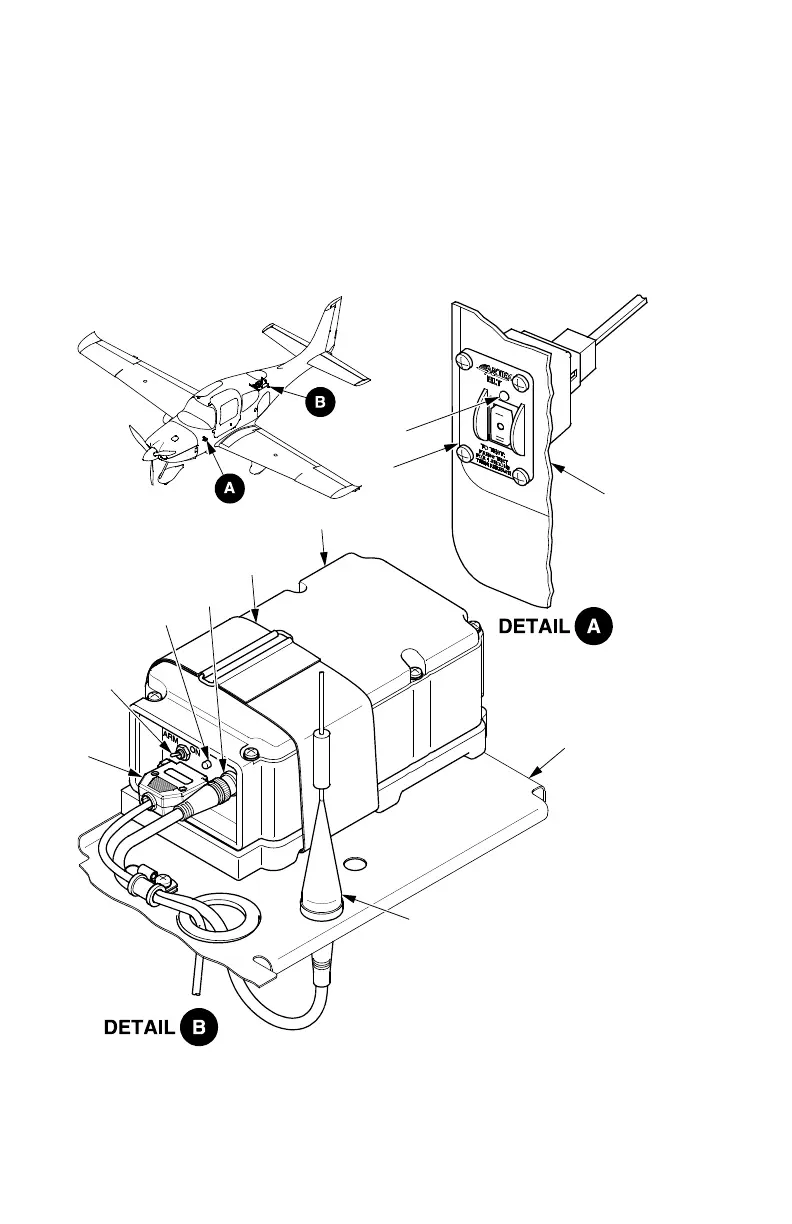

Artex ELT 1000 System
Original Issue: 11-20-14
Figure - 1
