Cisco 1100 Series Installing And Upgrading

Screw holes (7 numbers on each side)2
Replacing the Cover
To replace the cover, perform the following steps.
Step 1
Read the Safety Warnings, on page 1 and disconnect the power supply before you begin.
Step 2
Confirm the router is turned off and disconnected from the power supply or power supplies. If a redundant power is used
disconnect from the redundant power supply.
Step 3
Place the chassis on a flat surface.
Step 4
Locate the cover hooks on the mating slots and slide the cover towards the bezel side.
Step 5
Install seven screws on each side.
Locating Internal and External Slots for Modules
This section describes the locations of internal modules on the router motherboard. Internal modules include
PoE daughter card on the Cisco1100 Series ISRs.

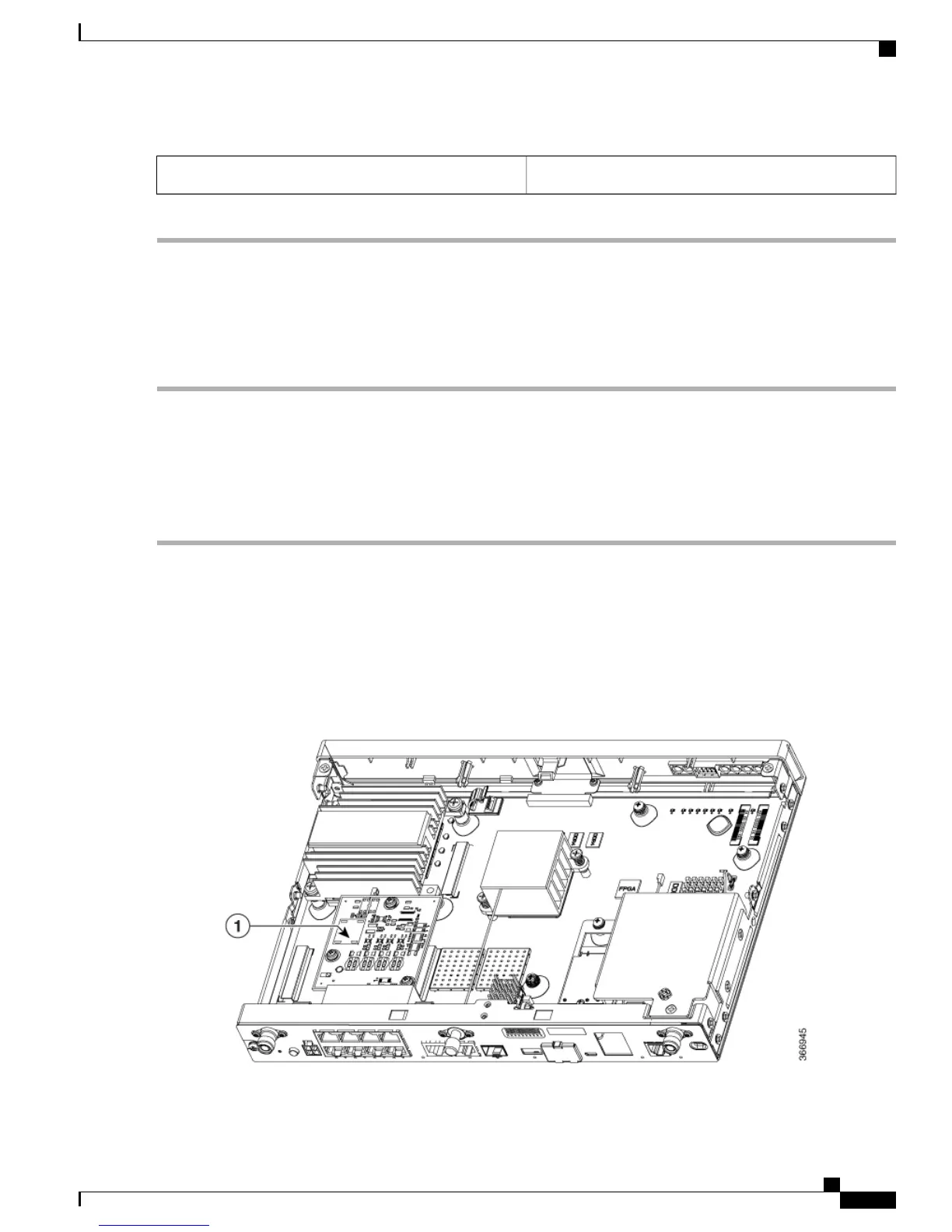

Figure 2: Module Location in the Cisco 1100 Series ISR
Hardware Installation Guide for the Cisco 1100 Series Integrated Services Router
3
Installing and Upgrading Internal Modules and FRUs
Locating Internal and External Slots for Modules
