Cisco 2500 Series Installing Guide

Installing Cisco AC and DC Power Supplies in Cisco 2500 Series Routers 5
Installing AC and DC Power Supplies
Figure 4 Removing the Power Supply
Step 4
Place the removed screw and power supply in an antistatic bag.
Installing AC and DC Power Supplies
This section describes how to install AC and DC power supplies. Although an AC power supply is
shown in the illustrations that follow, the procedure is the same for installing both AC and DC power
supplies.
Step 1 Put the power supply into place and gently slide it toward the back of the chassis engaging
the tabs on the bottom of the case with the slots in the bottom of the power supply.
(See Figure 5.)

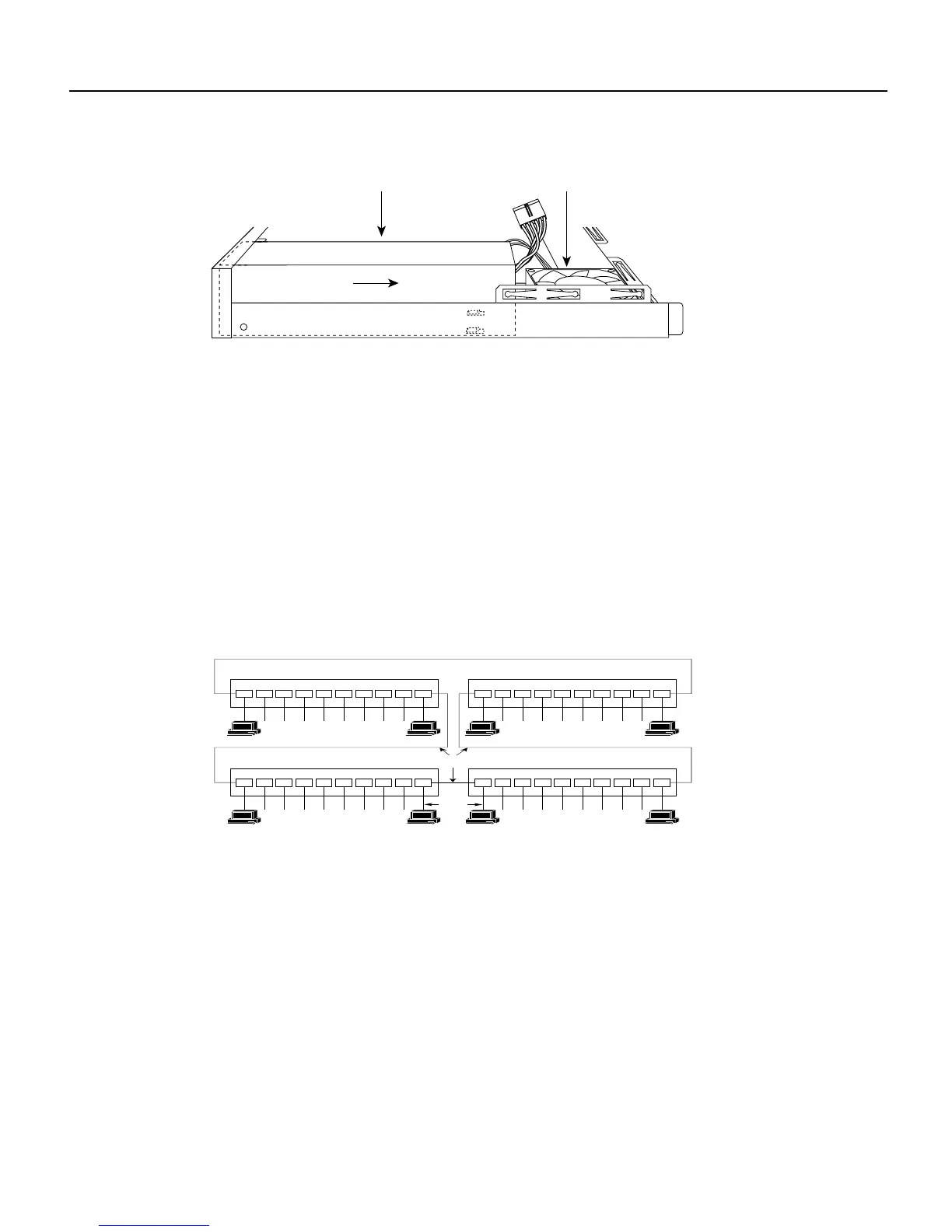

Figure 5 Inserting the Power Supply
Step 2
Install the screw that came with the Cisco power supply into the screw hole between the
power switch and power connector. (See Figure 6.)
H9082
AC power supply Fan
10 23456789
Stations
10 23456789
Stations
10 23456789
Stations
10 23456789
Stations
Lobe
cables
Patch
cables
H9632
Token Ring Switch Token Ring Switch
Token Ring Switch Token Ring Switch
