Cisco 2500 Series Wireless Controller Getting Started Guide
Installing the Controller

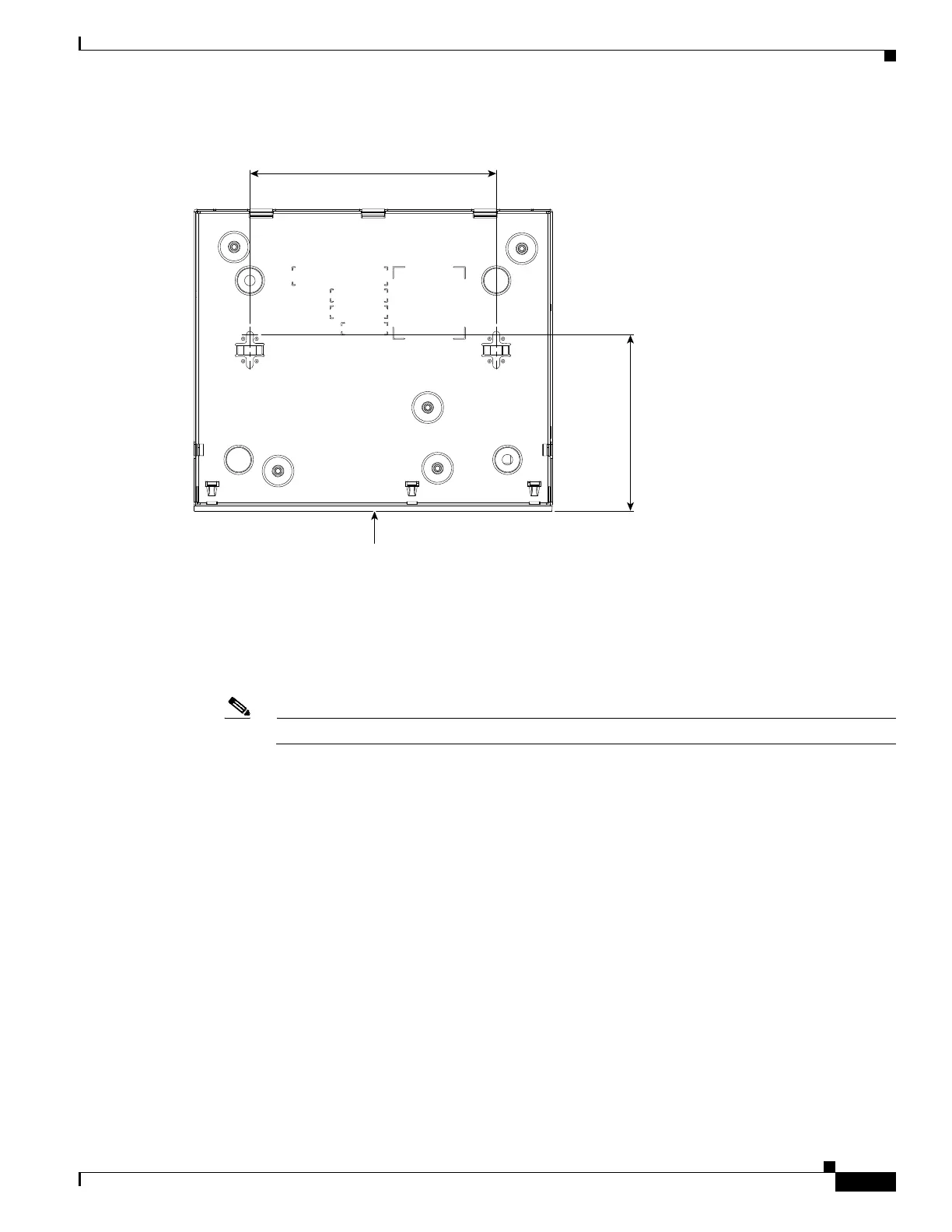

Figure 7 Mounting Screw Holes on the Back of the Controller
Step 2 Use a 0.107-inch (2.7mm) or #32 drill bit to drill a 3/4 inch (19mm) hole for the two mounting screws.
Step 3 Insert two screws into the screw holes and tighten until the top of the screws are 1/8 inch from the wall
(leaving enough room for the back panel to slide onto the screws firmly).
Step 4 Place the controller onto the mounting screws and slide it down until it lock into place, as shown in
Figure 8.
Note The front panel of the controller should be facing down.
282087
3.9
5.5
FRONT PANEL

Cisco 2504 Specifications

General

Number of users	25 user(s)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Quality of Service (QoS) support	Yes
Internal	No
LED indicators	Link, Power, Status
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	5
Security algorithms	3DES, DES, MD5, SSL/TLS, WPA, WPA2
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 95 %
Safety	UL 60950-1, EN 60950:2005, FCC 15.107, FCC 15.109, ICES-003, VCCI, EN 55022, EN 55024
Power supply type	AC
AC input frequency	50 - 60 Hz
Power requirements	100 - 240 V

Weight and Dimensions

Weight	1590 g
Dimensions (WxDxH)	271.5 x 203.2 x 43.9 mm
