Cisco 2500 Series Wireless Controller Getting Started Guide
Installing the Controller

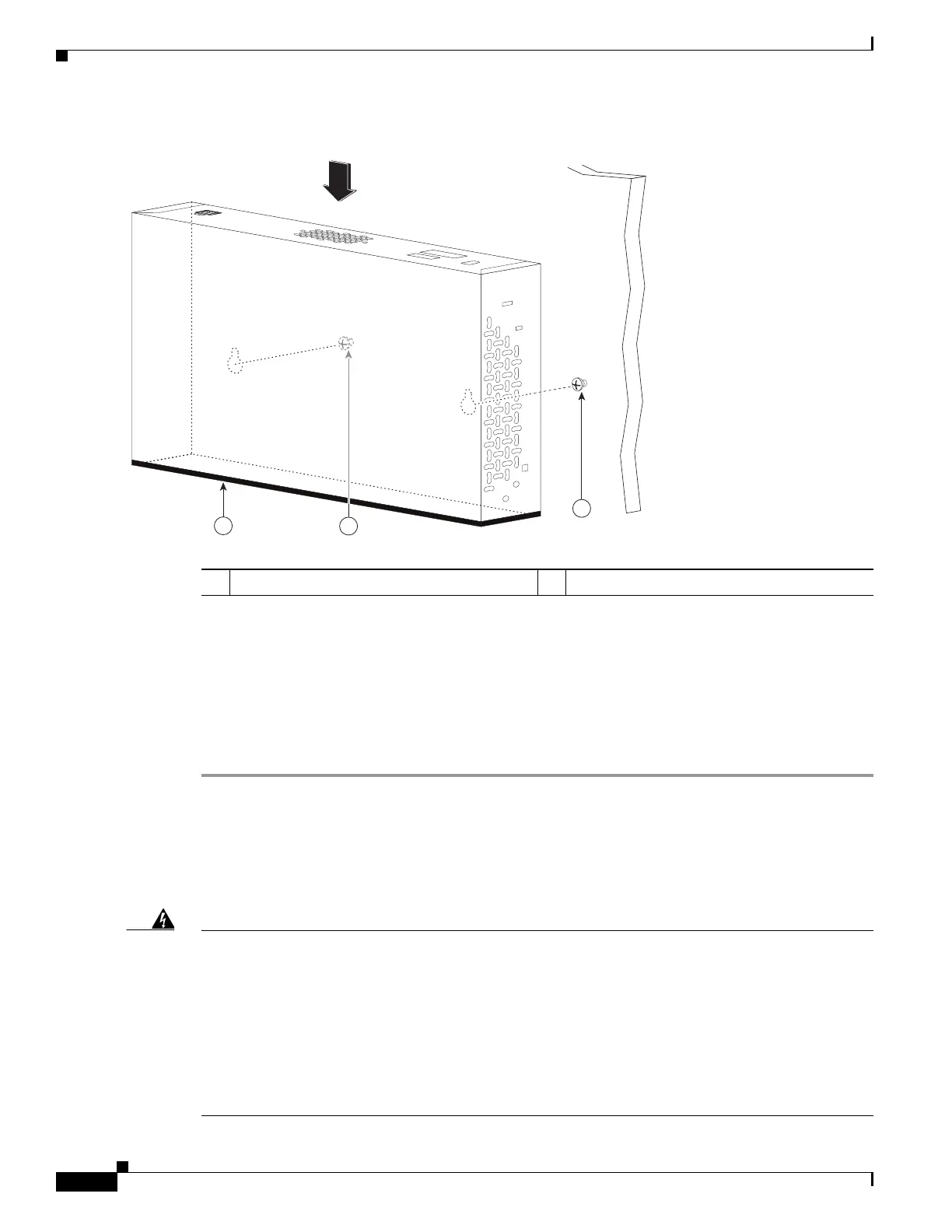

Figure 8 Place the Controller on the Mounting Screws
Step 5
After the controller is mounted ion the wall, perform the following tasks to complete the installation:
• Connecting the Controller Console Port
• Securing the Power Adapter Cable
• Connecting to the Network
Step 6 For configuration instructions about using the CLI setup program, see the “Running the Bootup Script
and Power-On Self Test” section on page 20.
Mounting the Controller in a Rack
To mount the 2504 controller in a 19-inch equipment rack, you can order an optional Optional Rack
Mount kit (AIR-CT2504-RMNT).
Warning To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions
to ensure that the system remains stable. The following guidelines are provided to ensure your safety:
• This unit should be mounted at the bottom of the rack if it is the only unit in the rack.
• When mounting this unit in a partially filled rack, load the rack from the bottom to the
top with the heaviest component at the bottom of the rack.
• If the rack is provided with stabilizing devices, install the stabilizers before mounting
or servicing the unit in the rack. Statement 1006
1 Front panel (facing down) 2 Mounting screws
282085
2
1
2

Cisco 2504 Specifications

General

Number of users	25 user(s)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Quality of Service (QoS) support	Yes
Internal	No
LED indicators	Link, Power, Status
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	5
Security algorithms	3DES, DES, MD5, SSL/TLS, WPA, WPA2
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 95 %
Safety	UL 60950-1, EN 60950:2005, FCC 15.107, FCC 15.109, ICES-003, VCCI, EN 55022, EN 55024
Power supply type	AC
AC input frequency	50 - 60 Hz
Power requirements	100 - 240 V

Weight and Dimensions

Weight	1590 g
Dimensions (WxDxH)	271.5 x 203.2 x 43.9 mm
