Cisco 2500 Series Wireless Controller Getting Started Guide
Installing the Controller
To install the controller in a rack, follow these steps.
Step 1 Attach the 19-inch brackets to each side of the controller as shown in Figure 9 with #10-32 flat head
screws provided in the kit.

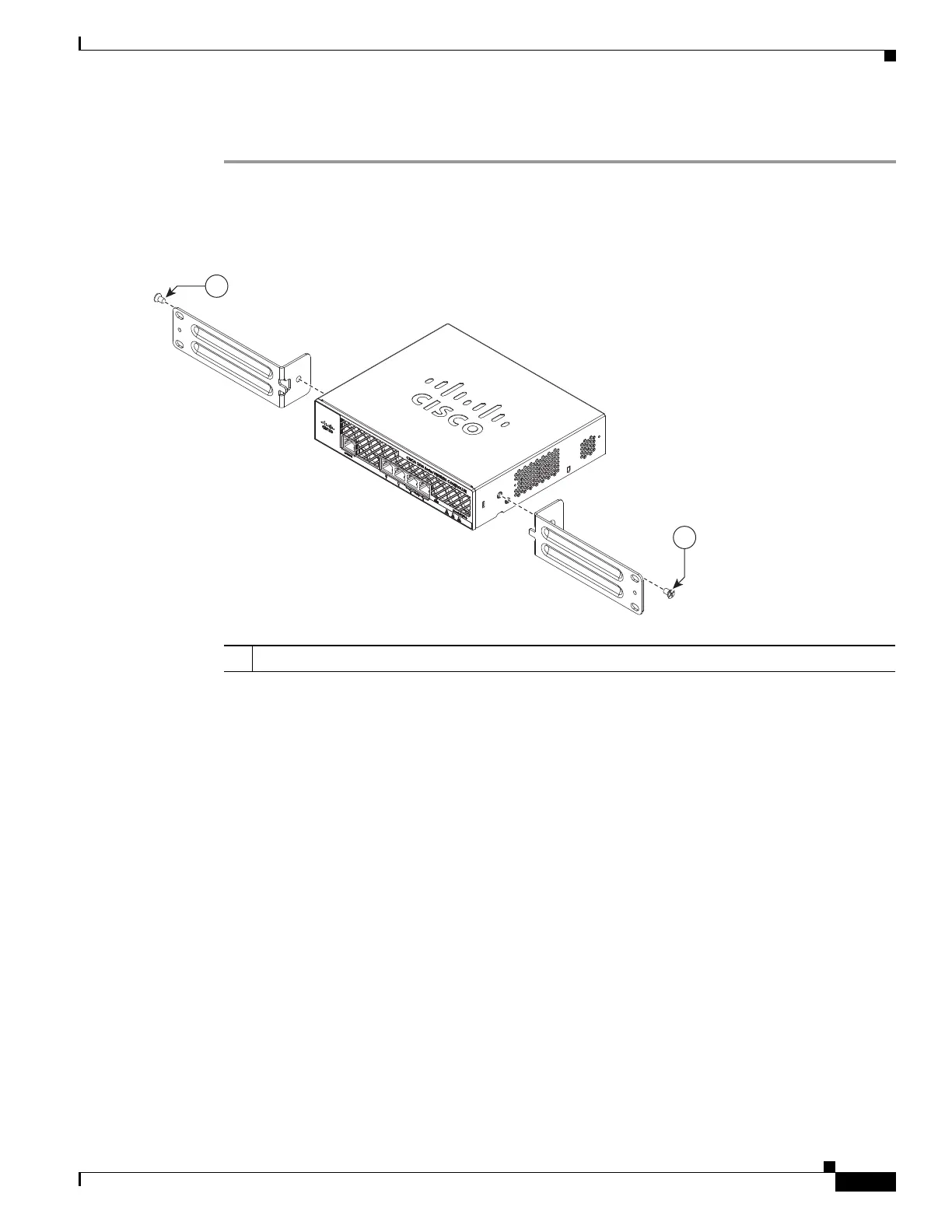

Figure 9 Attaching the 19-Inch Brackets to the Side of the Controller.
Step 2 After the brackets are attached to the sides of the controller, insert the controller into the 19-inch rack.
Use either the 10-32 pan-head screws or the 12-24 slotted head screws to secure the controller in the
rack, as shown in Figure 10.
1 #10-32 flat head screws (mounting screws for each side of the controller)
282082
RACK MOUNT
1
1

Cisco 2504 Specifications

General

Number of users	25 user(s)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Quality of Service (QoS) support	Yes
Internal	No
LED indicators	Link, Power, Status
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	5
Security algorithms	3DES, DES, MD5, SSL/TLS, WPA, WPA2
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 95 %
Safety	UL 60950-1, EN 60950:2005, FCC 15.107, FCC 15.109, ICES-003, VCCI, EN 55022, EN 55024
Power supply type	AC
AC input frequency	50 - 60 Hz
Power requirements	100 - 240 V

Weight and Dimensions

Weight	1590 g
Dimensions (WxDxH)	271.5 x 203.2 x 43.9 mm
