Cisco 2500 Series Wireless Controller Getting Started Guide
Installing the Controller

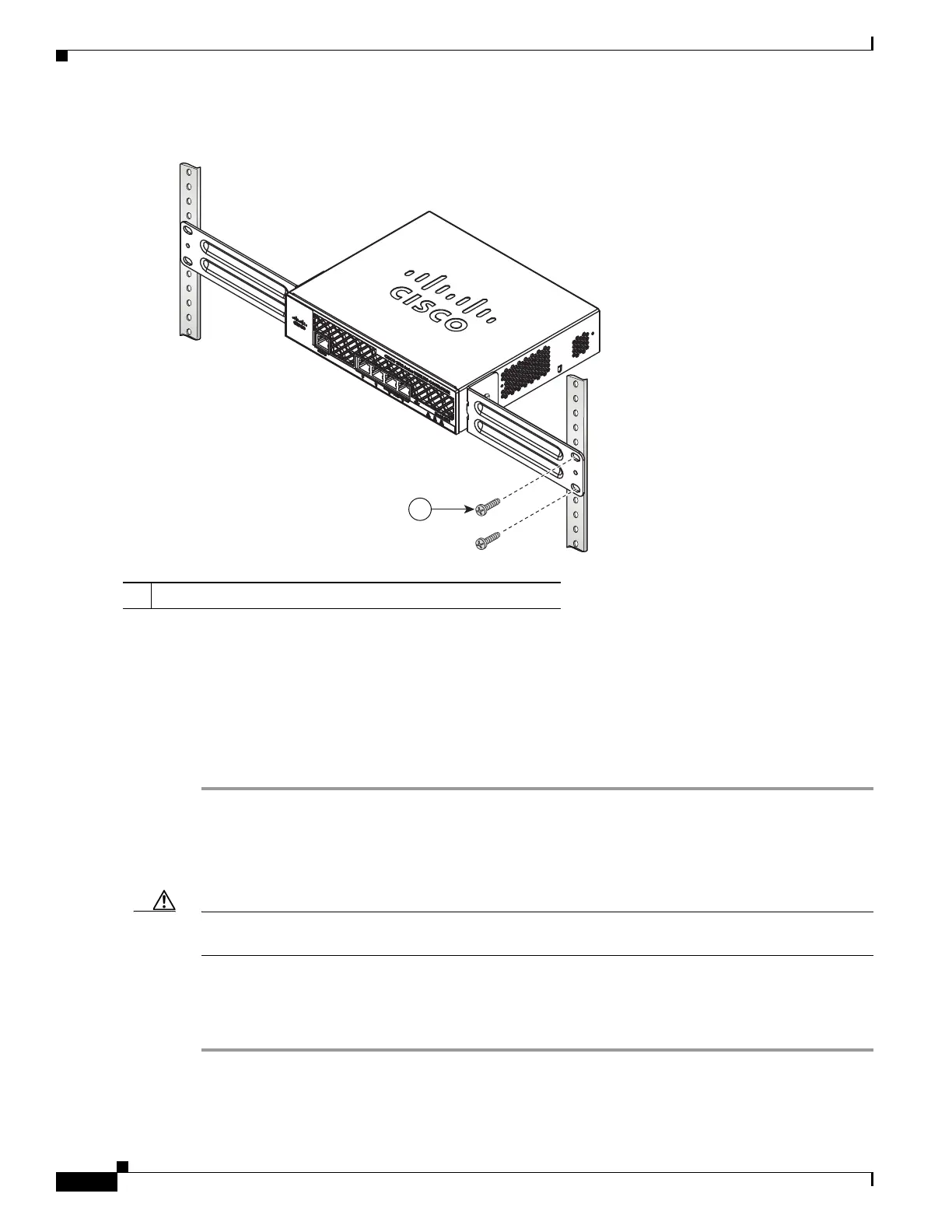

Figure 10 Mounting the Controller in a 19-Inch Rack
Step 3 After the controller is mounted in the rack, perform the following tasks to complete the installation:
• Connecting the Controller Console Port
• Securing the Power Adapter Cable
• Connecting to the Network
Step 4 For configuration instructions about using the CLI setup program, see the “Running the Bootup Script
and Power-On Self Test” section on page 20.
Connecting the Controller Console Port
Caution Do not connect a Power over Ethernet (PoE) cable to the console port. Doing so will damage the
controller.
Before you can configure the 2504 controller for basic operations, you need to connect it to a PC that
uses a VT-100 terminal emulator (such as HyperTerminal, ProComm, Minicom, or Tip). To connect the
PC to the controller console port, follow these steps:
Step 1 Plug the RJ-45 connector on a null-modem serial cable into the controller console port and the other end
of the cable into the serial port of the PC.
1 #10-32 pan-head screws or #12-24 slotted head screws
1
282086

Cisco 2504 Specifications

General

Number of users	25 user(s)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Quality of Service (QoS) support	Yes
Internal	No
LED indicators	Link, Power, Status
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	5
Security algorithms	3DES, DES, MD5, SSL/TLS, WPA, WPA2
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 95 %
Safety	UL 60950-1, EN 60950:2005, FCC 15.107, FCC 15.109, ICES-003, VCCI, EN 55022, EN 55024
Power supply type	AC
AC input frequency	50 - 60 Hz
Power requirements	100 - 240 V

Weight and Dimensions

Weight	1590 g
Dimensions (WxDxH)	271.5 x 203.2 x 43.9 mm
