Cisco 2600 Series - Connecting to the Console Port

3-21
Cisco 2600 Series Routers Hardware Installation Guide
OL-2171-02
Chapter 3 Installing the Router
Connecting to a Network
Connecting to the Console Port
To connect a terminal (an ASCII terminal or a PC running terminal emulation software) to the console
port on the router:
Step 1 Connect the terminal using the blue RJ-45-to-RJ-45 console cable and an RJ-45-to-DB-9 adapter
(labeled TERMINAL) or the blue RJ-45-to-DB-9 adapter cable. (See Figure 3-27.)

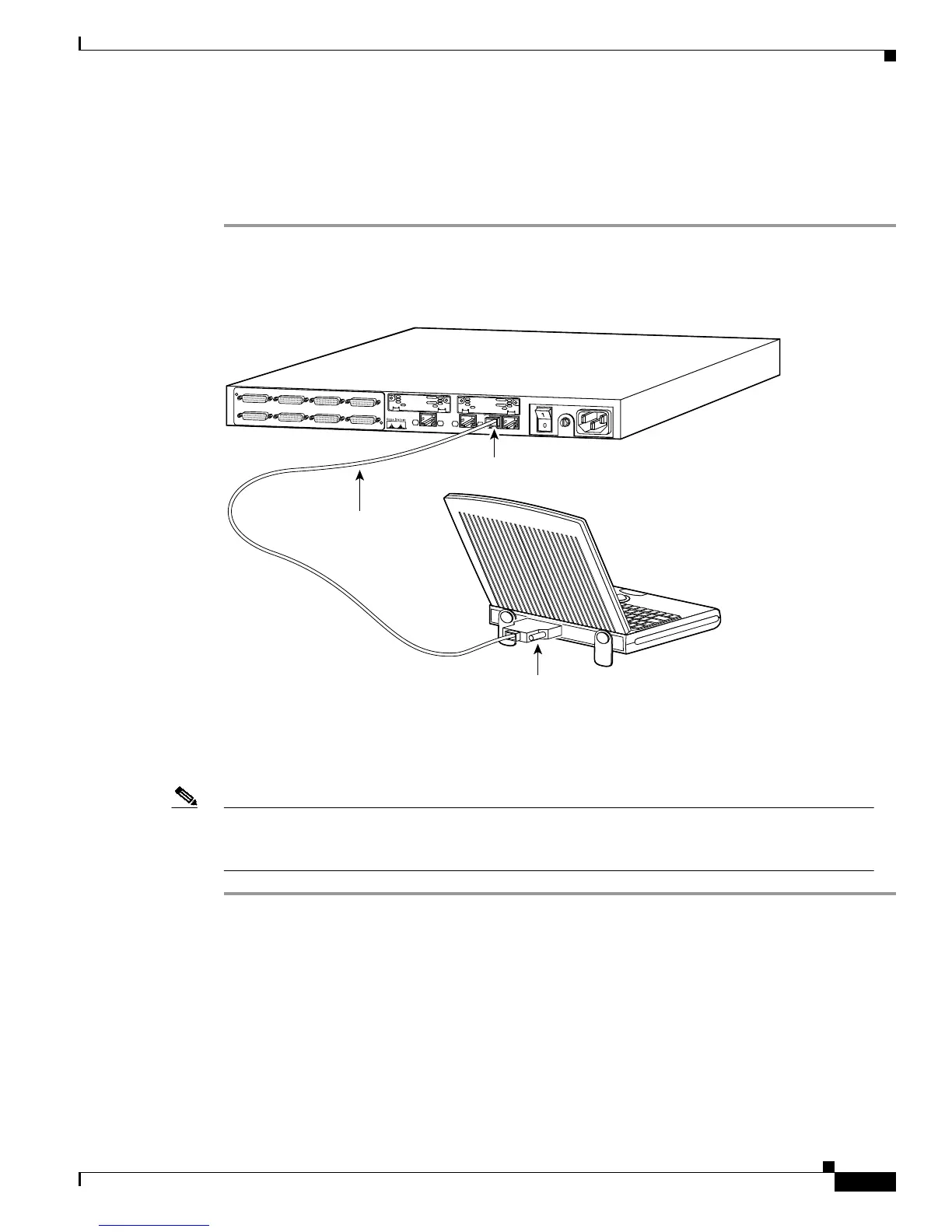

Figure 3-27 Connecting a Console Terminal
Step 2 Configure your terminal or PC terminal emulation software for 9600 baud, 8 data bits, no parity, and
2 stop bits.
Note For information on console port pinouts, refer to the online document Cisco Modular Access Router
Cabling Specifications on Cisco.com and the Documentation CD-ROM that accompanied your
router.
SEE MANUAL BEFORE INSTALLATION
SERIAL 1
SERIAL 0
CONN
CONN
WIC
2A/S
SEE MANUAL BEFORE INSTALLATION
SERIAL 1
SERIAL 0
CONN
CONN
WIC
2A/S
Cisco 2611
100-240V– 1A
50/60 Hz 47 W
W0
AUX
CONSOLE
ETHERNET 0
ACT
LINKACTETHERNET 1LINK
RJ-45 to RJ-45
rollover cable
RJ-45 to DB-9 or
RJ-45-to-DB-25 adapter
Console port (RJ-45)
Laptop computer
H11493
