Cisco 2800 Series Quick Start Guide

23
Step 6 Install the plastic covers over the terminals. (See Figure 19 or Figure 20.)
Warning The safety cover is an integral part of the product. Do not operate the unit without the safety cover installed.
Operating the unit without the cover in place will invalidate the safety approvals and pose a risk of fire and
electrical hazards. Statement 117
Step 7 Organize and secure the wires using cable ties as shown in Figure 19 or Figure 20. Make sure that the wires do not
project above or below the front panel of the router.
Step 8 Turn on power to the DC circuit. Be sure to remove tape used to secure the circuit-breaker switch in the OFF position.

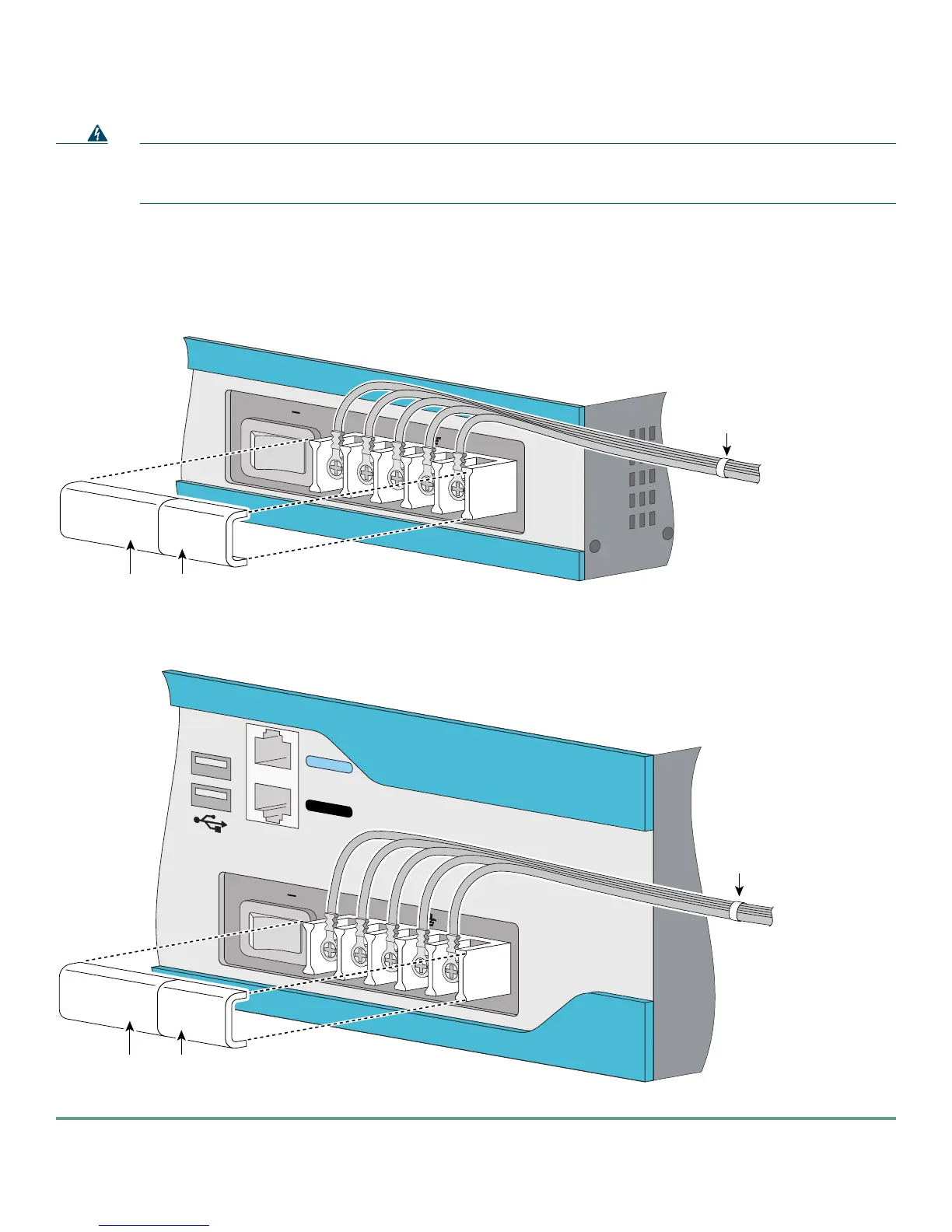

Figure 19 DC Wire Routing and Attachment for Cisco 2811 Routers
Figure 20 DC Wire Routing and Attachment for Cisco 2821 and Cisco 2851 Routers
111814
From DC
power
source
Cable tie
A
B
-
+
+
-
Plastic covers
24-60V --- 8A
CONSOLE
AUX
A
B
-
+
+
-
24-60V --- 12A
From DC
power
source
Cable tie
0
1
111815
Plastic covers

Cisco 2800 Series Specifications

General

Power Supply	Internal power supply
Product Type	Router
Form Factor	Rack-mountable
Connectivity Technology	Wired
Power Device	Internal power supply
Operating System	Cisco IOS
Integrated Services	Security, voice
WAN Interfaces	T1/E1, Serial
LAN Interfaces	Fast Ethernet, Gigabit Ethernet
Expansion Slots	4
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Network/Transport Protocol	IP, TCP
Remote Management Protocol	SNMP, Telnet
Features	VPN support, Quality of Service (QoS), VLAN support
Voltage Required	AC 100-240 V
Security Features	Firewall, VPN, Access Control Lists (ACLs)
