Cisco 2800 Series Quick Start Guide

25
Note When source A and source B are wired with common negative terminals, as in Figure 22, discharging does not occur
and there is no restriction requiring that source A and source B voltages be equal.

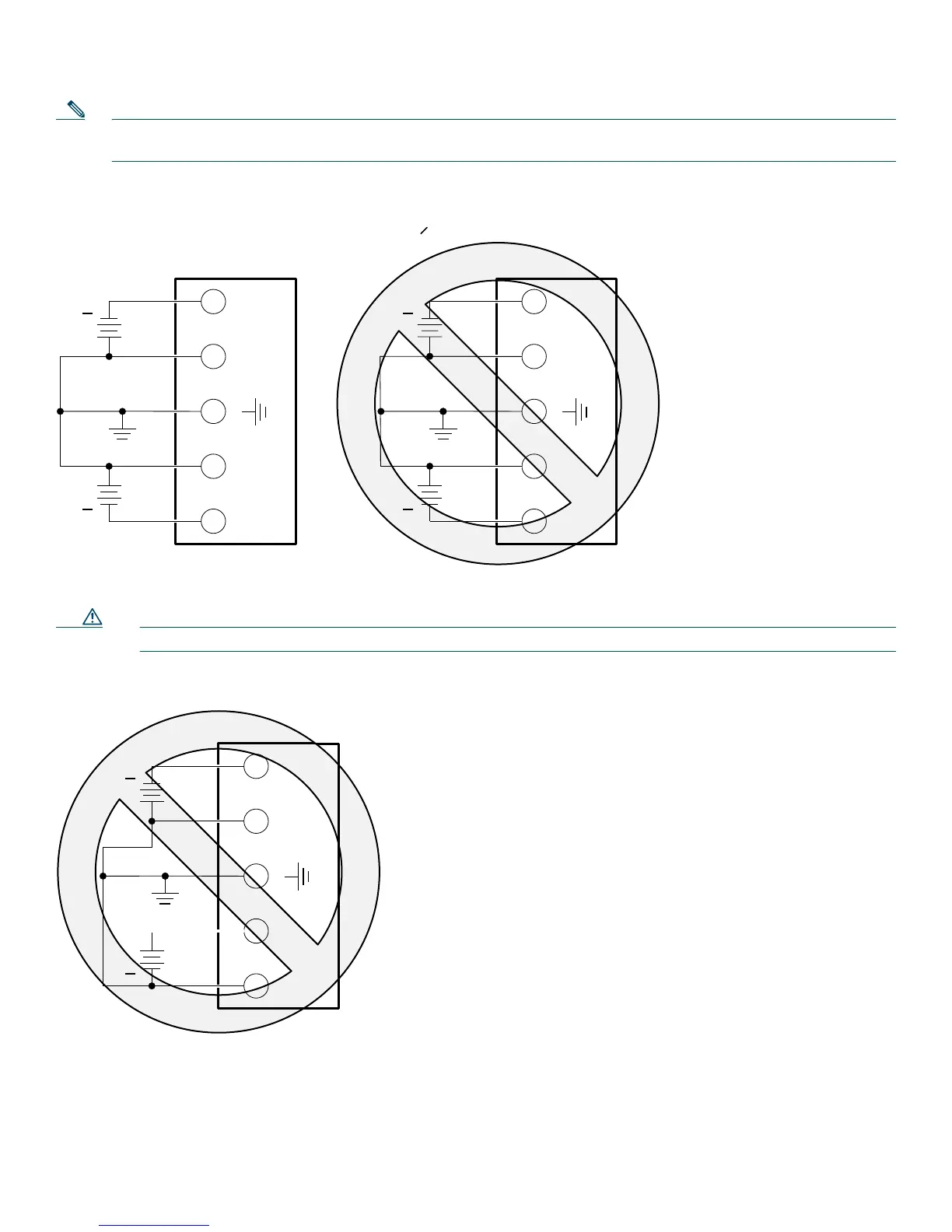

Figure 23 Connecting Source A and Source B with Common Positive Terminals
In Figure 24, source A and source B are wired with opposite polarity grounds. Do not use this configuration.
Caution Do not use the DC input configuration shown in Figure 24.
Figure 24 Source A and Source B Wired with Opposite-Polarity Grounds
A-
A+
B+
B-
Va
Vb
+
+
127040
A-
A+
B+
B-
Va
Vb
+
+
A-
Va voltage = Vb voltage (within 0.25 V)
Va voltage = Vb voltage (greater than 0.25 V)
A+
B+
B-
Va
Vb
+
+
A-
127041
A+
B+
B-
Va
Vb
+
+
A-
A+
B+
B-
Va
Vb
+
+

Cisco 2800 Series Specifications

General

Power Supply	Internal power supply
Product Type	Router
Form Factor	Rack-mountable
Connectivity Technology	Wired
Power Device	Internal power supply
Operating System	Cisco IOS
Integrated Services	Security, voice
WAN Interfaces	T1/E1, Serial
LAN Interfaces	Fast Ethernet, Gigabit Ethernet
Expansion Slots	4
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Network/Transport Protocol	IP, TCP
Remote Management Protocol	SNMP, Telnet
Features	VPN support, Quality of Service (QoS), VLAN support
Voltage Required	AC 100-240 V
Security Features	Firewall, VPN, Access Control Lists (ACLs)
