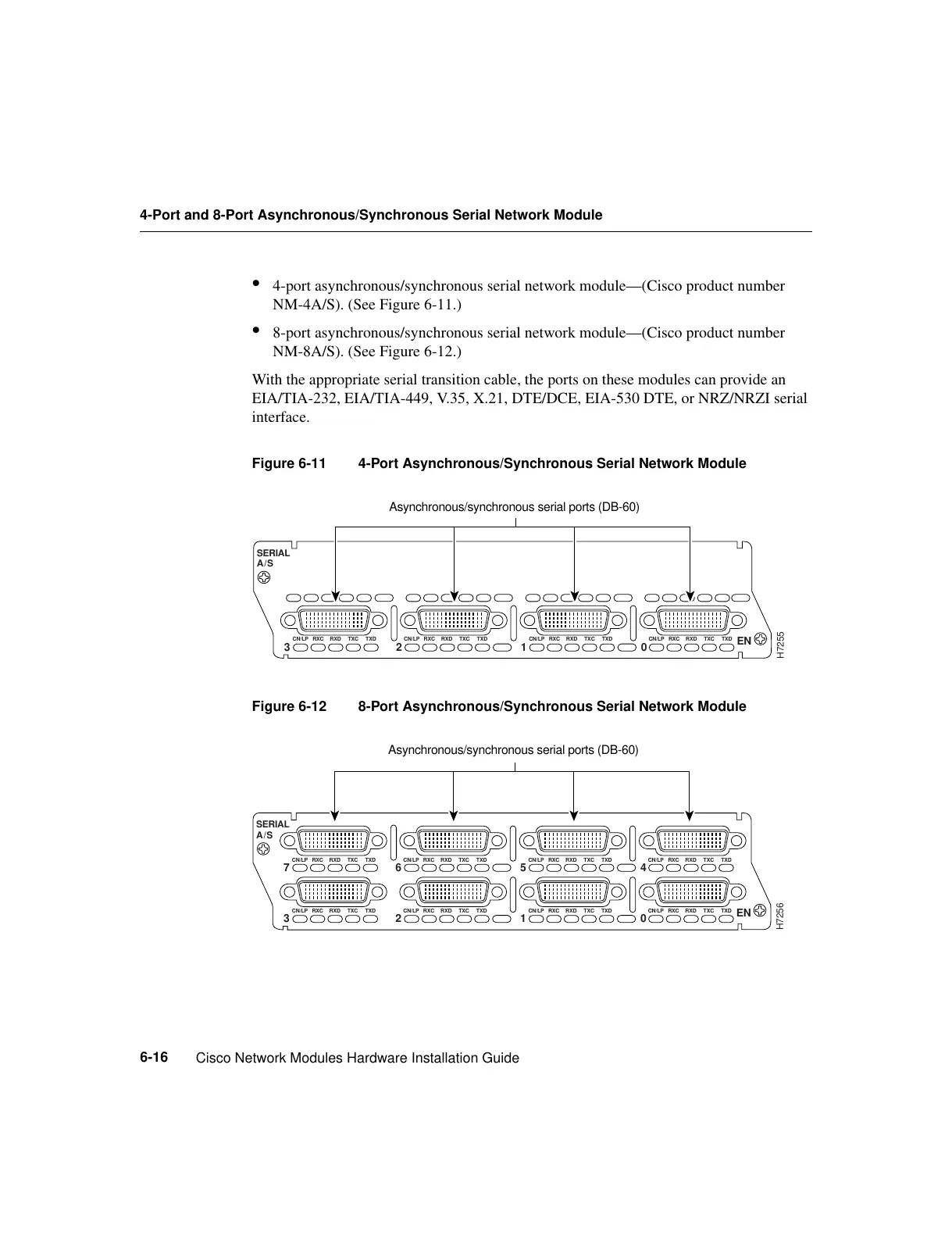

4-Port and 8-Port Asynchronous/Synchronous Serial Network Module
Cisco Network Modules Hardware Installation Guide
6-16
4-port asynchronous/synchronous serial network module—(Cisco product number
NM-4A/S). (See Figure 6-11.)
8-port asynchronous/synchronous serial network module—(Cisco product number
NM-8A/S). (See Figure 6-12.)
With the appropriate serial transition cable, the ports on these modules can provide an
EIA/TIA-232, EIA/TIA-449, V.35, X.21, DTE/DCE, EIA-530 DTE, or NRZ/NRZI serial
interface.
Figure 6-11 4-Port Asynchronous/Synchronous Serial Network Module
Figure 6-12 8-Port Asynchronous/Synchronous Serial Network Module
CN/LP
210
3
RXC RXD TXC TXD CN/LP RXC RXD TXC TXD CN/LP RXC RXD TXC TXD CN/LP RXC RXD TXC TXD
EN
SERIAL
A/S
H7255
Asynchronous/synchronous serial ports (DB-60)
CN/LP
210
3
RXC RXD TXC TXD CN/LP RXC RXD TXC TXD CN/LP RXC RXD TXC TXD CN/LP RXC RXD TXC TXD
EN
SERIAL
A/S
H7256
CN/LP
654
7
RXC RXD TXC TXD CN/LP RXC RXD TXC TXD CN/LP RXC RXD TXC TXD CN/LP RXC RXD TXC TXD
Asynchronous/synchronous serial ports (DB-60)
