Chapter 2 Chassis Overview
Chassis Overview
Figure 2-1 shows the front view of the Cisco NCS 6008 chassis.

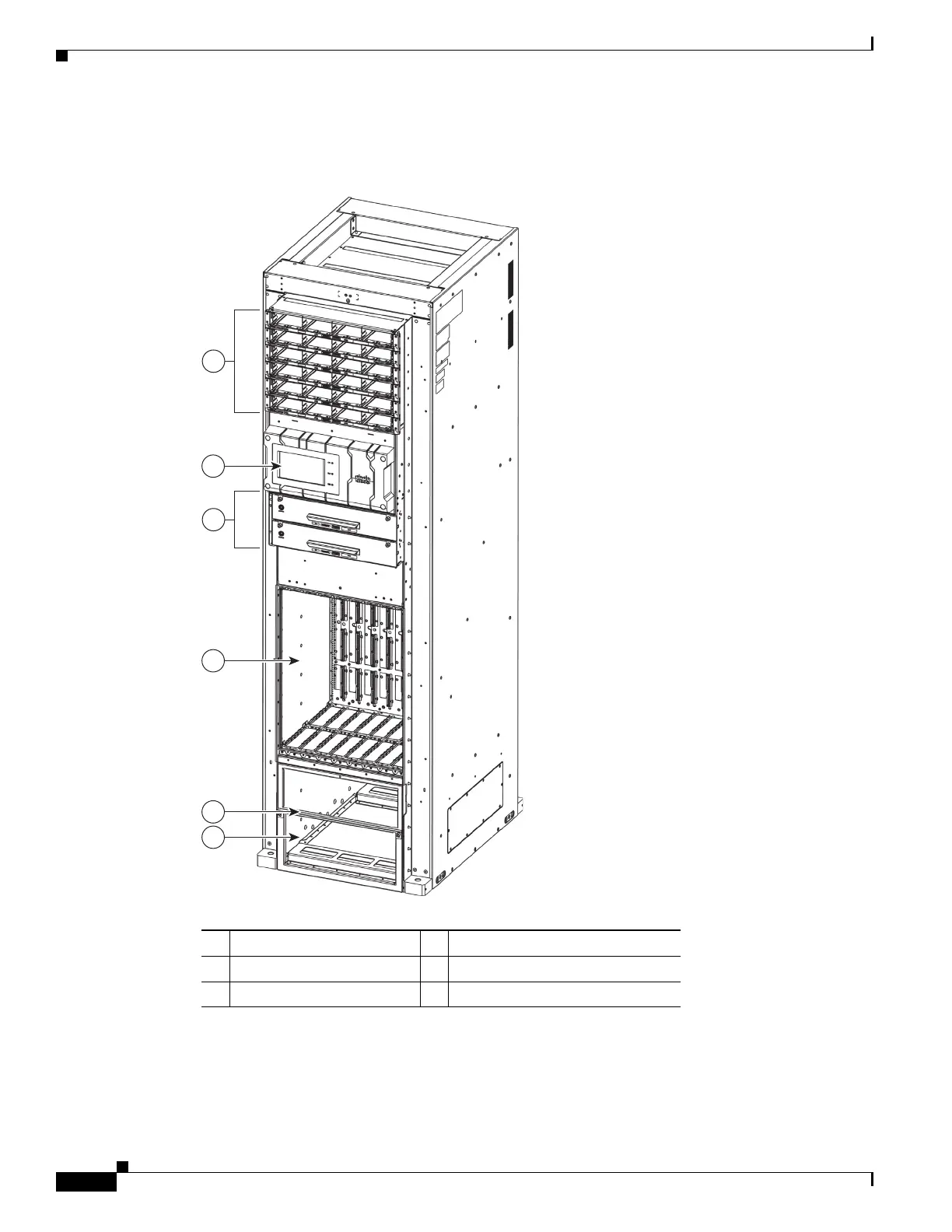

Figure 2-1 Front View of the Cisco NCS 6008 Chassis
1 Power trays (6) 4 Card cage with eight LC slots
2 Craft display panel 5 Air filter panel
3 Fan trays (2) 6 Air inlet plenum
304091
2
4
5
6
1
3
