Cisco Network Convergence System 6000 Series Routers Hardware Installation Guide
OL-29234-02
Chapter 3 Installing the Exterior Cosmetics
Installing the Front Exterior Cosmetics
Steps
To install the front exterior cosmetics (Figure 3-3), perform the following steps:
Step 1 Unpack all cosmetic parts.

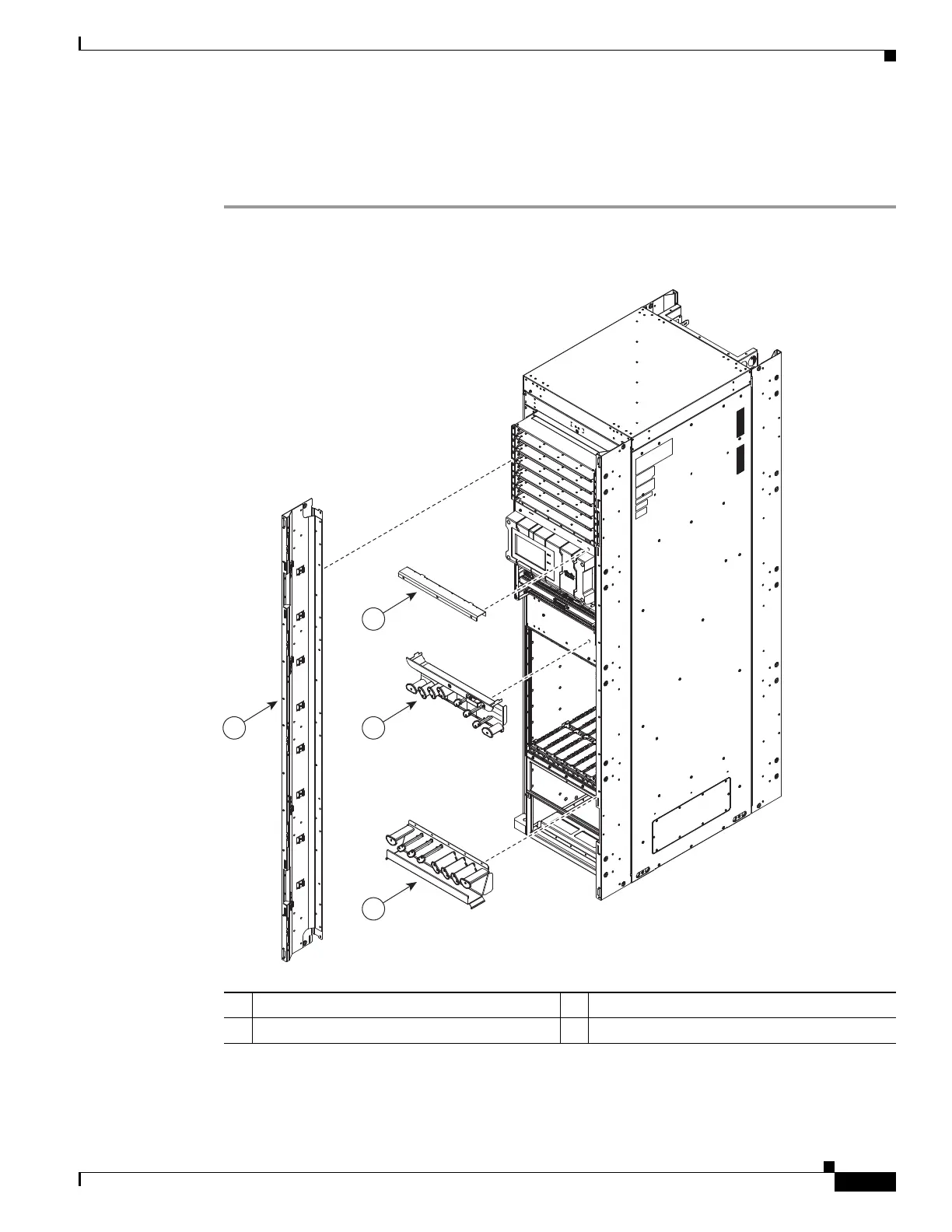

Figure 3-3 Exterior Cosmetics for the Front of the Chassis
1 Left vertical cable trough 3 Upper horizontal cable management bracket
2 Front door alignment bracket 4 Lower horizontal cable management bracket
2
3
4
1
