Before you begin
The DIN Rail kit is ordered separately.

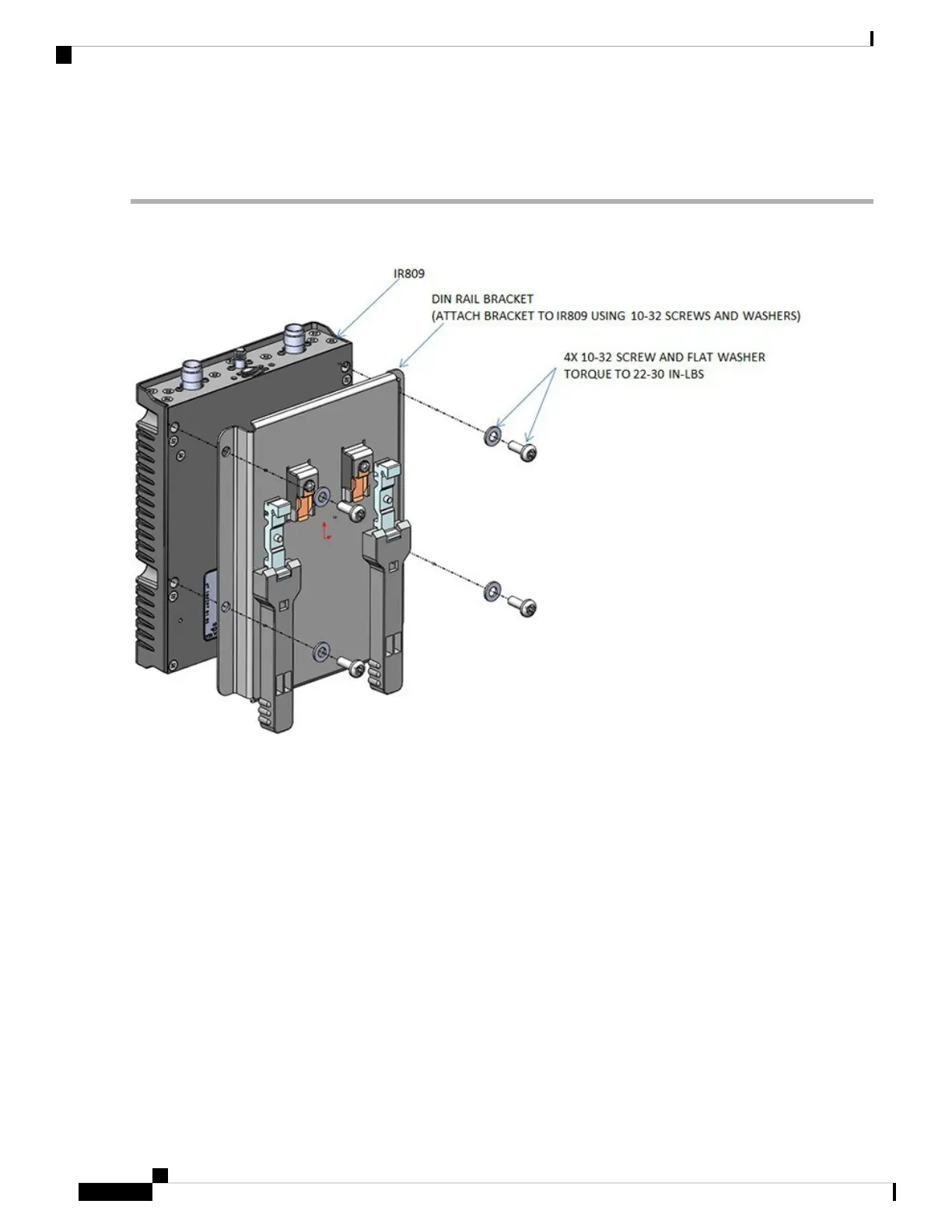

Step 1 Attach the DIN rail bracket to the back of the router. Align the DIN rail bracket on the back of the router and secure/attach
it to the 4 mounting points using the screws provided. See the following figure.
Step 2 Once the bracket is attached to the router, it can be mounted onto the DIN Rail. See the following figure.
Cisco 809 Industrial Integrated Services Router Hardware Installation Guide
26
Installing the Router
Installing a DIN Rail
