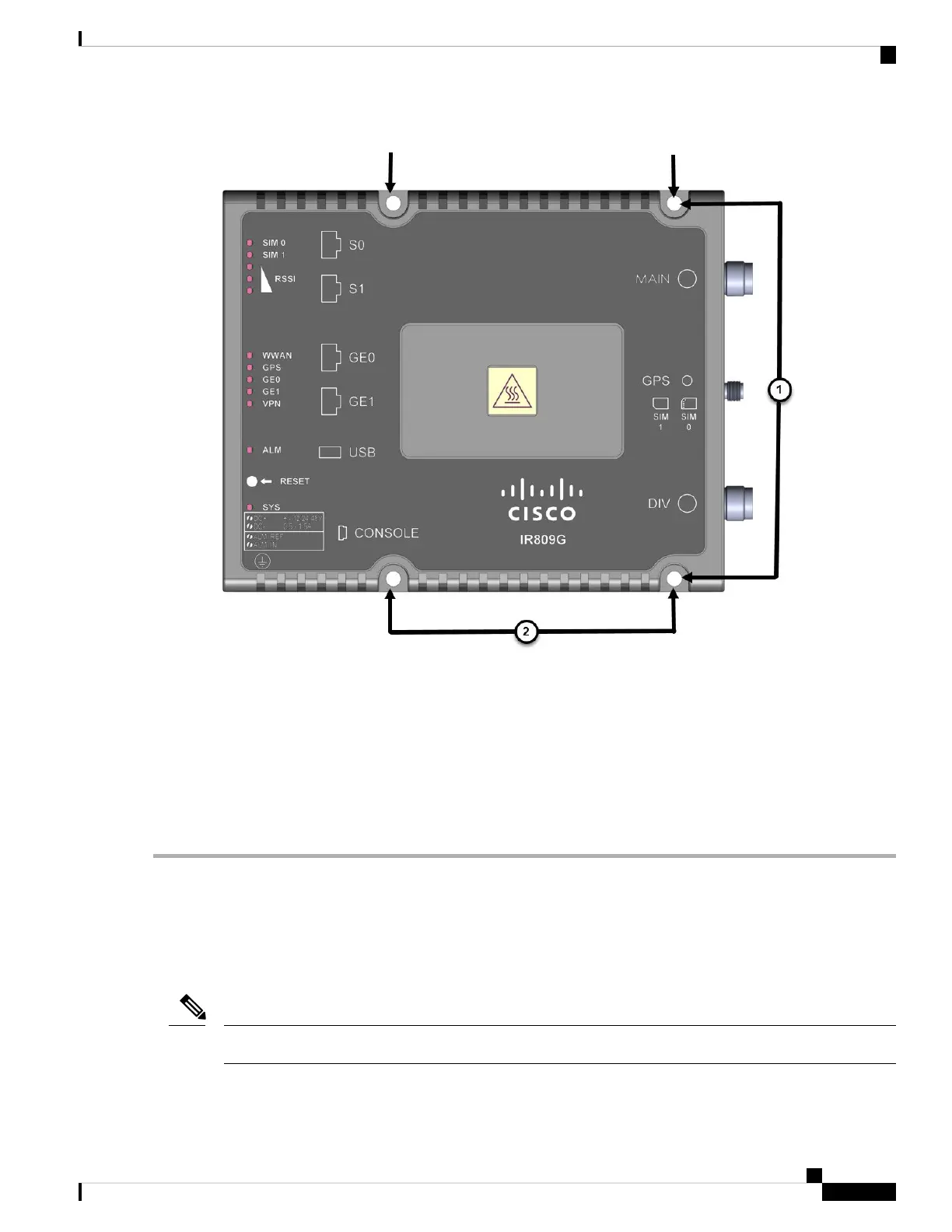

Step 2 Install the router to a wall stud using two number-10 wood screws, round- or pan-head, with number-10 washers or two
number-10 washer-head screws. The screws must be long enough to penetrate at least 1.0 inch (25.4 mm) into the
supporting wood or metal wall stud.
For hollow-wall mounting, each bracket requires two wall anchors with washers. Wall anchors and washers
must be size number 10.
Note
Step 3 Route the cables so that they do not put a strain on the connectors or mounting hardware. To comply with IP 40, cables
should be routed down relative to the router to prevent water from traveling on the cables.
Installing a DIN Rail
The DIN Rail can be installed in two different orientations. With the cable side of the device facing up or
down. The DIN Rail bracket can be mounted on the front or the back of the router.
The IR809 meets IP30 rating when mounted vertically.
Note
To attach the Cisco IR809 to a DIN rail, follow these steps:
Cisco 809 Industrial Integrated Services Router Hardware Installation Guide
25
Installing the Router
Installing a DIN Rail
