Cisco Integrated Services Router Hardware Installation Guide
Chapter 3 Connecting the Router
Cisco 860, 880, 890 Series
Step 4 Close the locking bracket, as shown in Figure 3-16.

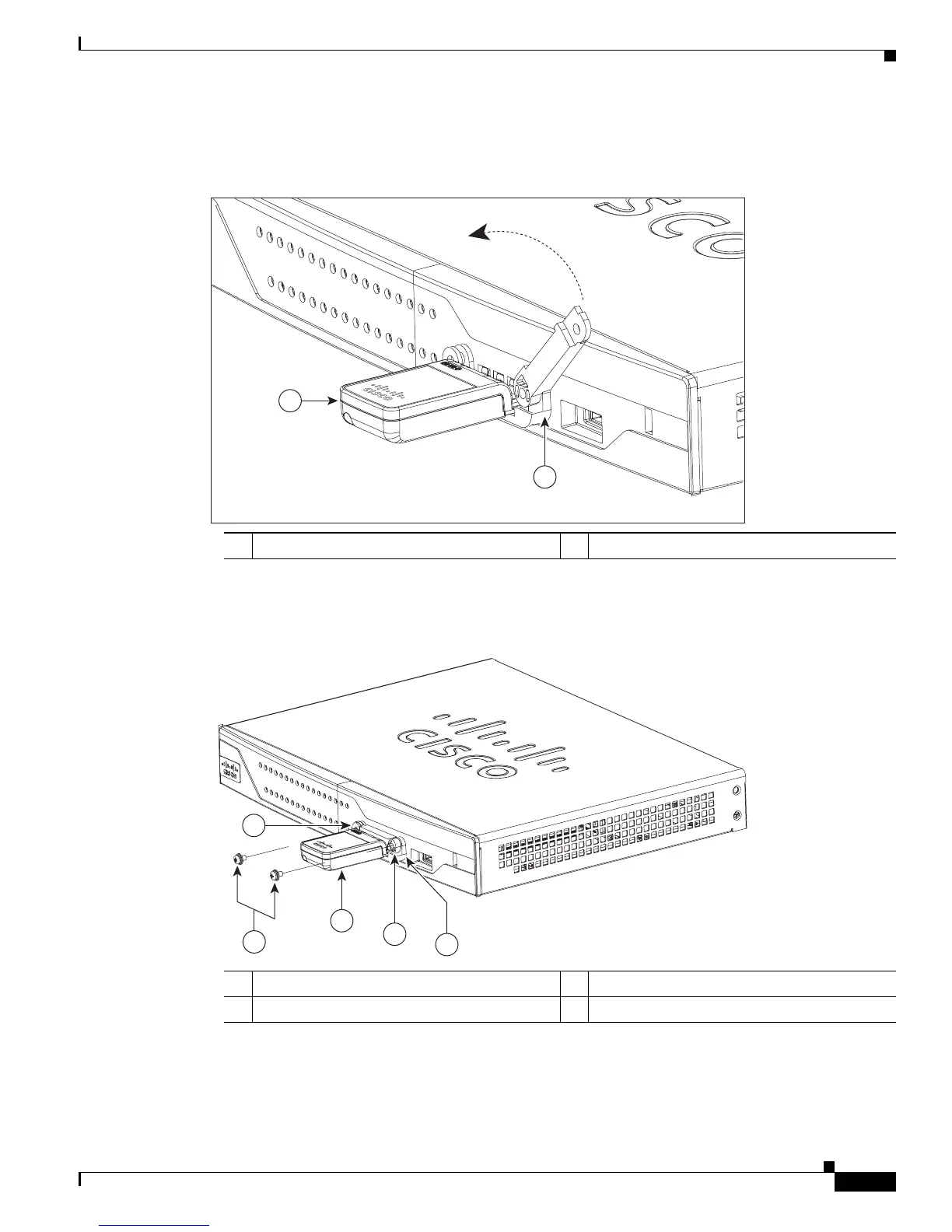

Figure 3-16 Closing the Locking Bracket
Step 5
Insert the screws, as shown in Figure 3-17, and tighten with a number 2 Phillips screwdriver.
Figure 3-17 Inserting the Screws
Step 6 To connect the antenna to the 3G card, insert the antenna connector into the antenna connector receptacle
on the 3G card.
1 3G card 2 Locking bracket
1
2
271580
1 3G card 3 Screws
2 Locking bracket 4 Screw holes on the locking bracket
271476
3
4
2
1
4
