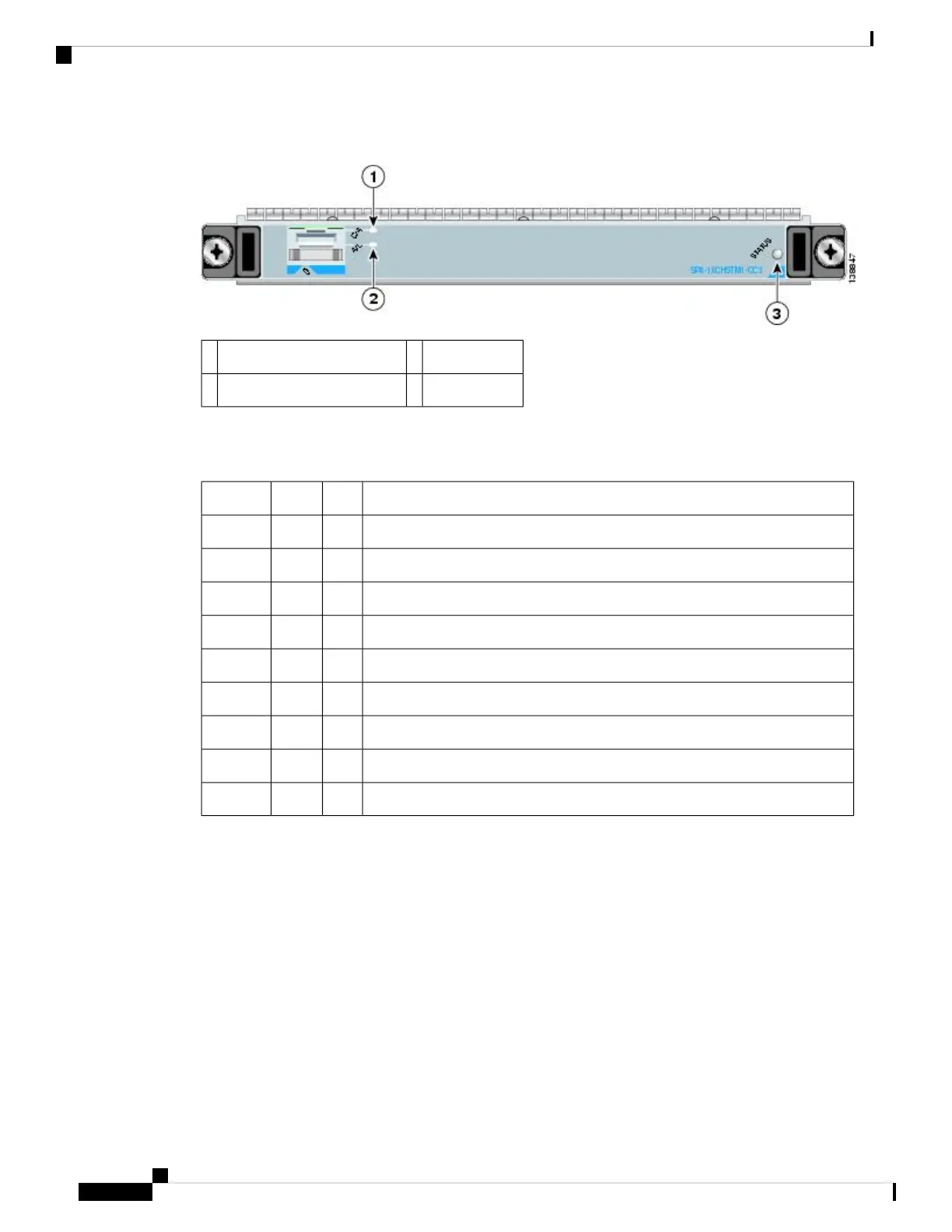

Figure 25: 1-Port Channelized STM-1/OC-3 SPA Faceplate
STATUS LED3C/A (Carrier/Alarm) LED1
A/L (Active Loopback) LED2
The 1-Port Channelized STM-1/OC-3 SPALEDs are described in the following table.
Table 25: 1-Port Channelized STM-1/OC-3 SPA LEDs
MeaningStateColorLED Label
Port is not enabled by software.OffOffC/A
Port is enabled by software, and there is a valid T3 signal without any alarms.OnGreen
Port is enabled by software, and there is at least one alarm.OnAmber
Port is not enabled by software.OffOffA/L
Port is enabled by software, loopback is off.OnGreen
Port is enabled by software, loopback is on.OnAmber
SPA power is off.OffOffSTATUS
SPA is ready and operational.OnGreen
SPA power is on and good, and SPA is being configured.OnAmber
1-Port Channelized STM-1/OC-3 SPA Interface Specifications
The framer processes incoming and outgoing SONET or SDH frames. The framer operates at OC-3/STM-1
line rates (155.52 Mbps).
Packet data is transported with a user-configured encapsulation (such as Point-to-Point Protocol [PPP]) and
is mapped into the STS-3/STM-1 frame.
The 1-Port Channelized STM-1/OC-3 SPA interface is compliant with RFC 1619, PPP over SONET/SDH,
and RFC 1662, PPP in HDLC-like Framing. The 1-Port Channelized STM-1/OC-3 SPA also provides support
for SNMP v1 agent (RFC 1155–1157), and Management Information Base (MIB) II (RFC 1213).
Cisco ASR 9000 Series Aggregation Services Router SIP and SPA Hardware Installation Guide
36
Overview: Cisco ASR 9000 Series Router Shared Port Adapters
1-Port Channelized STM-1/OC-3 SPA Interface Specifications
