Access Point Mounting Instructions
OL-166451-01
Mounting Hardware
Additional Adapters for Channel and Beam Ceiling Rails
The most common type of ceiling rail (the supports for the ceiling tiles) is the T-rail. You can attach a
ceiling grid clip directly to a T-rail ceiling rail. However, other types of ceiling rails, such as channel
rails and beam rails, require an additional adapter clip (AIR-CHNL-ADAPTER). You need two adapter
clips for each access point. Setscrews on the clips hold them securely on the ceiling rail.

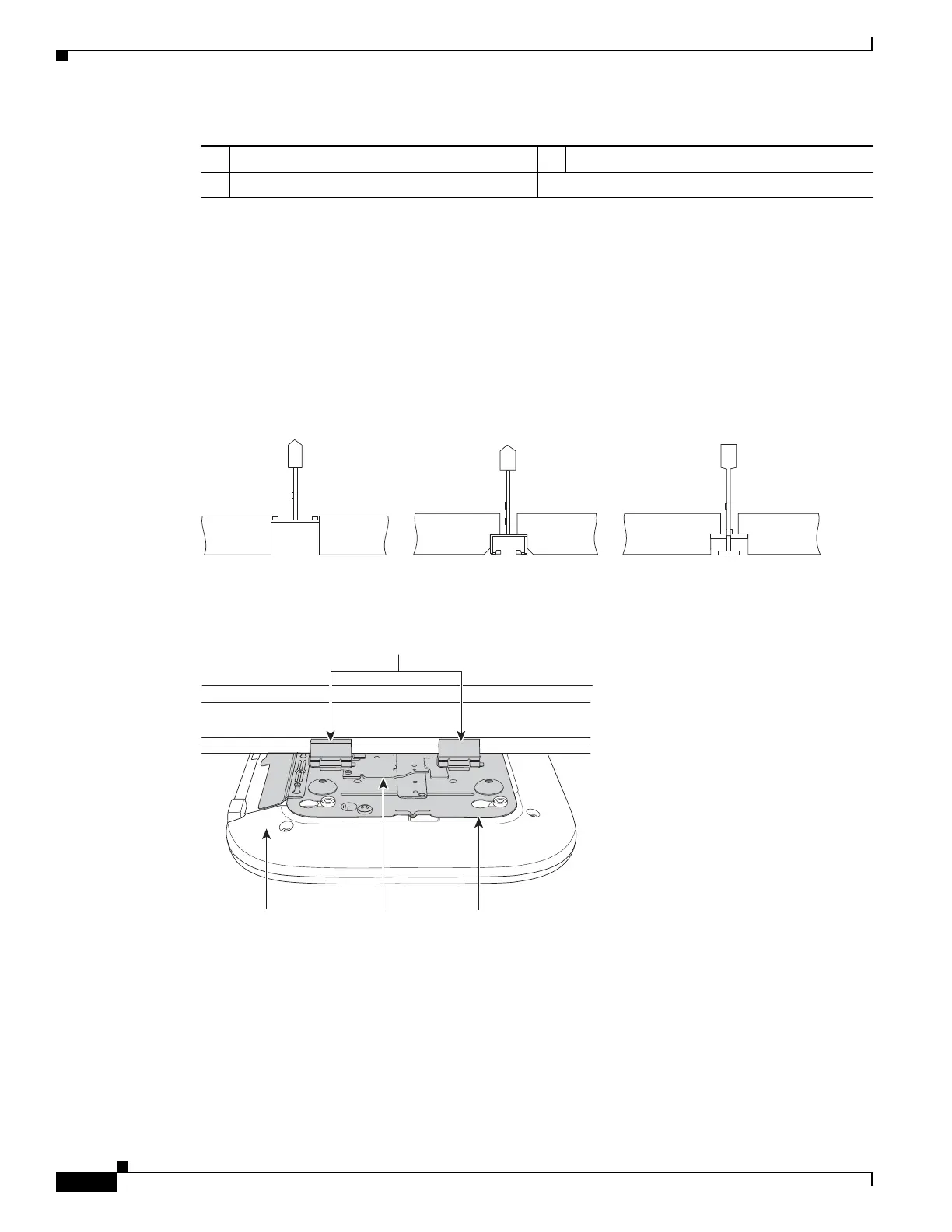

Figure 4 shows the three types of ceiling rails: T-rail, channel, and beam. Figure 5 shows an access point
installed with mounting bracket, ceiling grid clip, and adapter clips.
Figure 4 T-Rail, Channel, and Beam Ceiling Rail Types
Figure 5 Adapter Clips Installed with Ceiling Grid Clips
1 Locking screws 3 T-rail width detents (A, B, or C)
2 Bracket screw holes
281531
281532
Adapter clips
Ceiling grid
clip
Mounting
bracket
Access
point
