Cisco Aironet Series 1700/2700/3700 Access Point Deployment Guide
Cisco Aironet Series 3700 Access Point

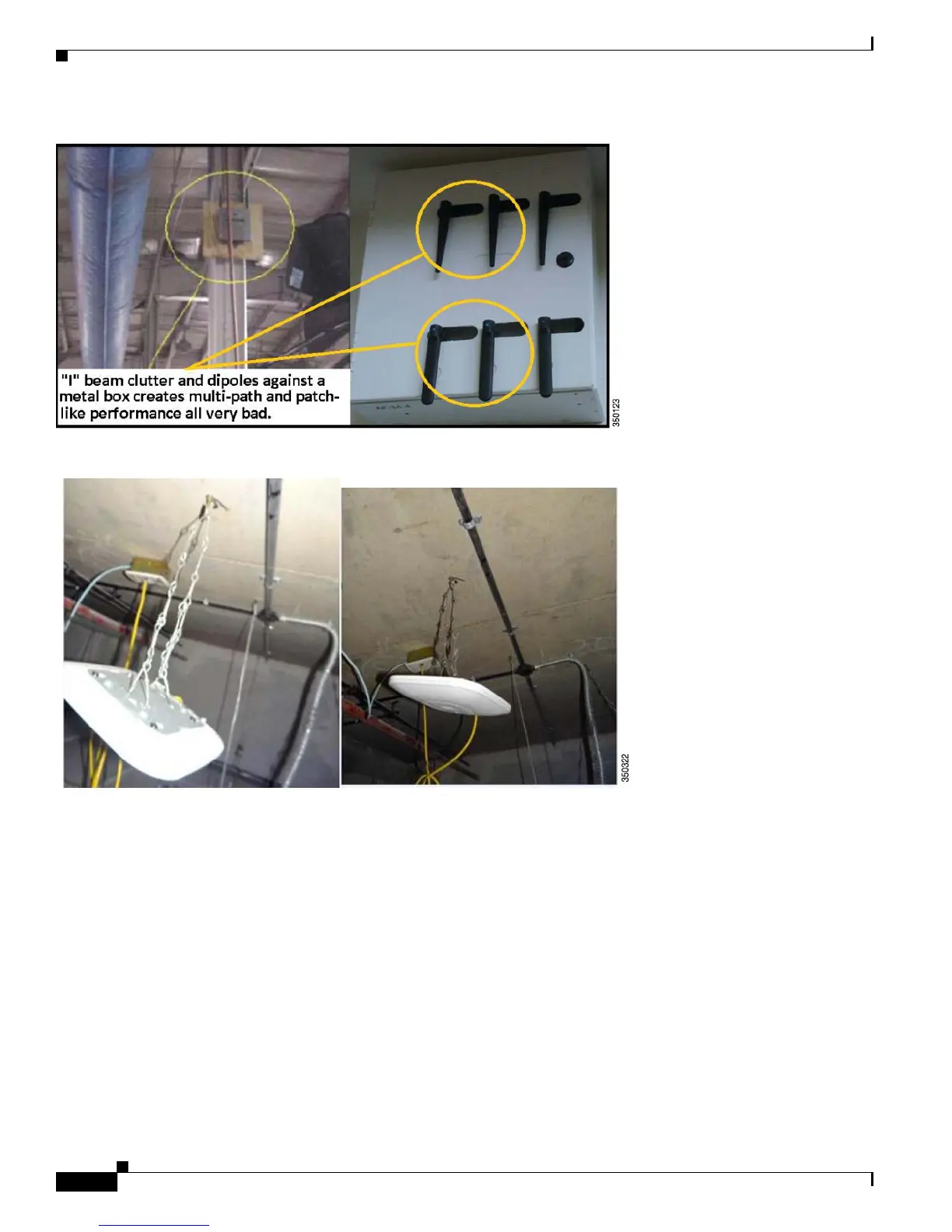

Figure 90 Example of an AP Installation Near Metal and Clutter (Again, Try to Avoid Metal and Clutter)
Figure 91 Example of a Poor Installation - Access Point Needs to be Level and Not Swing or Move About
When mounting devices, the AP should be level and secured so that it does not sway or move. Keep the AP away from metal
objects and try to place it as close to the users as possible.
