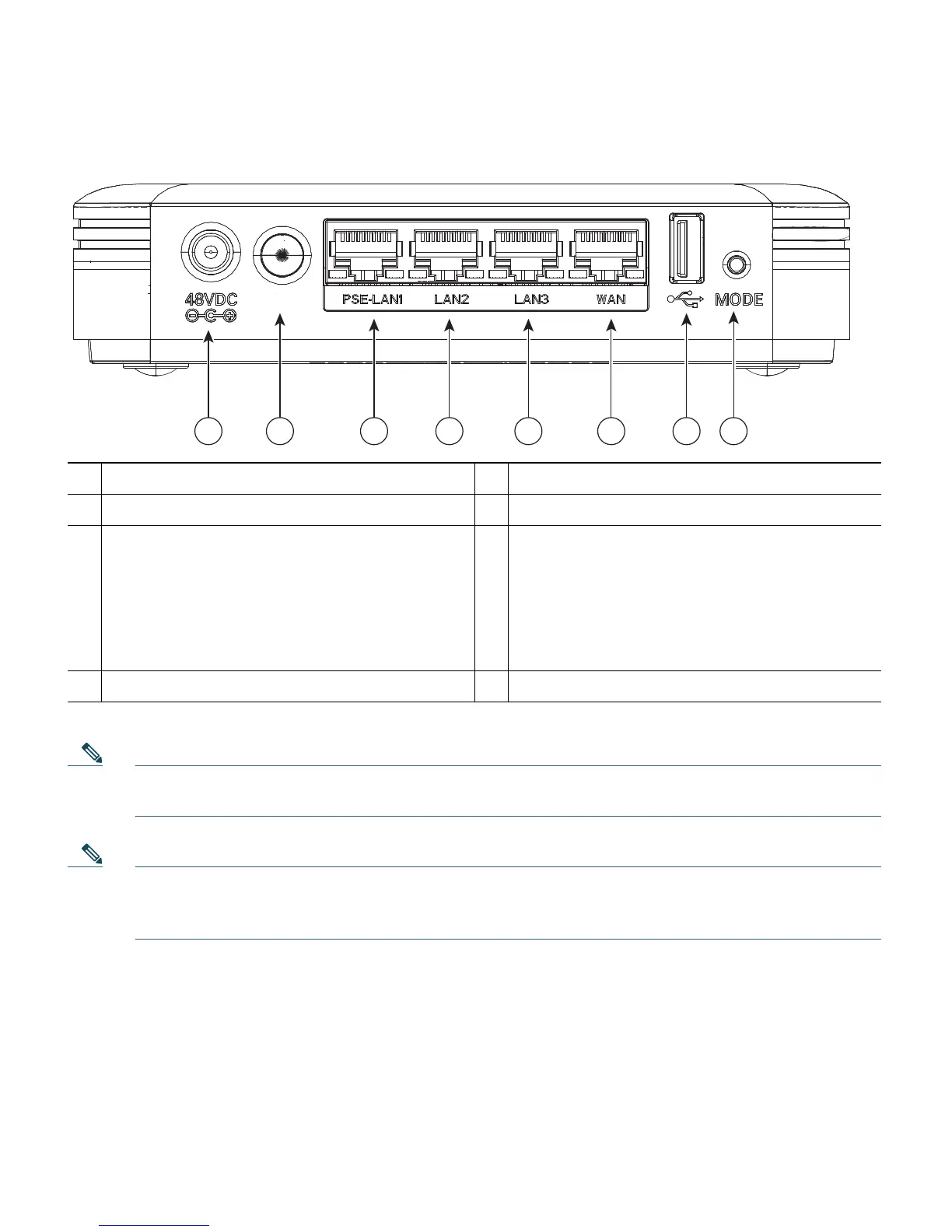

+48 VDC power port.
5
LAN port 3.
2
Power button.
6
WAN port.
3
PSE / LAN port 1.
This port provides 802.3af Power Sourcing
Equipment (PSE) PoE-Out power on the
LAN 1
Ethernet interface. When powered by
AIR-PWR-C/D= the PoE-Out power is
802.3af Class 0 (15.4W).
7
USB port.
4
LAN port 2.
8
Mode button.
Note A physical security kit AIR-SEC-50=, which is sold separately, includes RJ-45 block-out plugs
and two unlock keys using which you can restrict physical access to the Ethernet ports.
Note All the three LAN ports support Auto-MDIX. The interface automatically detects the required
cable connection type (straight through or crossover) and configures the connection
appropriately.
