Figure 27: Installing a CPU Socket Dust Cover
-Press down on the two circular marks next
to the word INSTALL.
-
Step 3 Install the CPUs to the new system:

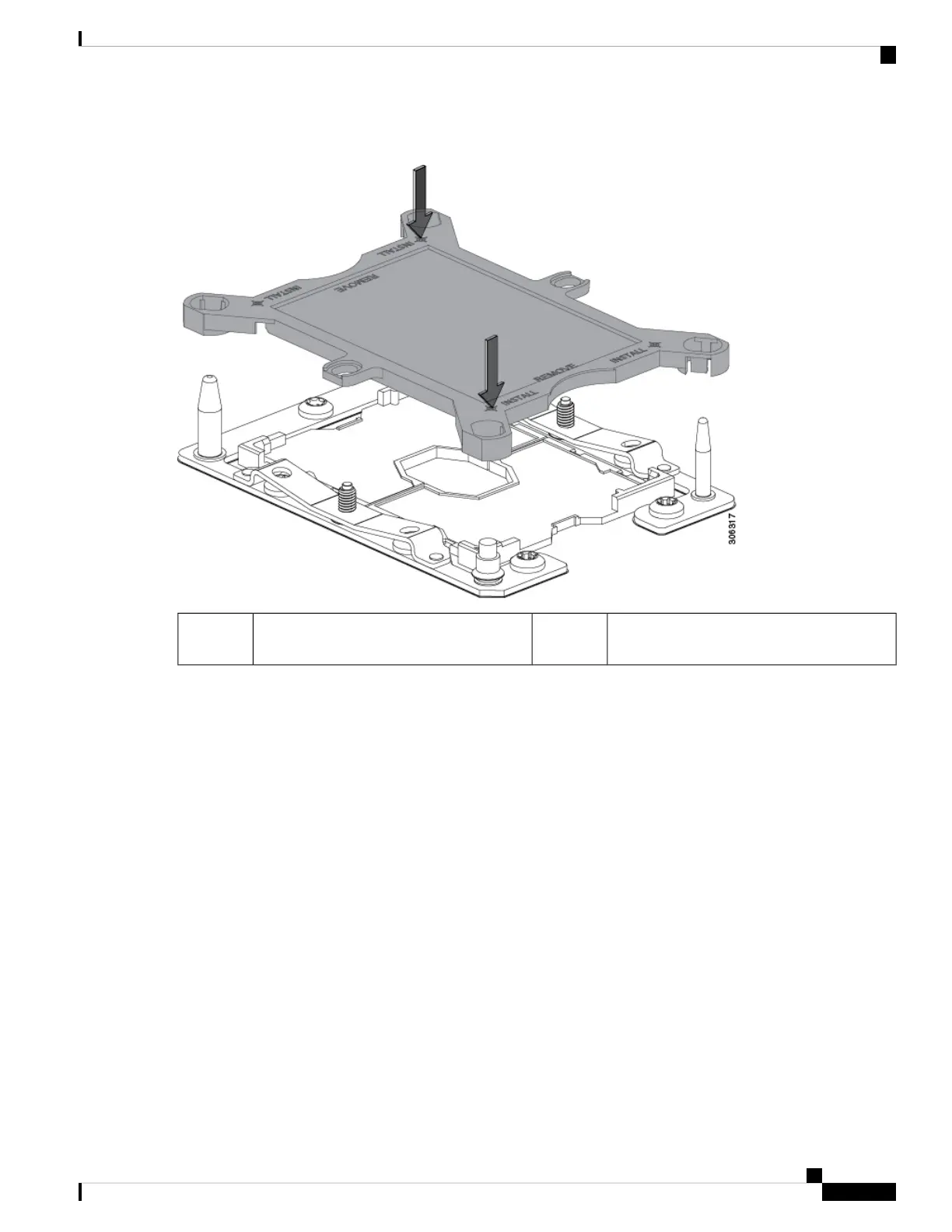

a) On the new board, align the assembly over the CPU socket, as shown below.
Note the alignment features. The pin 1 angled corner on the heatsink must align with the pin 1 angled corner on the
CPU socket. The CPU-socket posts must align with the guide-holes in the assembly.
Cisco APIC M3/L3 Server Installation and Service Guide
57
Maintaining the Server
Moving an M5 Generation CPU

Cisco APIC M3 Specifications

General

Product Type	Application Policy Infrastructure Controller
Model	APIC-M3
Form Factor	Rack-mountable
CPU Clock Speed	2.2 GHz
Power Supply	Dual redundant
Processor	Intel Xeon
Memory	64 GB
Management Port	1 x 1 Gigabit Ethernet
Power Supply Capacity	770W
Management	Cisco APIC
Operating System	Cisco APIC Software
Weight	35 lb (15.9 kg)
