Service Headers and Jumpers
This server includes two blocks of headers (J38, J39) that you can jumper for certain service and debug
functions.

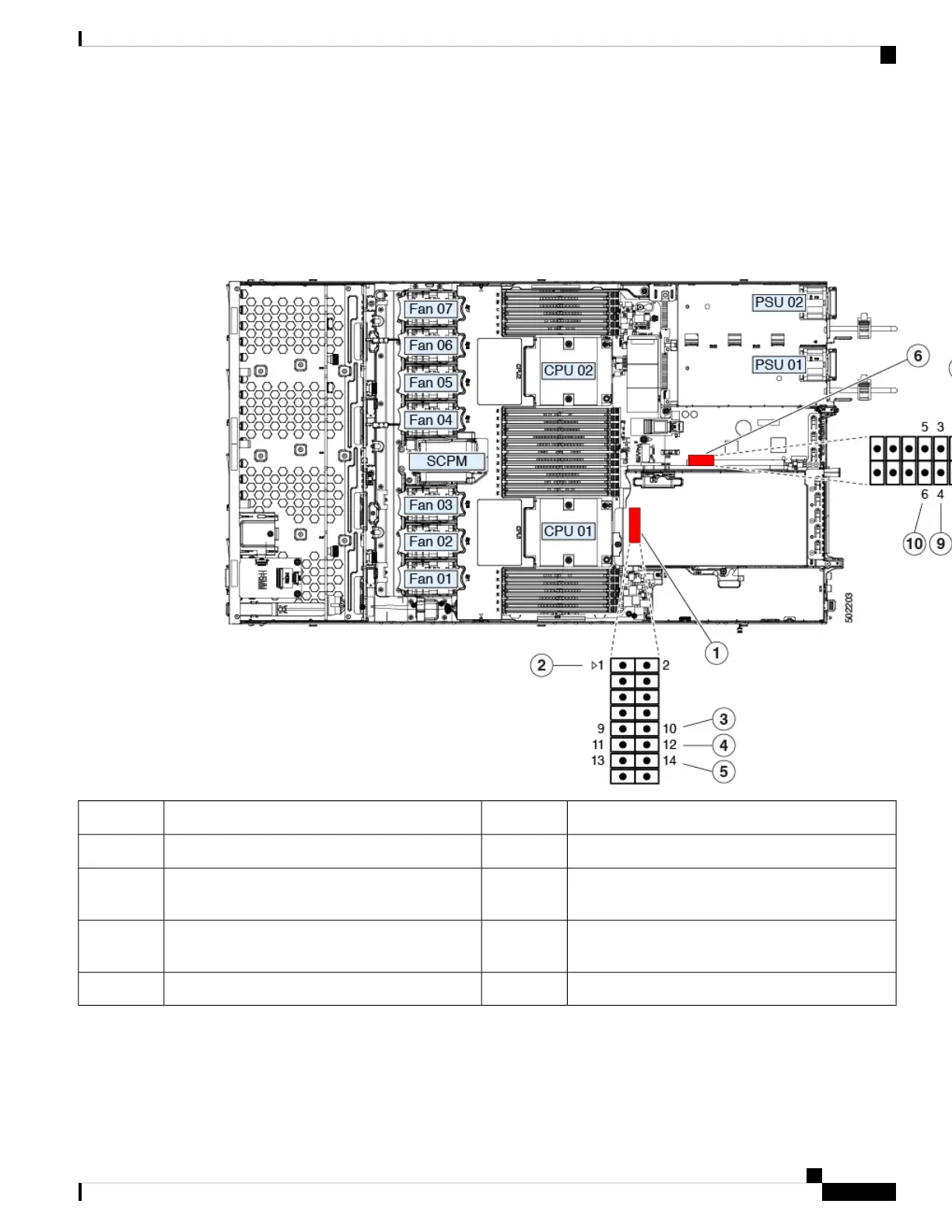

Figure 44: Location of Service Header Blocks J38 and J39
Location of header block J396Location of header block J381
J39 pin 1 arrow printed on motherboard7J38 pin 1 arrow printed on motherboard2
Boot Cisco IMC from alternate image: J39 pins 1 -
2
8Clear CMOS: J38 pins 9 - 103
Reset Cisco IMC password to default: J39 pins 3 -
4
9Recover BIOS: J38 pins 11 - 124
Reset Cisco IMC to defaults: J39 pins 5 - 610Clear password: J38 pins 13 - 145
Cisco APIC M3/L3 Server Installation and Service Guide
85
Maintaining the Server
Service Headers and Jumpers
