See Rack-Mounting and Air Flow Clearance Guidelines, on page 19 for details on air-flow clearance
requirements for installation in an enclosed 4-post rack.
Note

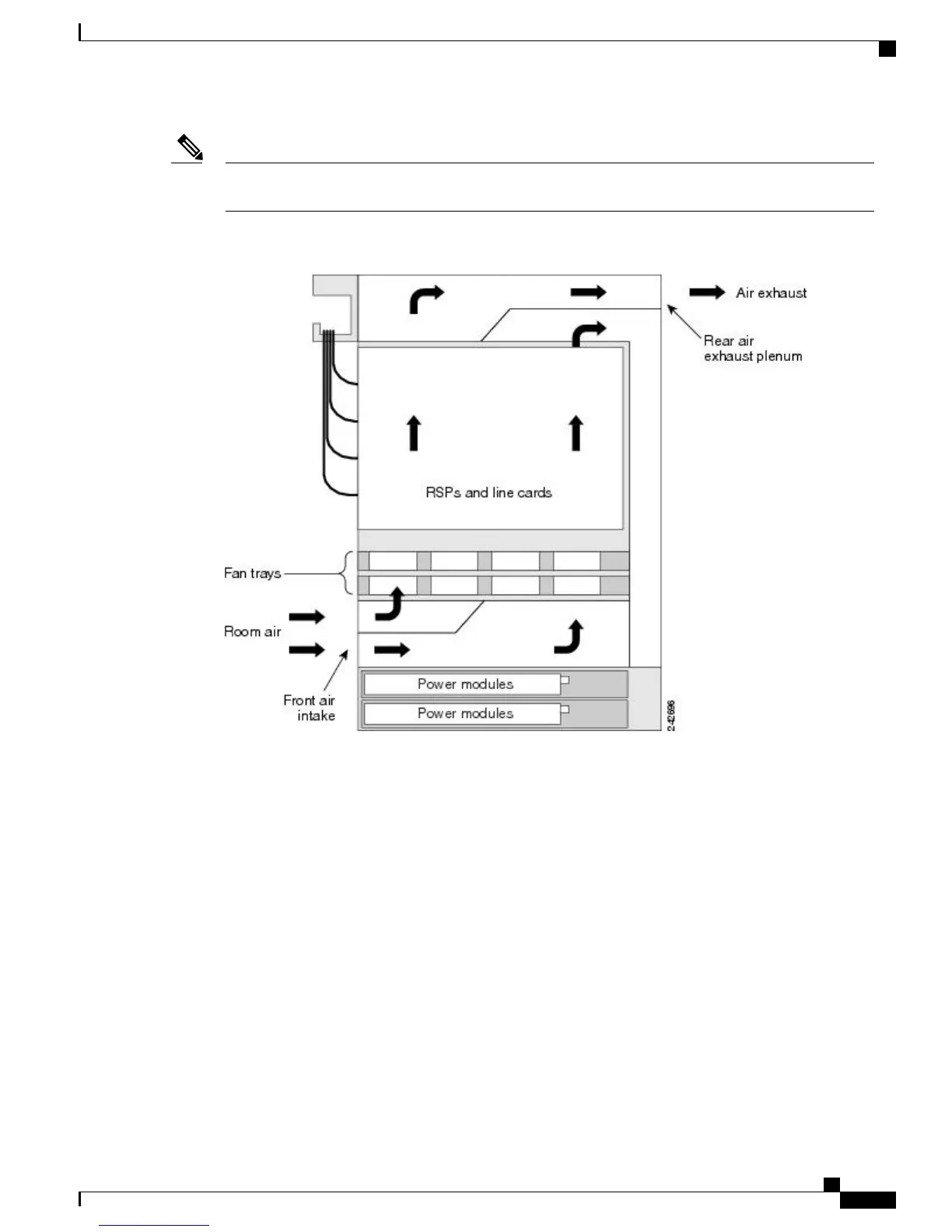

Figure 8: Air Flow Path through the Cisco ASR 9010 Router — Side View
Figure 9: Air Flow Path through the Cisco ASR 9006 Router — Front View
Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide
15
Preparing for Installation
Site Requirement Guidelines
