• Autonegotiation of port speed (10/100/1000) and duplex (full/half) is supported. Autonegotiation cannot
be disabled.
The following table lists the signals used on the Management LAN ports.
Table 6: RP Management LAN Port Signals
1000Base-T Signal10Base-T, 100Base-TX SignalMGT LAN Port Pin
BI_DA+Transmit+1
BI_DA–Transmit–2
BI_DB+Receive+3
BI_DC+—4
BI_DC–—5
BI_DB–Receive–6
BI_DD+—7
BI_DD–—8
Management LAN Port LED Indicators
The Management LAN connectors have integral LED indicators (see the following figure). When lit, these
LEDs indicate:
• Green (LINK)—Connection is alive.
• Amber (ACT)—Connection is active.

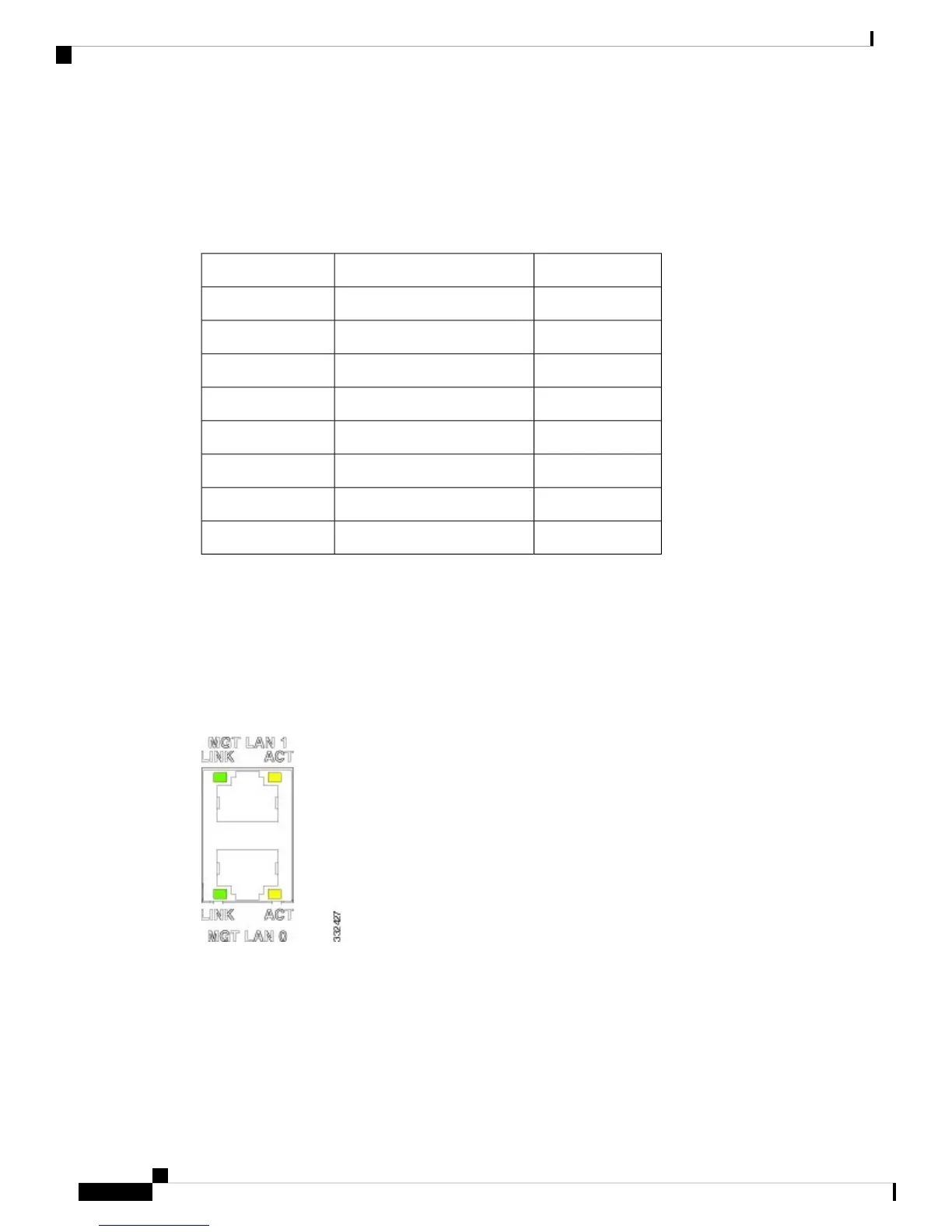

Figure 55: RP Management LAN Port LED Indicators
Management LAN RJ-45 Cabling
When connecting the RJ-45 port to a hub, repeater, or switch, use the straight-through cable pinout shown in
the following figure.
Preparing for Installation
40
Preparing for Installation
Management LAN Port LED Indicators

Cisco ASR 9001 Specifications

General

Router Series	ASR 9000 Series
Rack Units	2 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Power Supply	AC or DC
Memory	8 GB
Forwarding Capacity	Up to 80 Gbps
Switching Capacity	160 Gbps
Operating Temperature	0 to 40°C
Weight	24 lb
Redundancy	Power supply
