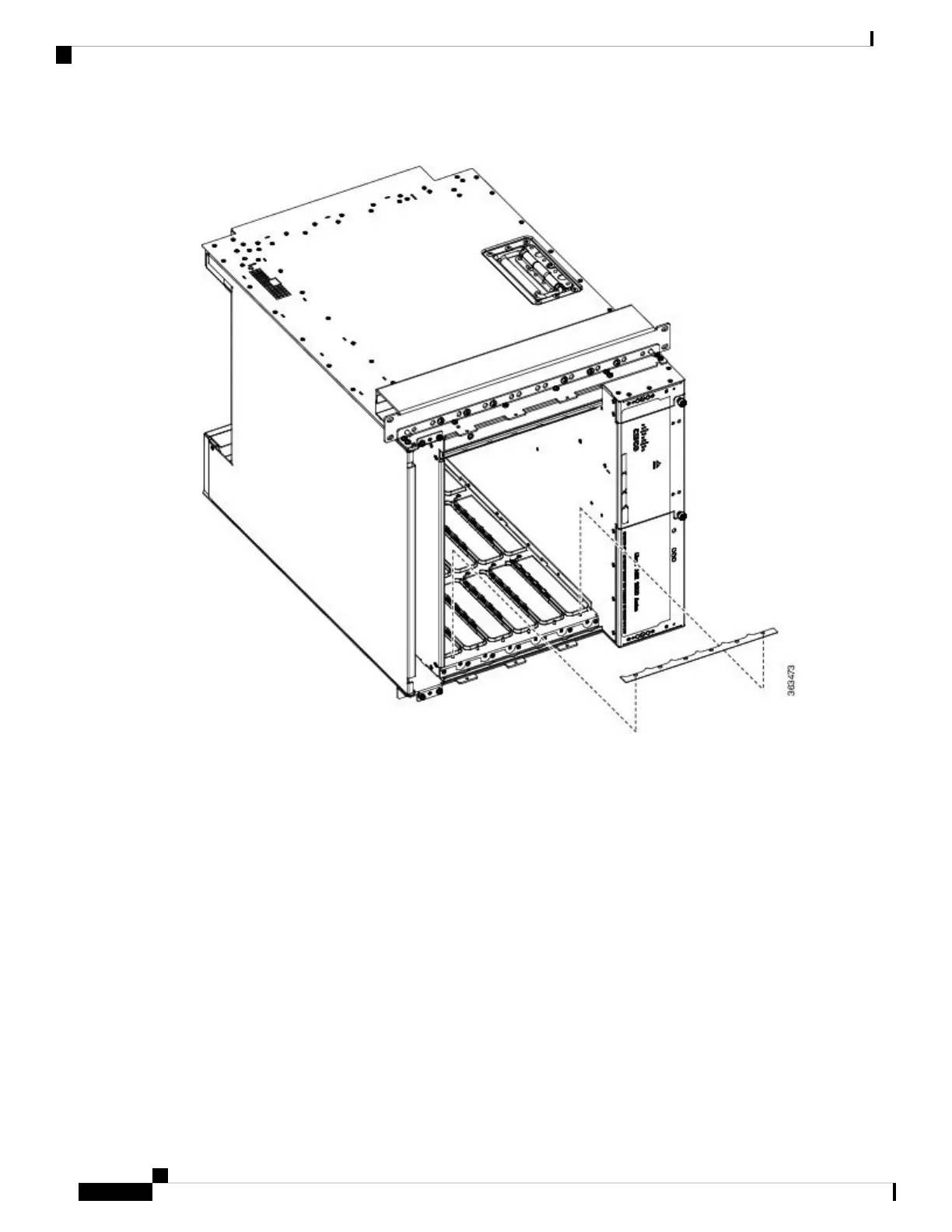

Figure 81: Attaching Plastic Glide Strip to Chassis
Step 3 Install the plenum in the rack. Insert and tighten four customer-supplied screws to secure the plenum to the
front of the rack-post (two on each side). These screws can vary in size and type depending on the rack that
you use. Torque the screws to the weight specified for your particular rack. See Figure 82: Plenum with
Pre-Installed Front Mounting Brackets, on page 83 and Figure 83: Installing the Plenum in a Two-Post 19-Inch
Rack, on page 84.
Unpacking and Installing the Chassis
82
Unpacking and Installing the Chassis
