Cisco ASR-920-12SZ-IM User Manual

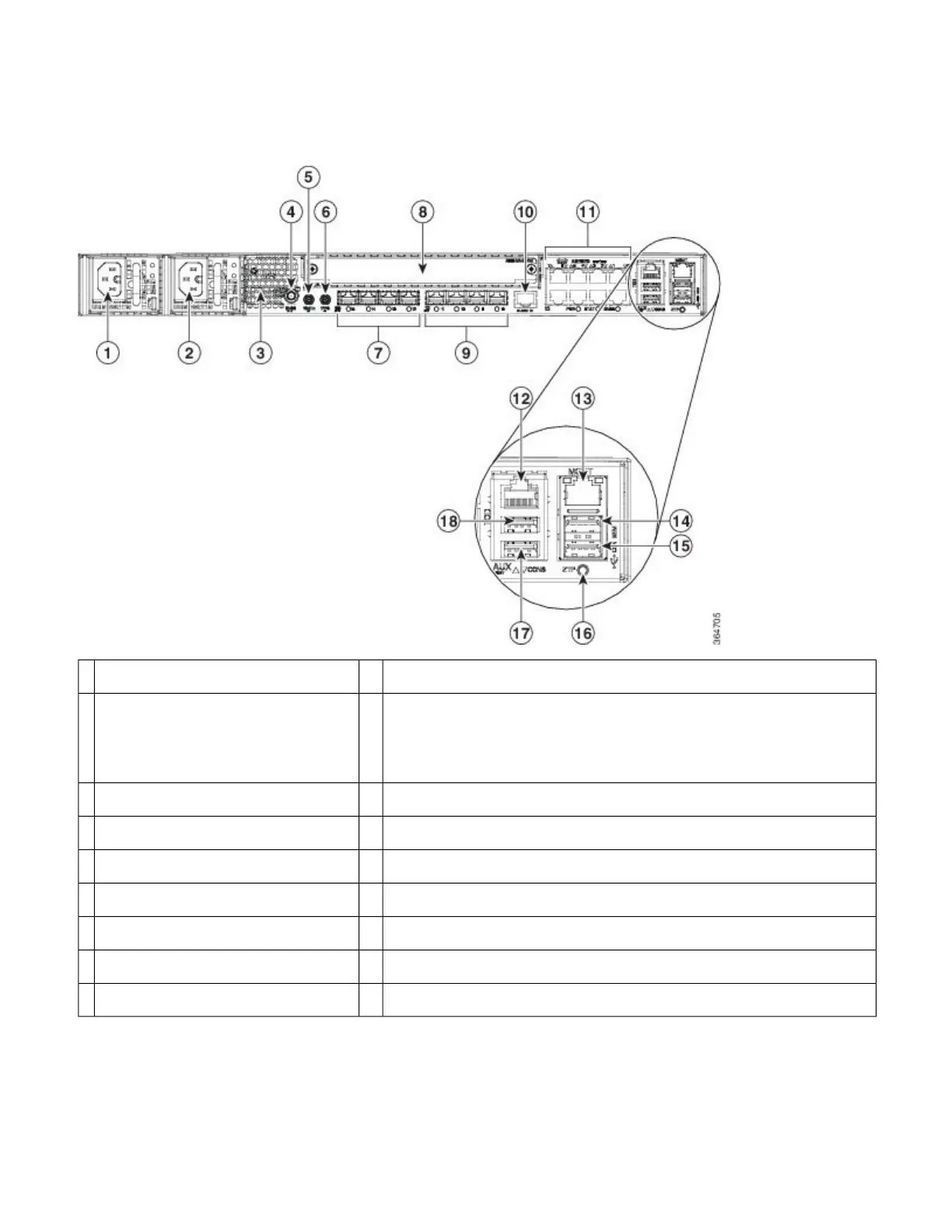

Figure 2: Front Panel of Cisco ASR-920-12SZ-IM Router—With AC Power Supply
Alarm port10Power Supply 0 (AC or DC)1
Eight Copper port (1G PoE)
Port 0 is located at the bottom right, port 1 is located at the top right,
and so on.
Note
11Power Supply 1 (AC or DC)2
ToD port12Front Air-Inlet Area3
Management Port13GNSS RF IN (SMA threaded connector)4
USB Memory port14DIN 1.0/2.3 Snap-in connector (10MHZ)5
USB Console port15DIN 1.0/2.3 Snap-in connector (1PPS)6
Zero Touch Provisioning button16Four 1G/10G SFP+7
RS232 Console port17Interface Module8
RS232 Aux Console port18Four 1G SFP9
3

Cisco ASR-920-12SZ-IM Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Networking standards	IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000, 10000 Mbit/s
USB ports quantity	2
Ethernet LAN (RJ-45) ports	8
Product color	Gray
Rack capacity	1U
Antenna type	Not supported
AC input voltage	100 - 240 V
Power source type	AC, DC, PoE
AC input frequency	50 - 60 Hz
Power consumption (typical)	130 W
Non-operating altitude	0 - 4570 m
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
Safety	UL 60950-1, 2005, CAN/CSA C22.2 No. 60950-1: 2005, IEC 60950-1, 2005, EN 60950-1, 2005, AS/NZS 60950.1:2005
Electromagnetic compatibility	FCC CFR47 Part 15 Class A
Mean time between failures (MTBF)	407230 h
Firewall	-
Security algorithms	IPSec

Weight and Dimensions

Depth	286.54 mm
Width	444.5 mm
Height	44 mm
Weight	4830 g
