Step 5
If necessary, reconfigure and restart the router or target device.
Installing the Chassis Ground Connection
Before you connect the power or turn on the power to the Cisco ASR-920-24SZ-IM Router, you must provide
an adequate chassis ground (earth) connection to your router.
This section describes how to ground the Cisco ASR-920-24SZ-IM Router chassis. The grounding lug location
is on the back panel of the router.
Ensure that the grounding lug wire does not cover the fan opening.Tip

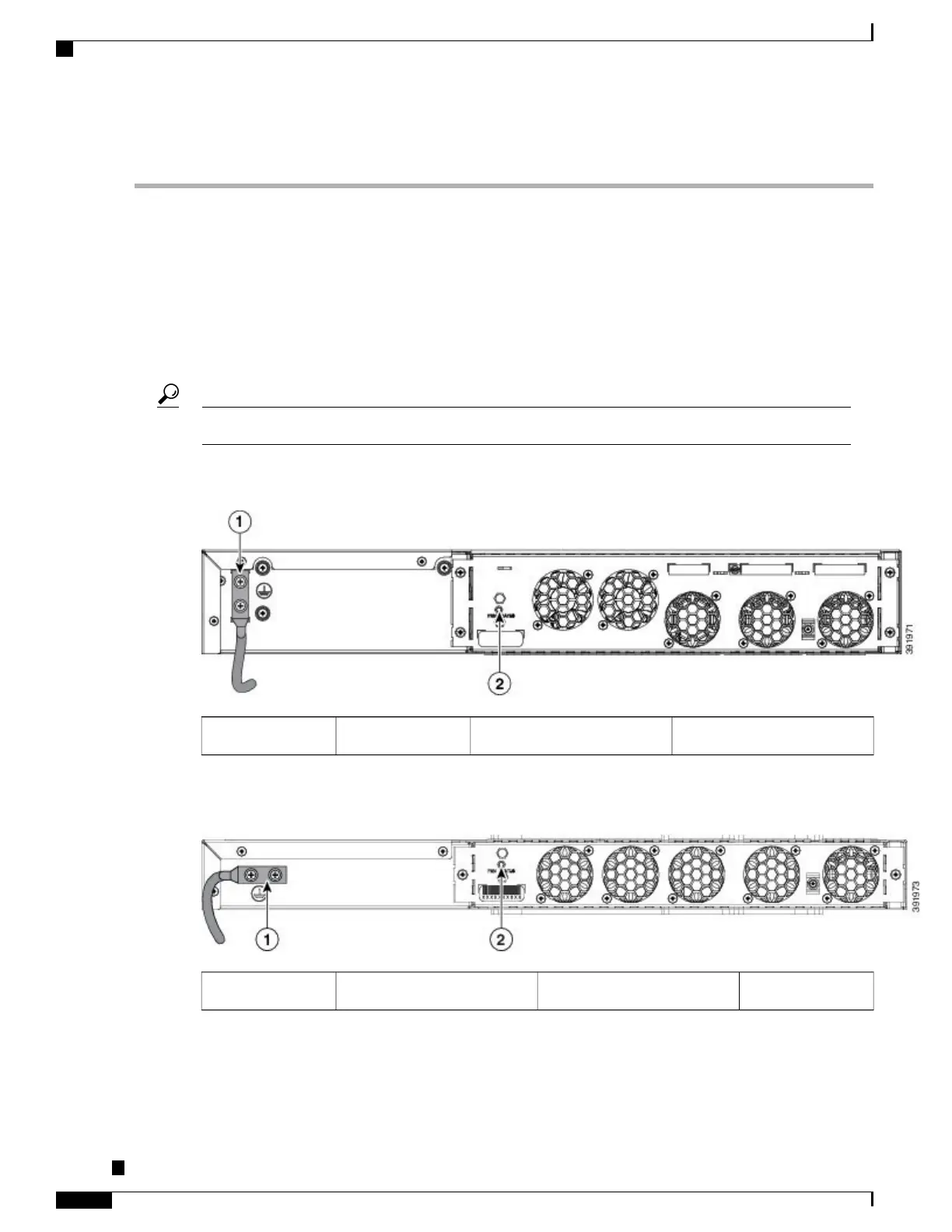

Figure 46: Attaching a Grounding Lug to the Rear of the Cisco ASR-920-24SZ-IM Router
Fan status LED2Grounding lugs1
Figure 47: Attaching a Grounding Lug to the Rear of the Cisco ASR-920-24SZ-M, ASR-920-24TZ-M Router
Fan status LED2Grounding lugs1
To ensure that the chassis ground connection that you provide is adequate, you need the following parts and
tools:
Cisco ASR-920-24SZ-IM, ASR-920-24SZ-M, ASR-920-24TZ-M Aggregation Services Router Hardware Installation
Guide
98
Installing the Router
Installing the Chassis Ground Connection
