The following figures show how to attach the brackets at the front, middle, and rear positions on the Cisco
ASR-920-24SZ-M, ASR-920-24TZ-M Router for a 19-inch EIA rack.

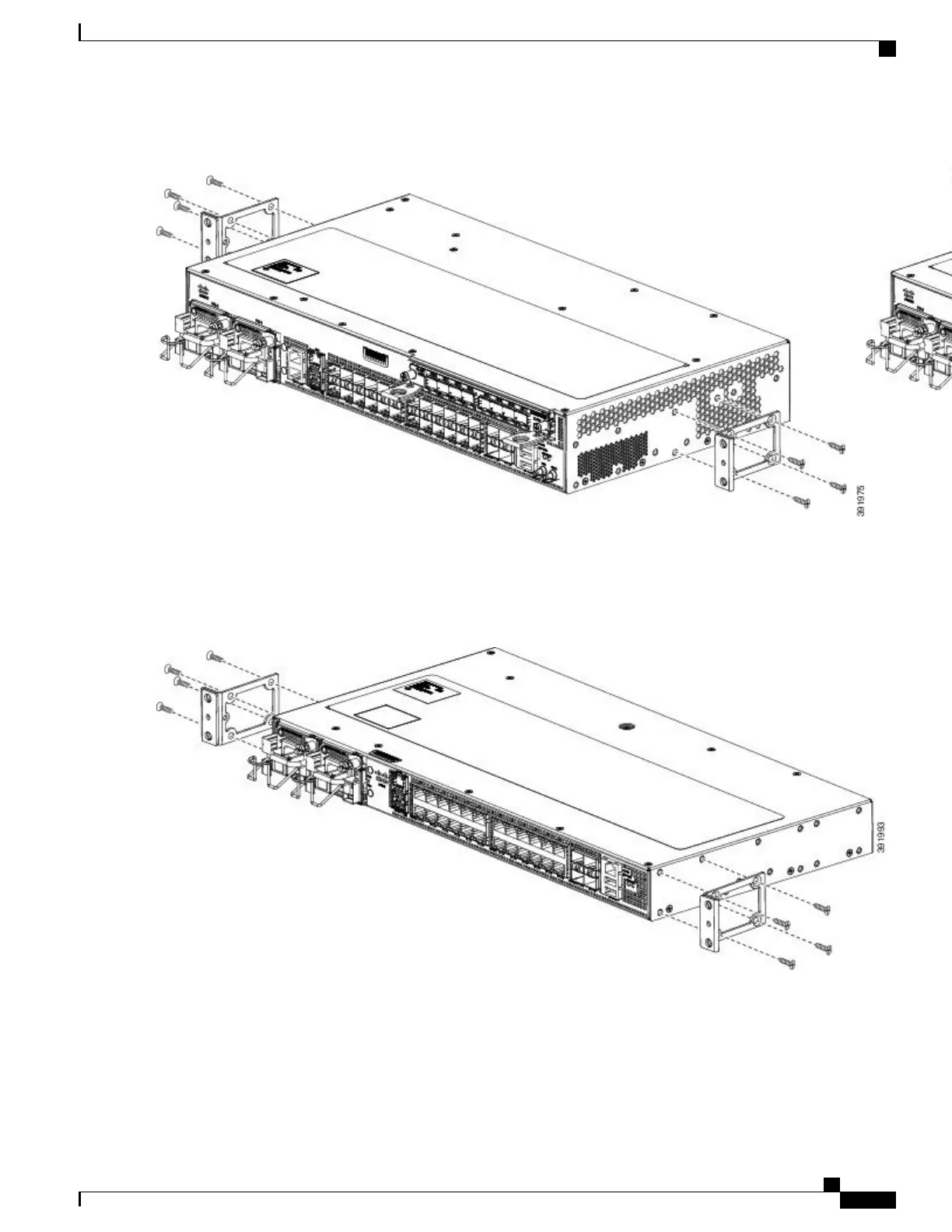

Figure 15: Attaching Mounting Brackets to Cisco ASR-920-24SZ-M, ASR-920-24TZ-M Router for a 19-inch EIA Rack (Front, Middle,
and Rear Positions)
Cisco ASR-920-24SZ-IM, ASR-920-24SZ-M, ASR-920-24TZ-M Aggregation Services Router Hardware Installation
Guide
51
Installing the Router
Installing the Chassis Brackets
