The DC connector or terminal block has an inbuilt screw and cage nut to which a torque of 1.3 to 1.8 N-m
can be applied.
Note

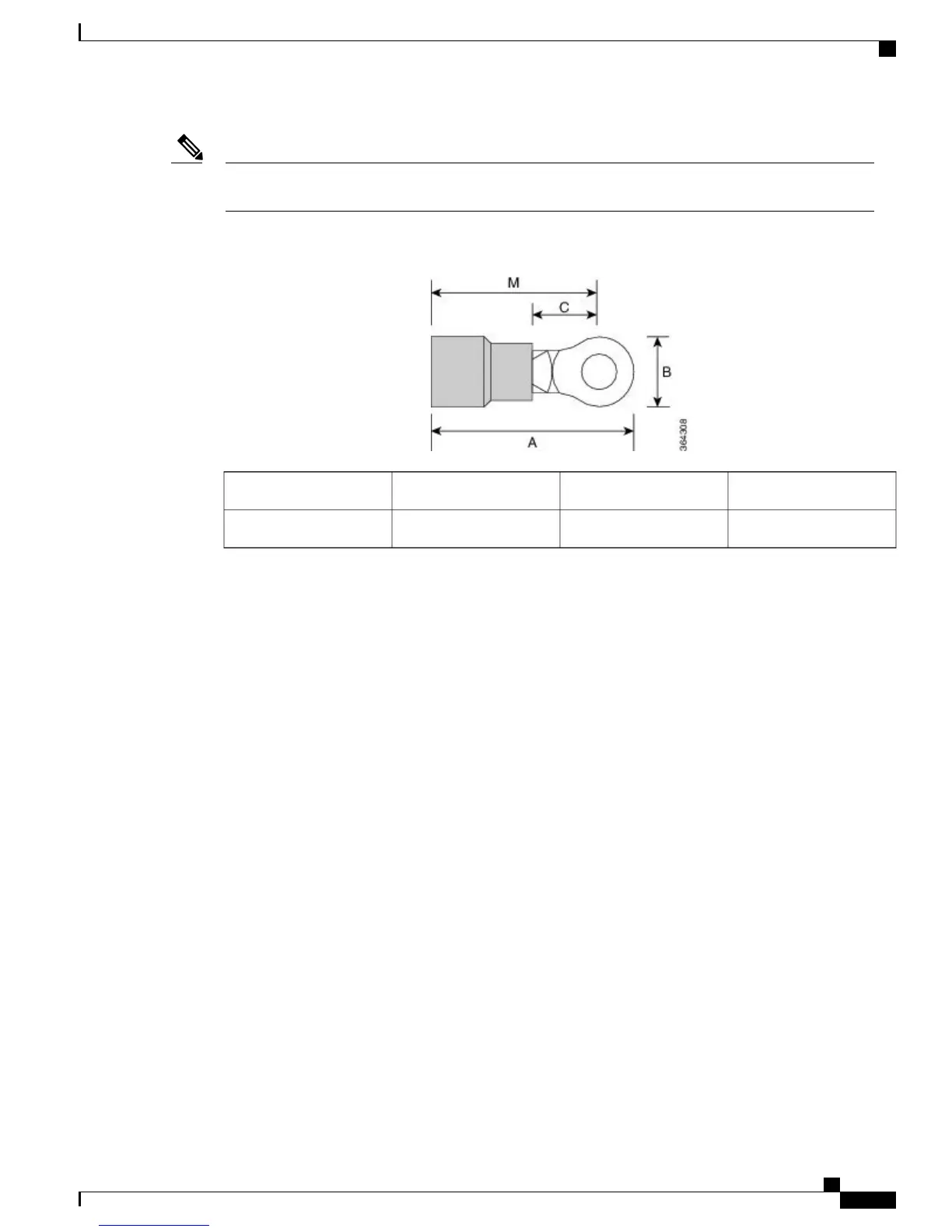

Figure 14: DC Connector With Inbuilt Screw
0.27 inchesC0.97 inchesA
0.81 inchesM0.31 inchesB
To attach the DC power supplies:
SUMMARY STEPS
1.
Open the DC power supply guard.
2.
Attach the DC supply wires in the designated screws. See the figure below.
3.
Close the DC power supply guard.
Cisco ASR 920 Series Aggregation Services Router Hardware Installation Guide
17
Installing the Cisco ASR 920 Series Router
Install the DC Power Supply
