Cisco ASR 920 series

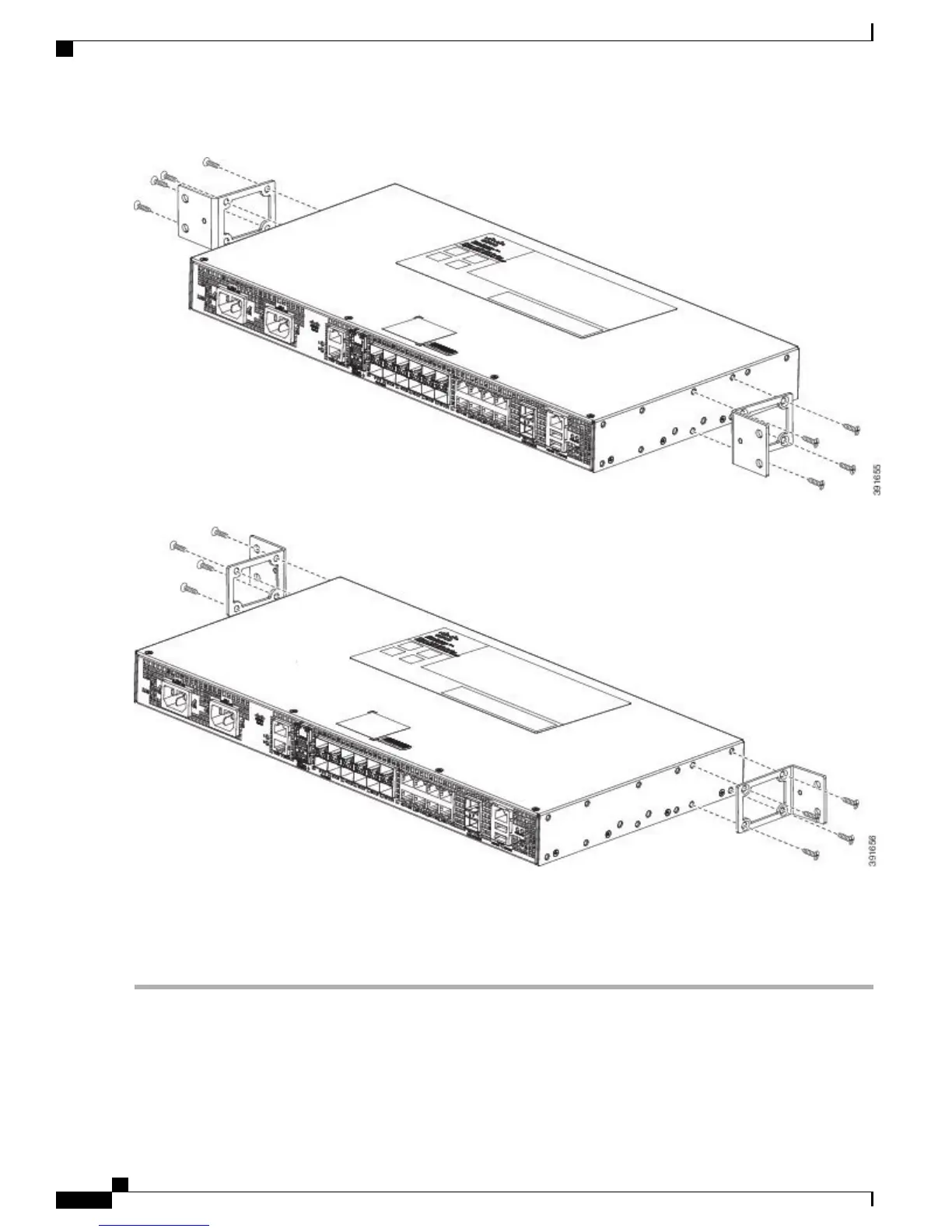

Step 2
Position one of the brackets against the chassis side, and align the screw holes.
Step 3
Secure the bracket to the chassis with the screws removed when performing Step 1 . The recommended maximum torque
is 10 in.-lb.
Step 4
Repeat Step 2 and Step 3 for the other bracket.
Cisco ASR 920 Series Aggregation Services Router Hardware Installation Guide
6
Installing the Cisco ASR 920 Series Router
Installing the Chassis Brackets
